Overview

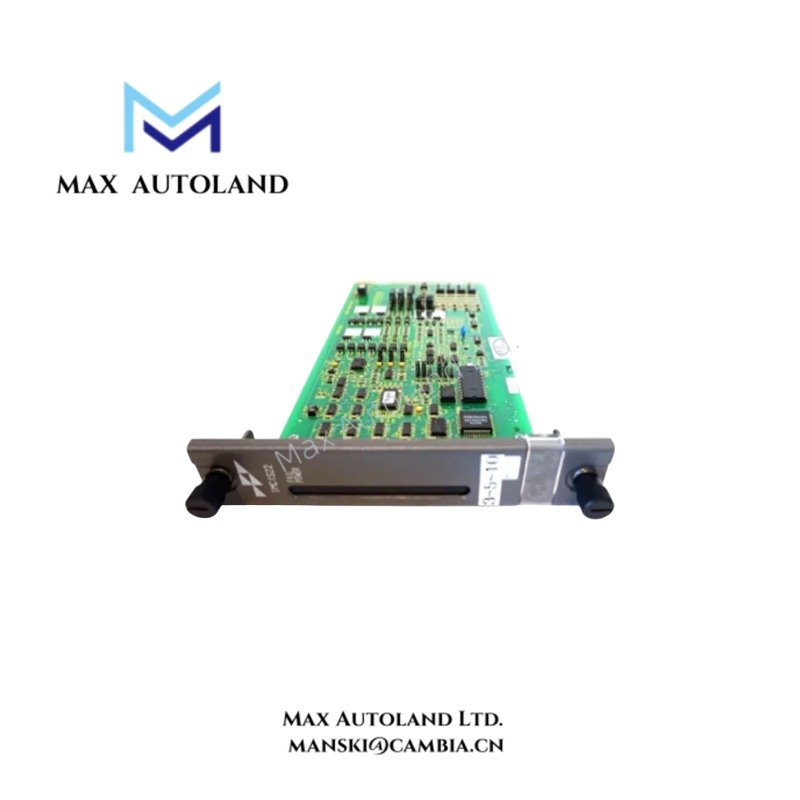

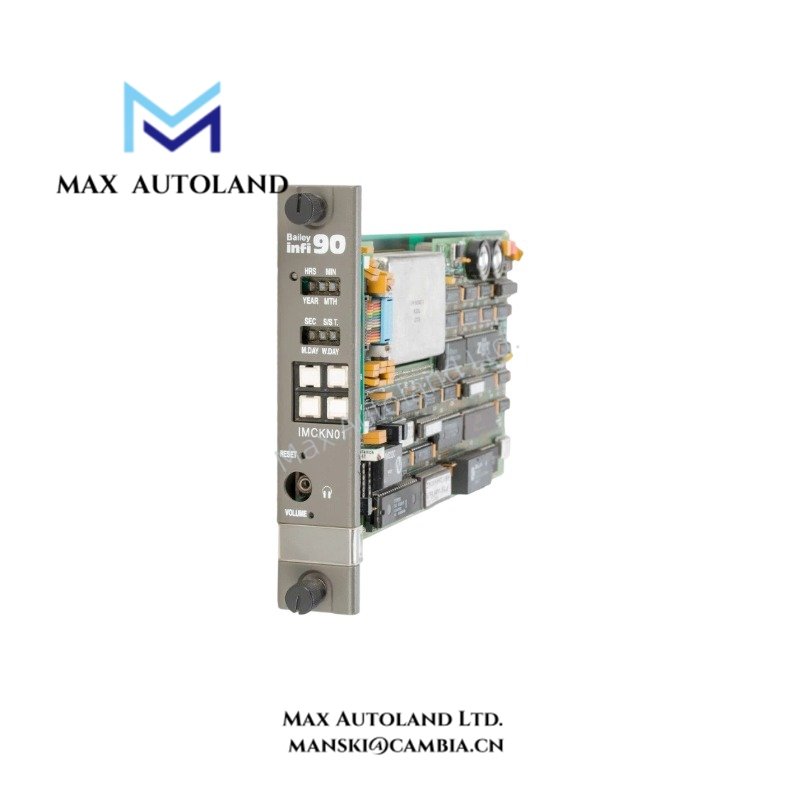

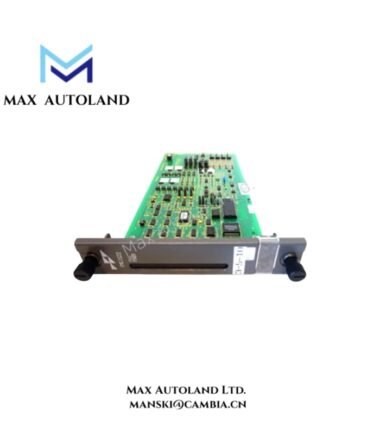

The ABB IMCKN01 is a Bailey Infi 90 Clock Network Module designed for clock network functions within an industrial control system. It is identified as a clock network module, with a specified 24 VDC supply and power consumption of 8-15 W. These parameters help maintenance and procurement teams identify the module and check its electrical and environmental requirements before replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IMCKN01 |
| Brand | ABB |
| Product Type | Clock Network Module |
| System | Bailey Infi 90 |
| Supply Voltage | 24 VDC |
| Power Consumption | 8-15 W |
| Operating Temperature | 0 to 60 deg C |
| Storage Temperature | -40 to 70 deg C |
| Humidity | 5-95% RH, non-condensing |
| Country of Origin | Sweden |
| Estimated Shipping Size | 7.6 x 17.8 x 33.0 cm |
| Weight | 0.7 kg |
| HS Code | 8537101190 |
Clock Network Function
The IMCKN01 is identified for clock network functions in the Bailey Infi 90 control system. Clock network components support time-related coordination between system elements. However, the specific synchronization method, supported interfaces, and network topology for this model require confirmation from model-specific technical documentation.
Electrical and Environmental Requirements
The specified 24 VDC supply and 8-15 W power consumption provide initial checks for electrical planning. Before installing a replacement, verify the required supply connection and power capacity against the existing system configuration.
The operating and storage temperature ranges describe different conditions. The operating range applies during use, while the storage range applies when the module is not operating. The humidity specification requires non-condensing conditions.
Frequently Asked Questions
Q: What is the ABB IMCKN01?
A: The IMCKN01 is a Bailey Infi 90 Clock Network Module. Its exact clock synchronization functions and network interfaces should be confirmed using model-specific documentation.
Q: What power supply does the IMCKN01 require?
A: The supplied specifications list a 24 VDC supply and power consumption of 8-15 W. Confirm the applicable power requirements before connecting the module.
Q: What should I check before replacing an IMCKN01?
A: Verify the complete model number, system configuration, electrical connections, and clock network requirements. Do not assume compatibility with another module based solely on its appearance or product family.
