Overview

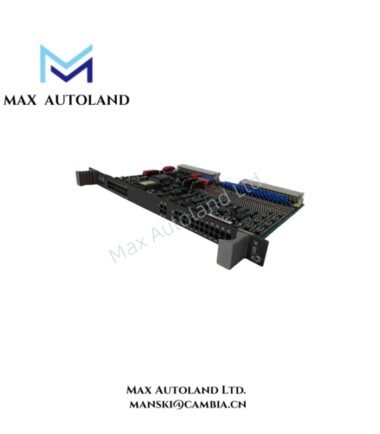

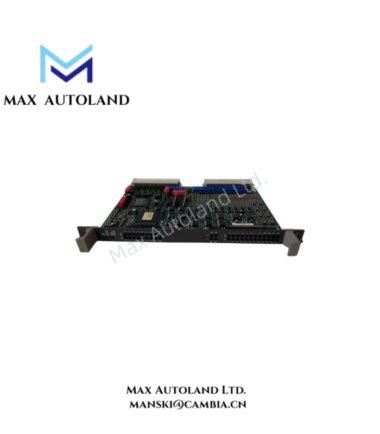

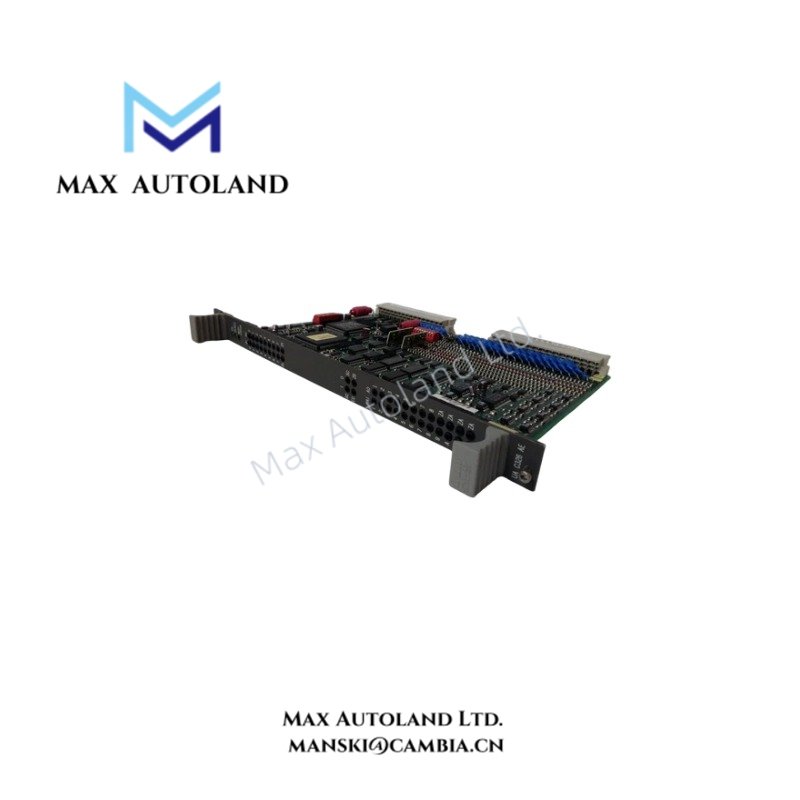

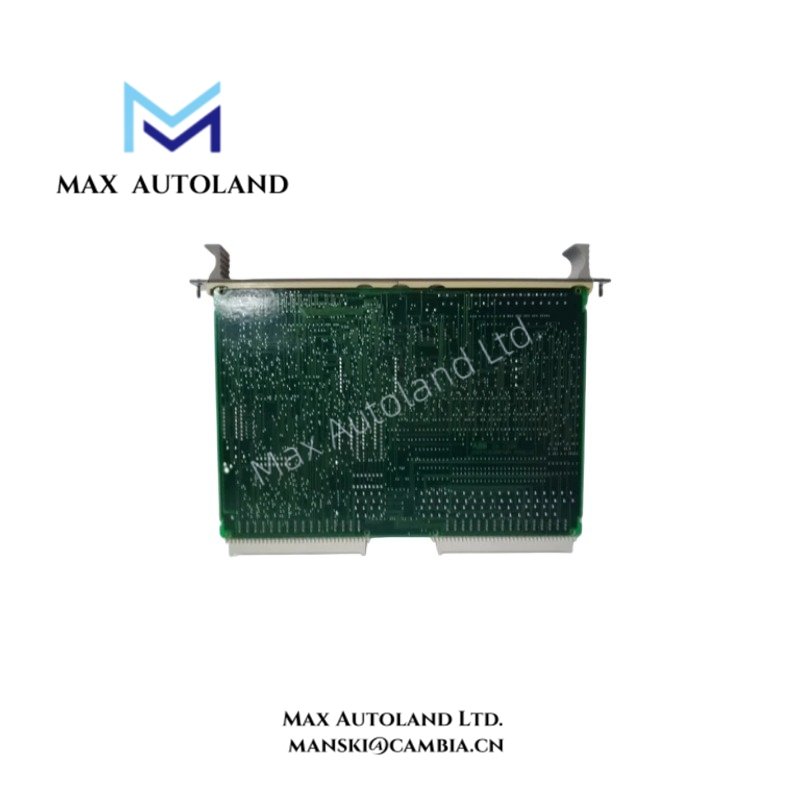

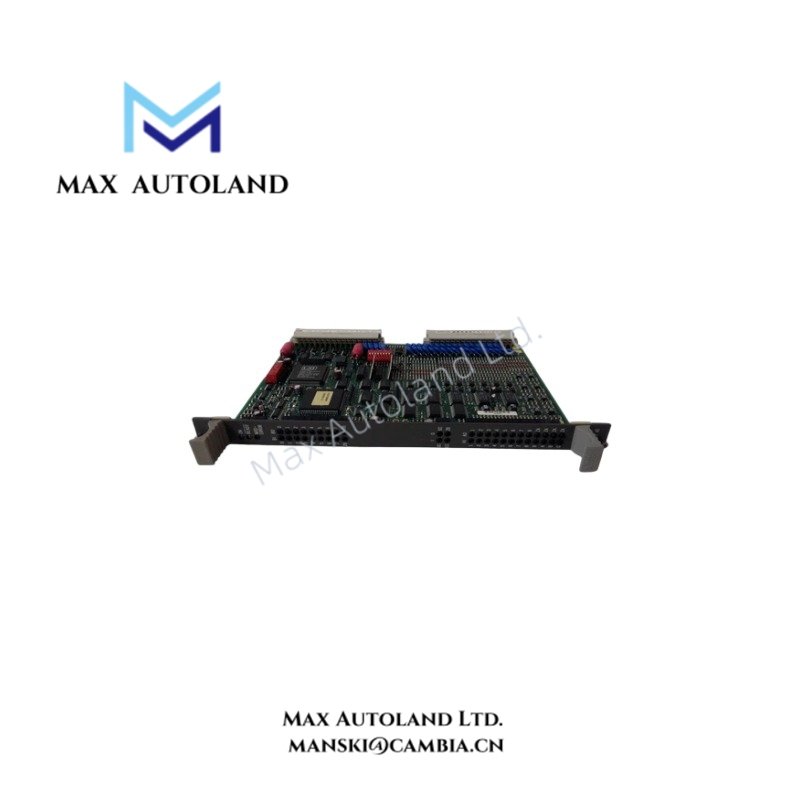

The ABB HIEE401481R0001, designated UA C326 AE01, is an analog/digital input/output (I/O) card for industrial control systems. It provides an interface for handling analog and digital signals between control hardware and connected field devices. The supplied product data identifies it as a new part originating from Switzerland. Channel count, signal ranges, electrical ratings, and interface details require confirmation before system configuration or replacement.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | HIEE401481R0001 |
| ABB Type Designation | UA C326 AE01 |
| Brand | ABB |
| Product Type | Analog/Digital I/O Card |
| Function | Analog and digital signal input/output |
| Country of Origin | Switzerland |
| Customs Tariff Number | 85371092 |
| Product Net Weight | 0.35 kg |
| Gross Weight | 0.45 kg |
| Product Net Dimensions (D x H x W) | 29 x 29 x 29 mm |
| Part Condition | New |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Made to Order | No |
| Stocked At | Baden, Switzerland |
Signal Processing and Control Interface
The UA C326 AE01 is identified as an analog/digital I/O card. Analog I/O handles continuously varying electrical signals, while digital I/O handles discrete signal states. The specific input and output channel allocation for this model has not been confirmed, so the channel count and supported signal types should be checked before wiring or procurement.
Product Identification and Selection
Use the complete part number HIEE401481R0001 and designation UA C326 AE01 when requesting a quotation or checking an installed component. Confirm the board markings and system requirements against the existing hardware before ordering, particularly if the card will replace a failed unit.
The supplied data does not establish the supported controller family, connector arrangement, firmware requirements, or interchangeability with other cards. Do not assume compatibility based on the UA C326 designation alone.
Frequently Asked Questions
Q: What is the function of the ABB HIEE401481R0001?
A: It is identified as the UA C326 AE01 analog/digital I/O card. Its general role is to interface analog and digital signals with an industrial control system. The exact channel configuration remains unverified.
Q: What information is needed to confirm compatibility?
A: Check the installed card’s full part number, hardware revision, controller platform, connector layout, and required signal types. Confirm the electrical specifications and system compatibility before installing a replacement.
Q: What is the country of origin and listed net weight?
A: The supplied product data lists Switzerland as the country of origin and 0.35 kg as the net weight. The gross weight is 0.45 kg.
