Overview

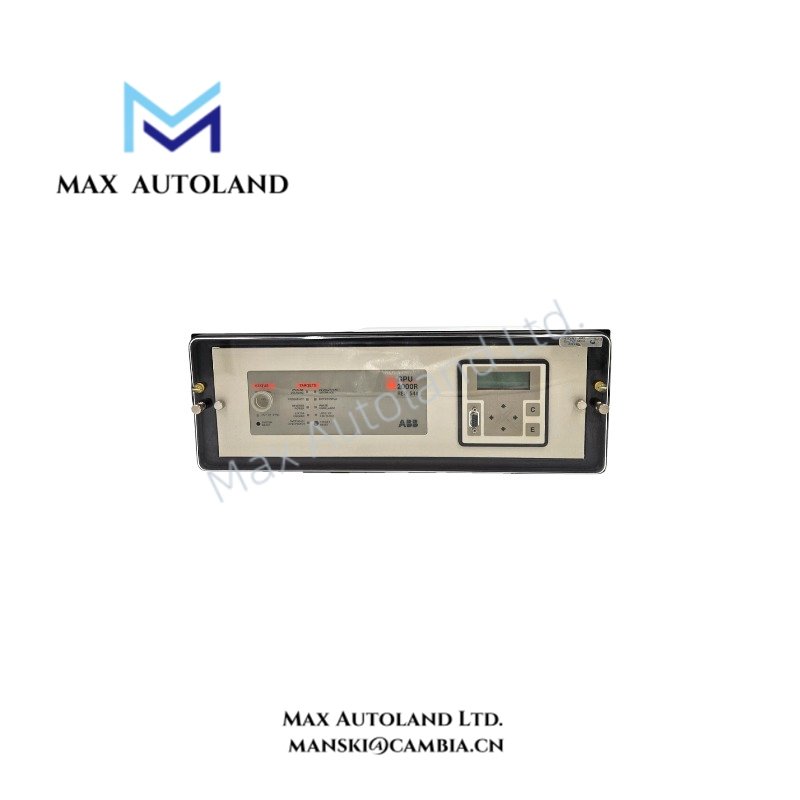

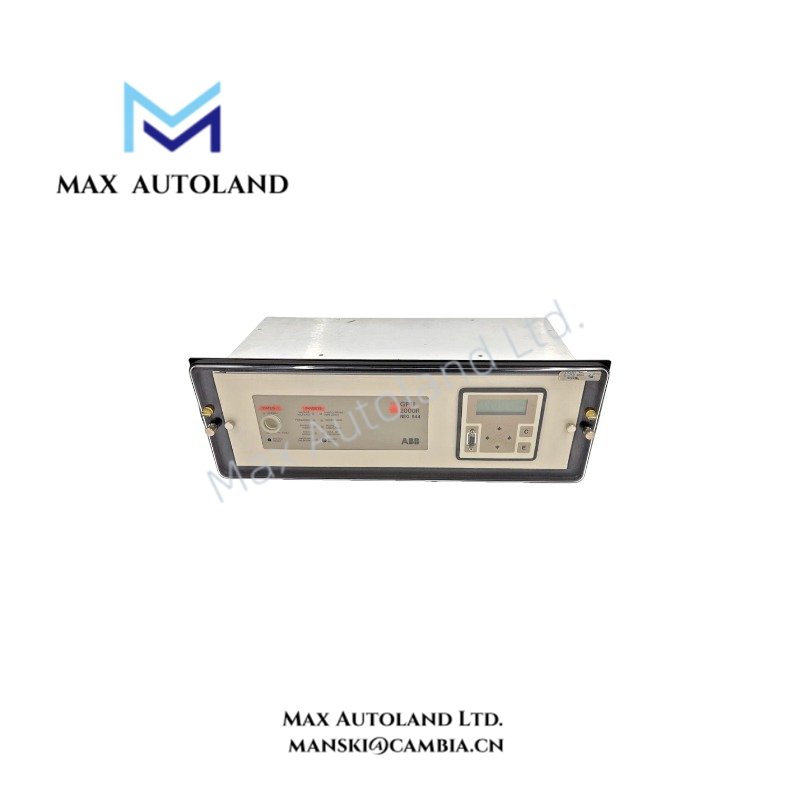

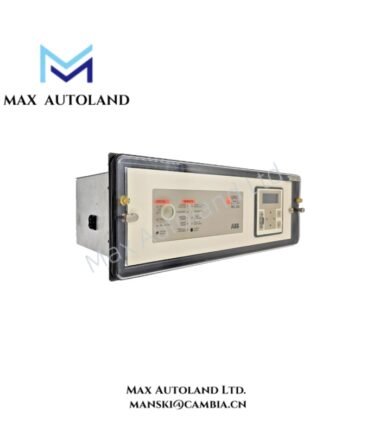

The ABB GPU2000R, also identified in the supplied description as the GPU2000R Generator Protection Unit, processes generator electrical measurements to execute protection functions, record faults and operating events, and support local and remote monitoring. The unit uses three microprocessors, programmable inputs and outputs, and dedicated communication processing for simultaneous access through the front and rear ports.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | GPU2000R |
| Brand | ABB |
| Product Type | Generator Protection Unit |
| Protection Platform | 2000R Series |
| Processor Architecture | Three microprocessors |
| Programmable Inputs | 8 |
| Programmable Outputs | 6 |
| Display | 4-line by 20-character LCD |
| Communication Ports | Electrically isolated front and rear communication ports |
| Communication Processing | Dedicated microprocessors support simultaneous front and rear port communication |
| Self-Diagnostics | Continuous self-diagnostics |
| Protection Functions | Multifunction generator protection |
| Reverse Power Protection | Sensitivity down to 0.2% of rated machine power, as stated in the supplied description |
| Loss-of-Excitation Protection | Mho-circle impedance element |
| Monitoring and Records | Metering, fault records, and operating records |
Generator Protection and Microprocessor Architecture
The GPU2000R executes generator protection functions using three microprocessors. Its programmable logic provides 8 inputs and 6 outputs for configured protection and control signals. The LCD provides access to measurements, records, testing functions, and settings.
The documented protection characteristics include reverse power protection with sensitivity down to 0.2% of rated machine power and loss-of-excitation detection using a mho-circle impedance element. The electrically isolated communication ports support remote communication, while dedicated processing permits simultaneous communication through the front and rear ports.
The supplied description identifies the GPU2000R as part of the 2000R relay family. It also discusses the 589T, 589V, and 589W series. These references do not establish that every function or rating of those relay models applies directly to the GPU2000R.
Frequently Asked Questions
Q: How many programmable logic inputs and outputs does the GPU2000R provide?
A: The supplied description specifies 8 programmable inputs and 6 programmable outputs.
Q: Can the GPU2000R communicate through its front and rear ports simultaneously?
A: Yes. The supplied description specifies dedicated microprocessors for simultaneous communication through the front and rear ports. The supported protocols and interface parameters are not provided.
Q: What method does the GPU2000R use for loss-of-excitation protection?
A: The supplied description identifies a mho-circle impedance element for the loss-of-excitation function. Detailed settings and operating characteristics require the applicable technical manual.
Field Installation Guidelines
- Verify the complete model designation and hardware configuration against the equipment nameplate and the applicable ABB documentation before installation.
- Confirm the rated auxiliary supply, current-transformer inputs, voltage-transformer inputs, terminal assignments, and grounding requirements using the device-specific wiring diagrams.
- Connect generator current and voltage measurement circuits according to the approved protection scheme. Verify CT polarity and secondary circuit continuity before commissioning.
- Route CT and VT wiring separately from high-noise power conductors where practicable. Apply the specified cable shielding and grounding arrangement.
- Connect communication cables to the designated front and rear ports. Confirm the supported electrical interfaces, protocol settings, and isolation requirements before energizing connected equipment.
- Check programmable input and output assignments against the protection logic and approved control drawings.
- Perform configuration verification, measurement checks, communication tests, and protection function tests before returning the generator to service.
- Do not assume hot-swap capability, auxiliary supply ratings, environmental limits, or terminal torque values without confirming the applicable hardware documentation.
