Overview

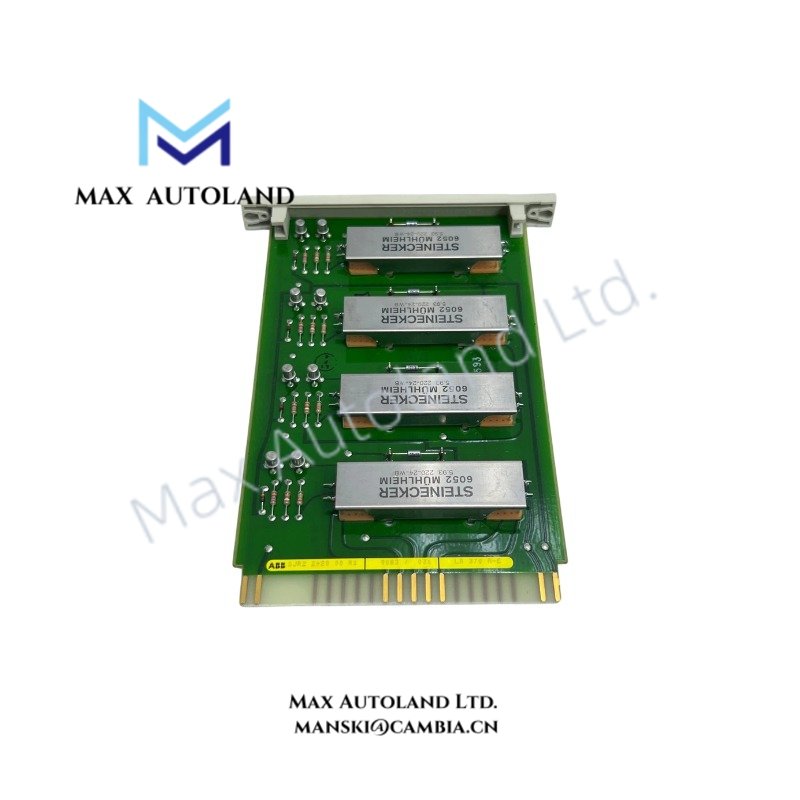

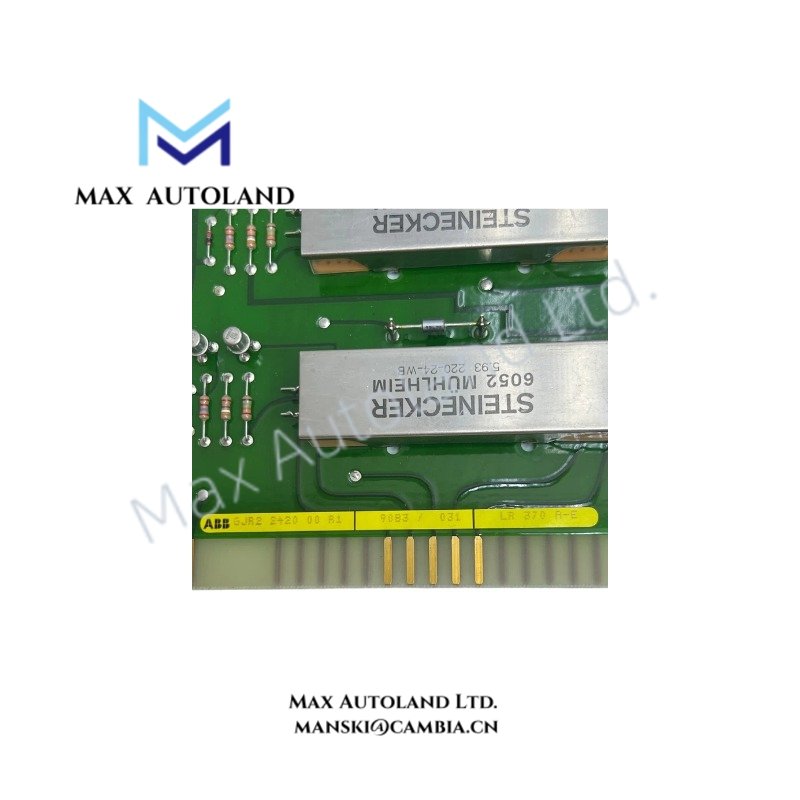

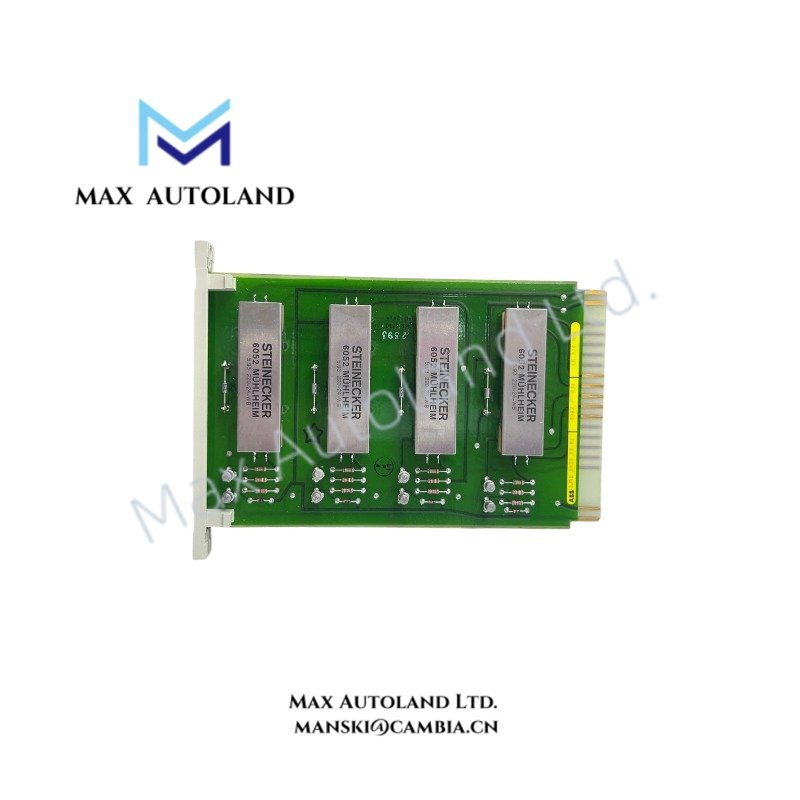

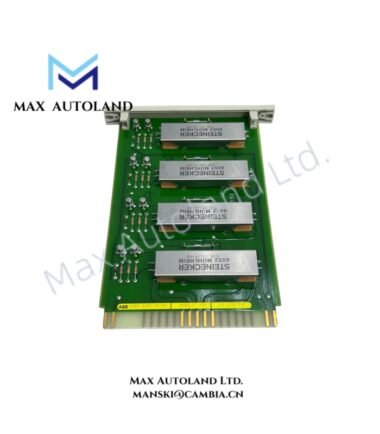

The ABB GJR2363100R2000, also cataloged as the GJR2363100R2000 Communication Module Board, operates as a dedicated hardware component for data exchange and remote bus interfacing within ABB industrial control platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ABB GJR2363100R2000 |
| Brand | ABB |
| Product Type | Communication Module Board / Controller Interface Module |
| Application | Industrial automation control systems and distributed I/O networks |
| System Compatibility | ABB automation platforms including AC800M and Procontrol related systems |
| Hardware Design | Modular PCB assembly for rack or panel integration |
| Communication Function | Remote bus communication and controller data exchange |
| Mounting Method | Internal system module installation |
ABB Industrial Communication and Backplane Interface Characteristics
The ABB GJR2363100R2000 provides communication interface functions between control processors and distributed system components. It supports structured data transfer through ABB industrial communication architectures while maintaining compatibility with modular control hardware.
The module operates within ABB control environments where backplane bus communication velocity and firmware flash compatibility define system integration performance. Therefore, engineering teams must verify hardware revision and controller firmware requirements before installation.
The board design supports industrial I/O density scaling by enabling connection between automation controllers and remote field modules. In addition, the PCB assembly requires proper grounding and signal routing practices to maintain communication integrity.
Frequently Asked Questions
Q: Does the ABB GJR2363100R2000 support direct field device connection?
A: The module functions as a communication and system interface component. Direct field signal termination depends on the connected ABB I/O hardware configuration.
Q: Can the module be replaced without checking firmware compatibility?
A: No. The installed hardware revision and controller firmware compatibility should be verified before replacement or system expansion.
Q: What installation factors affect communication performance?
A: Proper rack installation, grounding, cable separation, and compliance with ABB system wiring requirements affect communication operation.
Field Installation Guidelines
- Install the ABB GJR2363100R2000 according to the applicable ABB rack or panel mounting procedure.
- Verify connector alignment before inserting the module into the system backplane.
- Confirm grounding connections between the control cabinet, rack structure, and communication cable shields.
- Route communication cables separately from high-current power conductors to reduce electrical interference.
- Check controller firmware compatibility and hardware revision information before commissioning.
- Inspect PCB connectors and contact surfaces for contamination or mechanical damage before installation.
