Overview

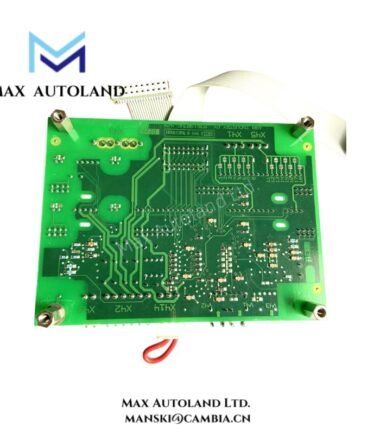

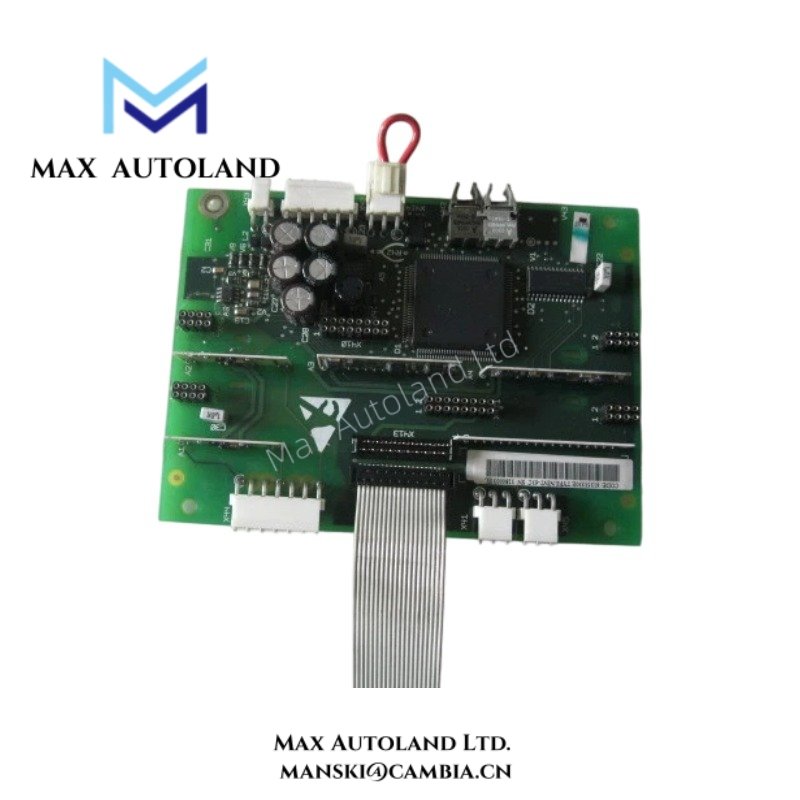

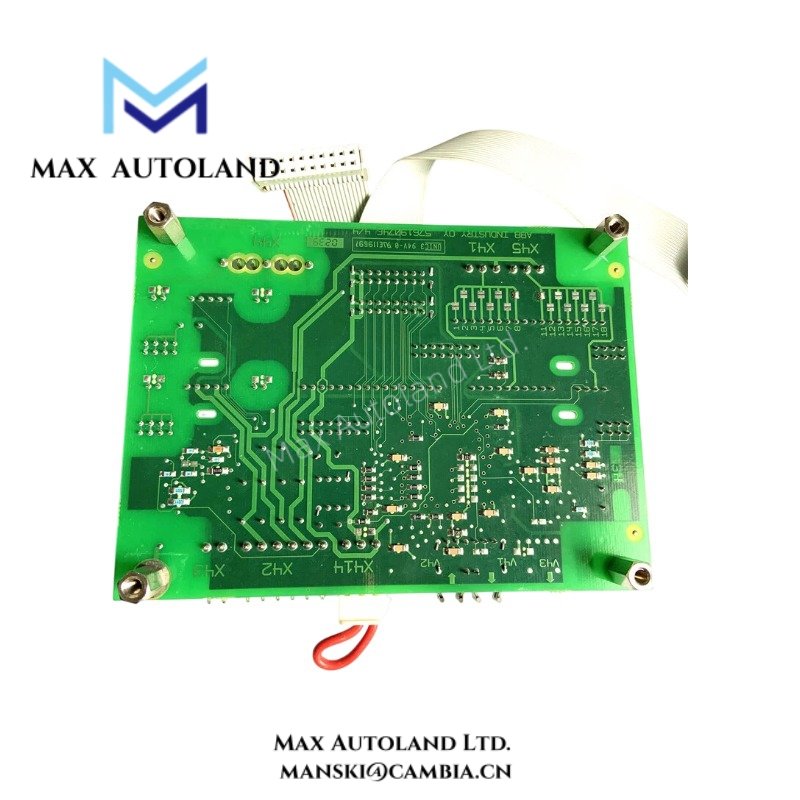

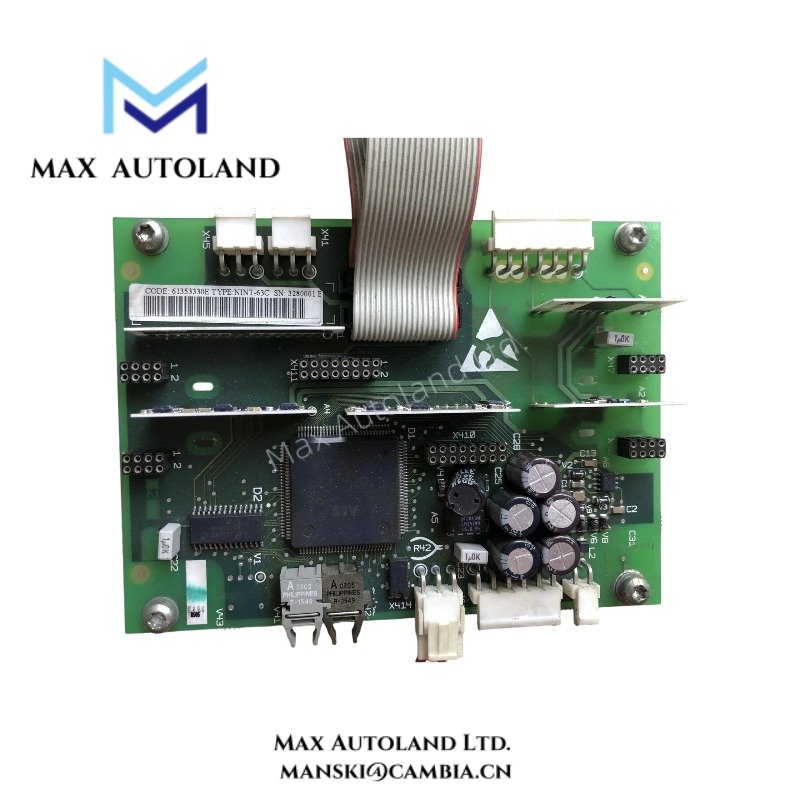

The ABB NINT-63C serves as the primary NINT-63C Network Interface Module utilized to execute communication data exchange across ABB drive control platforms. The module transfers operational information between control resources and associated network interfaces, enabling coordinated communication through the system backplane and connected field communication infrastructure.
Suffix Breakdown & Model Matrix
The provided documentation identifies NINT-63C as a single cataloged model. No official suffix breakdown or variant matrix is specified in the available source material.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | NINT-63C |
| Brand | ABB |
| Product Type | Network Interface Module |
| Function | Control and communication interface |
| Communication Role | Data exchange between drive control resources and network infrastructure |
| Installation Method | System-integrated module mounting |
| System Interface | Backplane communication architecture |
| Origin | ABB manufacturing source |
| Weight | Not specified in available documentation |
| Dimensions | Not specified in available documentation |
| Operating Temp | Not specified in available documentation |
| Power Consumption | Not specified in available documentation |
Backplane Communication and Firmware Compatibility
The NINT-63C exchanges operational data through the ABB system communication architecture and associated backplane infrastructure. Furthermore, the module supports structured information transfer between processing resources and connected subsystems. Firmware compatibility within the target platform helps maintain communication integrity during system expansion and maintenance activities. In addition, compatible communication hardware can extend system functionality without requiring changes to the primary control application structure.
Frequently Asked Questions
Q: Does the NINT-63C operate as a standalone communication device?
A: No. The module functions as part of a compatible ABB control or drive architecture and requires the host system for operation.
Q: Can the NINT-63C be replaced while system power remains applied?
A: Hot-swap capability depends on the specific ABB platform and maintenance procedures. Always follow the applicable hardware documentation before removing or installing the module.
Q: What should technicians verify after installation?
A: Verify connector engagement, module seating, communication status indicators, and compatibility with the configured control architecture.
Field Installation Guidelines
- Install the NINT-63C only in the slot position defined by the system configuration.
- Before installation, inspect all backplane connectors for contamination, bent contacts, or mechanical damage.
- Secure the module using the designated retaining hardware provided for the cabinet assembly.
- Additionally, route communication cables separately from high-current power conductors to reduce electromagnetic interference.
- Ensure cabinet grounding and cable shielding comply with site electrical standards.
- After installation, inspect all communication connections before applying power.
- Finally, record the module revision level and installation location for future maintenance and troubleshooting activities.
