Overview

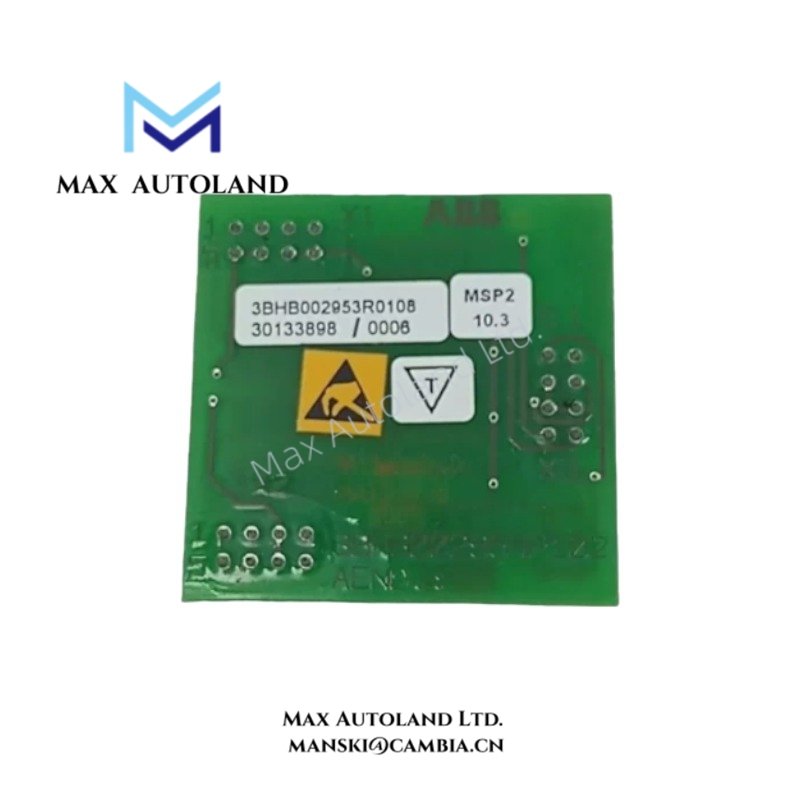

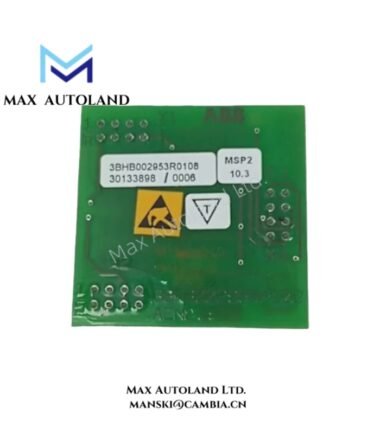

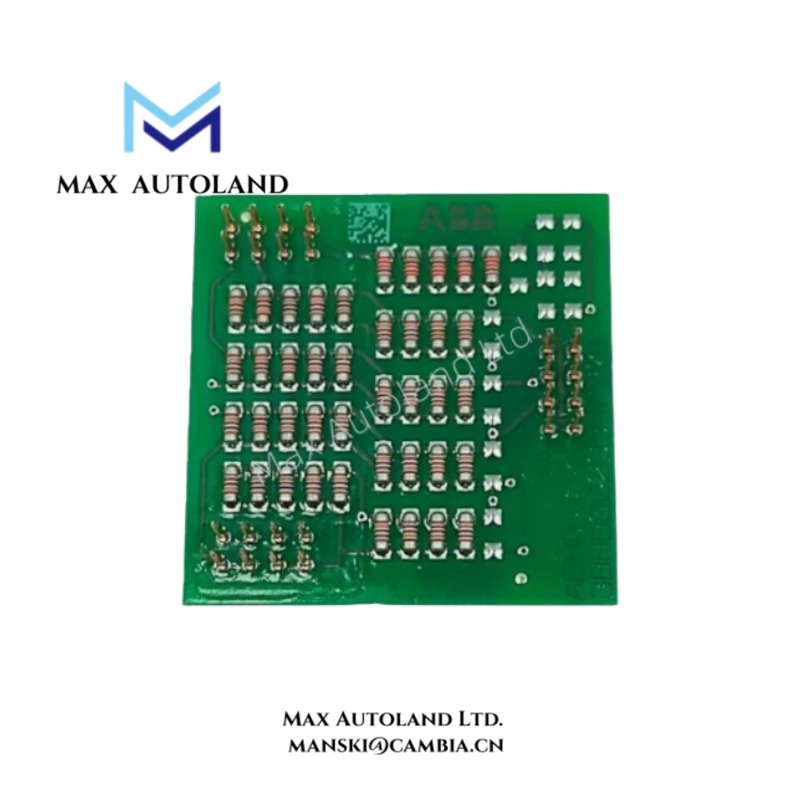

The ABB 3BHB002953R0108 XVC723 AE108 is a current measurement scaling board used in ABB excitation and drive equipment. It processes signals from a current transducer and provides a scaled measurement signal for downstream monitoring or control functions. The available product information identifies board status as a diagnostic item and specifies an internal control-cabinet mounting context. Verify the complete article code and revision when selecting a replacement.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3BHB002953R0108 |
| Board Designation | XVC723 AE108 |
| Brand | ABB |
| Product Type | Current Measurement Scaling Board |
| Board Function | Current measurement scaling |
| System Family | ABB excitation and drive |
| Input Signal | Current transducer signal |
| Output Signal | Scaled measurement |
| Diagnostics | Board status |
| Mounting Context | Control cabinet |
| Service Access | Internal board |
| Replacement Check | Article code and revision |
Function and Signal Processing
The board handles current measurement scaling between the current transducer signal and the resulting scaled measurement. This function supports the use of current feedback within the associated excitation or drive equipment. The exact input range, scaling ratio, output electrical characteristics, and calibration requirements are not specified in the available data.
Diagnostics and Replacement Identification
The documented diagnostic item is board status. The available information does not specify diagnostic codes, indicator behavior, or fault thresholds. Before replacing an installed board, compare the complete article number, board designation, and revision to confirm the correct hardware configuration.
Frequently Asked Questions
Q: What is the function of the ABB 3BHB002953R0108 XVC723 AE108?
A: It performs current measurement scaling for ABB excitation and drive equipment, processing a current transducer signal into a scaled measurement.
Q: What should be checked before ordering a replacement?
A: Verify the complete article number, XVC723 AE108 board designation, and revision against the installed unit. Confirm the electrical scaling characteristics and equipment compatibility before installation.
Q: Are the input range and output specifications available?
A: The available information identifies the input as a current transducer signal and the output as a scaled measurement. Specific current ranges, output levels, and scaling ratios require further technical verification.
