Overview

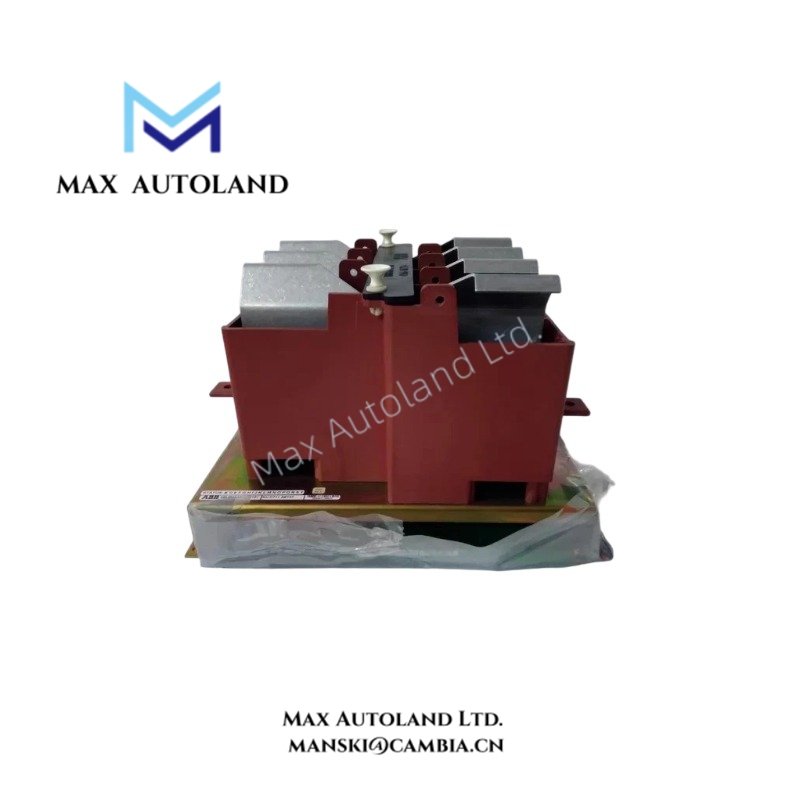

The ABB 3BHB004661R0101 KUC711 AE101 is a gate unit power supply assembly for a compatible medium-voltage drive configuration. It is associated with the 3BHB004791R0101 board and has four visible main busbar connections. Therefore, maintenance teams can use these identifiers to check the assembly against the existing drive configuration before ordering a replacement.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3BHB004661R0101 KUC711 AE101 |
| Associated Board Number | 3BHB004791R0101 |
| Spare Model (as supplied) | 3BHB003041R0101 UFC719AE01 |
| Brand | ABB |
| Product Type | Gate Unit Power Supply |
| Visible Main Busbar Connections | 4 |
| Stock Quantity | 1 unit |
| Country of Origin | Switzerland |
| Net Weight | 4.7 kg |
| Dimensions (L x H x W) | 279 x 203 x 191 mm |
Function and Configuration
A gate unit power supply provides power to the gate-drive circuits within a compatible power converter. These circuits support the control of power semiconductor switching. However, the exact supply rails and circuit arrangement depend on the drive design, so technicians should verify the electrical connections before installing the unit.
The KUC711 AE101 identifier and the associated 3BHB004791R0101 board number help distinguish this assembly during inspection and procurement. In addition, the supplied data lists 3BHB003041R0101 UFC719AE01 as a spare model. However, the available information does not confirm that this part is a direct replacement or electrically equivalent unit.
Replacement and Selection Checks
Before ordering, compare the complete part number and board identification with the installed assembly. Also, check the drive bill of materials and wiring drawings to confirm the correct configuration. Do not rely on similar model numbers alone, because different assemblies may serve different functions within the same drive system.
Frequently Asked Questions
Q: What does the ABB 3BHB004661R0101 do?
A: It serves as a gate unit power supply assembly in a compatible medium-voltage drive configuration. The exact electrical function and connections depend on the associated drive design.
Q: Are the 380-500 V AC input and 24 V DC output ratings confirmed?
A: No. The supplied draft lists these values, but the available model-specific information does not verify them. Check the applicable electrical drawings before connecting the assembly.
Q: Can I use 3BHB003041R0101 UFC719AE01 as a replacement?
A: The supplied information identifies it as a spare model, but it does not establish direct compatibility. Confirm the part number and configuration against the drive documentation before substitution.
