Overview

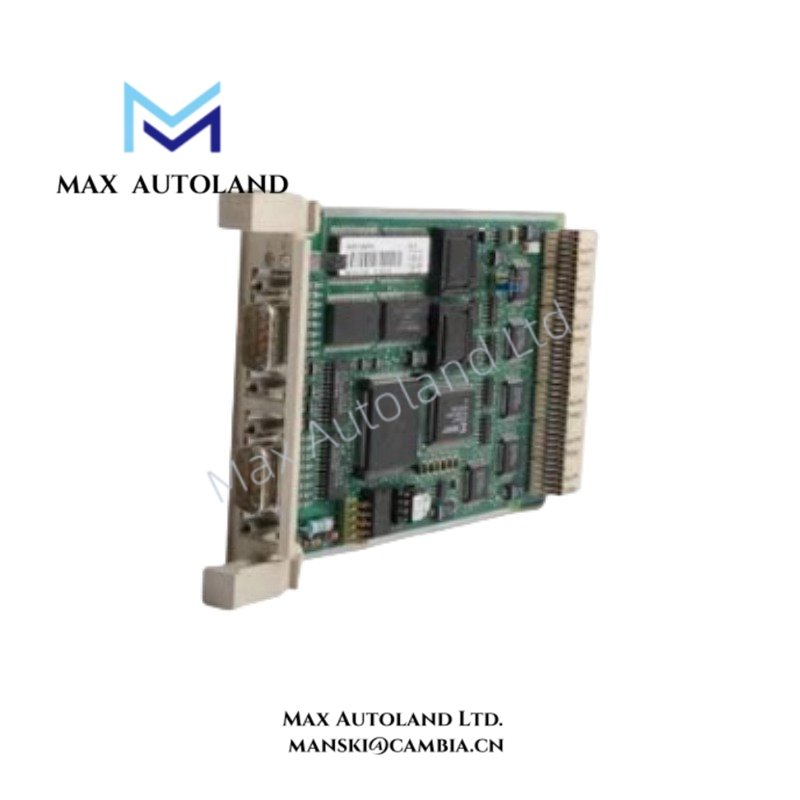

The ABB REF3BSE000435R1, also cataloged as the CI513 LAN communication module, provides Ethernet-based communication associated with ABB industrial control systems. The supplied information identifies support for the MB300 and MB300E communication protocols. Hardware switch settings are used for communication configuration. Exact network interface specifications and compatibility depend on the applicable hardware documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CI513 |
| Order Number | REF3BSE000435R1 |
| Brand | ABB |
| Product Type | LAN Communication Module |
| Network Standard | IEEE 802.3, as specified in the supplied data |
| Protocol Support | MB300, MB300E |
| Configuration | Hardware switch settings |
| Compatible System | ABB Advant / MasterPiece platforms, subject to verification |
Industrial Network Communication Characteristics
The CI513 is described as an interface for communication within ABB control system networks. The supplied documentation identifies MB300 and MB300E as supported communication protocols.
Before installation, verify the module’s exact network interface, supported protocol mode, switch configuration, and system compatibility against the relevant ABB manual. Do not assume that a reference to IEEE 802.3 establishes the connector type, transmission rate, or supported Ethernet services.
For integration with an existing controller network, confirm the required communication settings and the applicable hardware revision. Network configuration must match the connected system.
Frequently Asked Questions (FAQ)
Q: Which communication protocols are identified for the ABB CI513?
A: The supplied information lists MB300 and MB300E. Verify the supported operating mode and switch positions using the module-specific documentation.
Q: Can the CI513 be installed in any ABB Advant or MasterPiece rack?
A: Universal rack compatibility is not established by the supplied data. Check the hardware compatibility list, rack requirements, and system revision before installation.
Q: What are the power consumption and operating temperature limits?
A: These values are not provided in the supplied information. Obtain the applicable electrical and environmental specifications from ABB documentation before commissioning.
Field Installation Guidelines
- Verify the module nameplate and order number before mounting.
- Confirm that the target rack and controller platform support the installed hardware revision.
- Set hardware switches according to the documented MB300 or MB300E configuration.
- Inspect network connectors and cables for physical damage before connection.
- Route communication cables separately from high-voltage and high-current conductors where practicable.
- Apply cable shielding and grounding according to the manufacturer’s installation instructions.
- Confirm communication status and protocol compatibility during commissioning.
- Do not apply undocumented power, hot-swap, or termination procedures.
