Overview

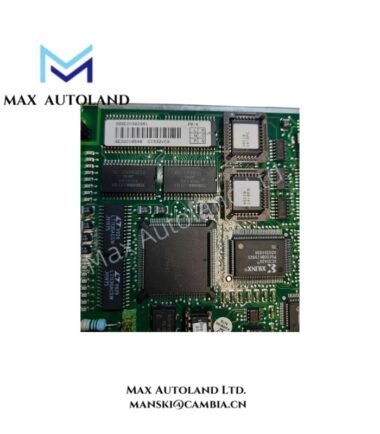

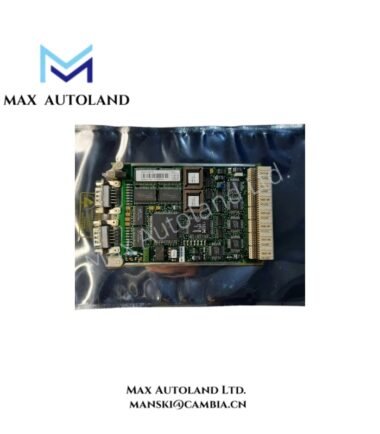

The ABB 3BSE003828R1, also designated as the CI532V03 communication interface, provides two-channel Siemens 3964(R) communication within compatible ABB Advant control systems. The module supports serial data exchange using the 3964(R) communication procedure. Its physical dimensions and catalog classification identify it as a communication interface module for industrial control applications.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CI532V03 |
| Product ID | 3BSE003828R1 |
| Brand | ABB |
| Module Type | Siemens 3964(R) Communication Interface |
| Communication Protocol | Siemens 3964(R) |
| Number of Channels | 2 |
| Product Series | ABB Advant, Classic |
| Dimensions | 265 x 120 x 25 mm (L x W x H) |
| Weight | 0.155 kg |
| HS Code | 851762 |
| RoHS Compliance | EU Directive 2011/65/EU |
| EU Data Act Compliance | Applicable and compliant, 2025 |
Serial Communication and Interface Characteristics
The CI532V03 provides two communication channels for Siemens 3964(R) protocol-based data exchange. The 3964(R) procedure uses defined transmission and acknowledgment sequences to coordinate serial communication between compatible devices.
When integrating this module, verify the communication settings and interface requirements of the connected equipment. Confirm protocol compatibility, channel assignment, cable specifications, and connector pinouts against the applicable ABB hardware documentation. The supplied specifications do not establish the physical serial interface type, baud rate, electrical signaling standard, or supported message length.
Frequently Asked Questions
Q: Which communication protocol does the ABB CI532V03 support?
A: The module is specified for Siemens 3964(R) communication and provides two communication channels.
Q: What are the physical dimensions and net weight?
A: The module measures 265 mm long, 120 mm wide, and 25 mm high. Its specified net weight is 0.155 kg.
Q: What power supply and operating temperature does the module require?
A: The supplied product data does not specify power consumption, supply voltage, or operating temperature. Consult the applicable ABB technical manual before installation.
Field Installation Guidelines
- Verify the complete product identification, CI532V03, and product ID 3BSE003828R1 before installation.
- Confirm compatibility with the target ABB Advant controller configuration and the intended communication interface.
- Check connector orientation, cable pin assignments, and electrical interface requirements against the official hardware documentation.
- Route communication cables separately from high-voltage power conductors and sources of electromagnetic interference.
- Apply cable shielding and grounding according to the system design and ABB installation instructions.
- Confirm the required supply voltage, power consumption, operating temperature range, and any module insertion restrictions before energizing the equipment.
- Inspect the communication configuration at both endpoints and verify successful data exchange after installation.
