Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IEFAN01 |
| Brand | ABB |
| Product Type | Fan Assembly 120 VAC Six Fans |
| Origin | Sweden |
| Weight | 8.2 kg |
| Dimensions | 48.3 x 5.1 x 35.6 cm |

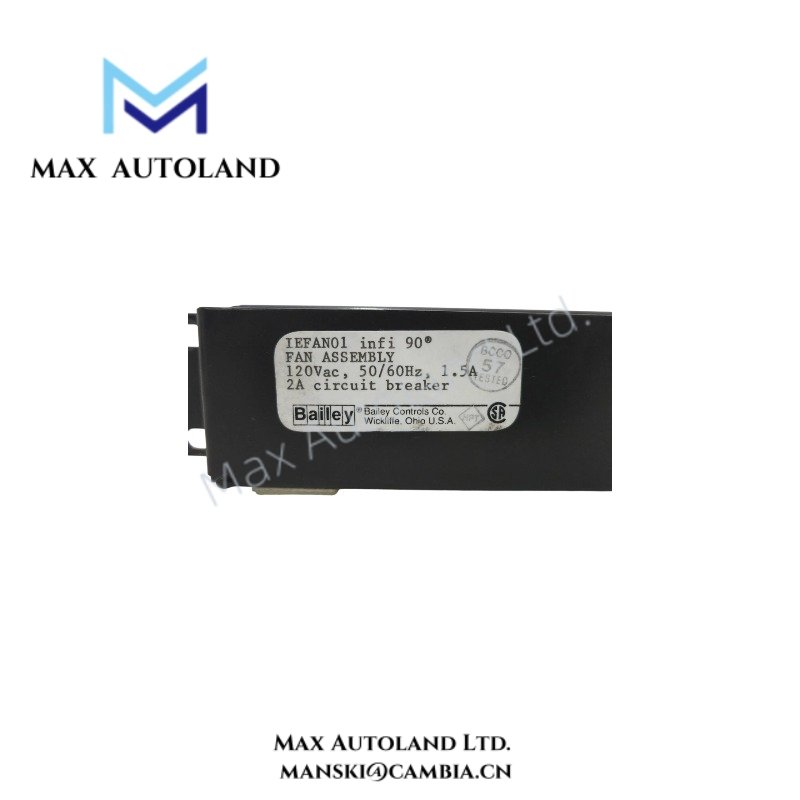

| Power Supply | 120 V AC, 50/60 Hz |
| Current Rating | 1.5 A |
| Power Consumption | 180 VA |
| Operating Temp | 0 deg C to +60 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Humidity | 5-95% RH, non-condensing |
ABB Industrial Cooling and Control Cabinet Integration

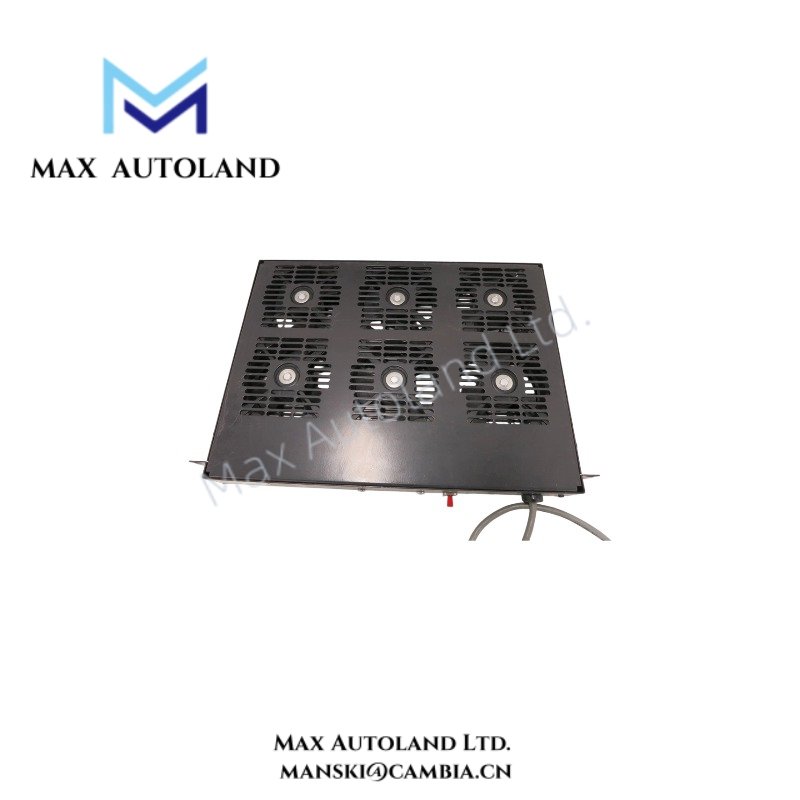

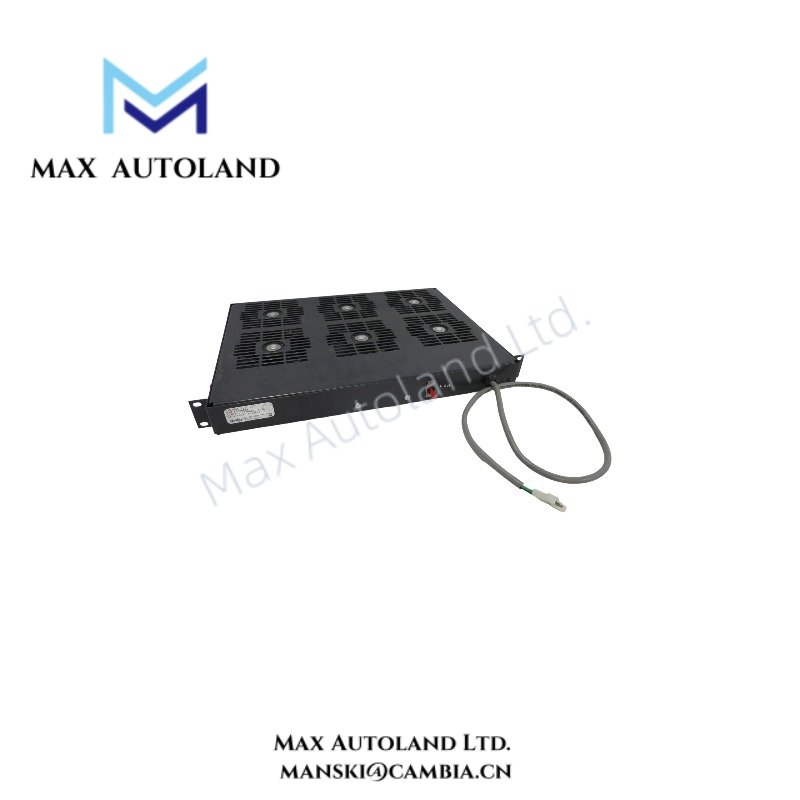

The ABB IEFAN01 operates as a mechanical cooling assembly within ABB industrial automation enclosures. The unit contains six fans configured for cabinet air circulation and thermal management. Therefore, it supports airflow distribution across installed control modules, power components, and rack assemblies.
ABB control platforms require controlled thermal conditions to maintain specified operating ranges for electronic modules. The IEFAN01 uses a 120 V AC input supply and provides continuous ventilation through a multi-fan arrangement. In addition, the assembly design supports integration into existing cabinet cooling structures without modifying the electrical architecture.
Frequently Asked Questions
Q: What power input does the ABB IEFAN01 require?
A: The ABB IEFAN01 requires a 120 V AC supply operating at 50/60 Hz with a rated current of 1.5 A.
Q: How many cooling fans are included in the IEFAN01 assembly?
A: The IEFAN01 is configured as a six-fan assembly for industrial cabinet ventilation applications.
Q: What environmental conditions support IEFAN01 operation?
A: The module operates from 0 deg C to +60 deg C with 5-95% RH non-condensing humidity conditions.
Field Installation Guidelines
Install the ABB IEFAN01 inside the designated cabinet mounting location according to the system mechanical drawings. Verify that airflow paths remain unobstructed before energizing the assembly.
Connect the 120 V AC power supply using approved industrial wiring practices. Confirm protective grounding continuity between the cabinet frame and the cooling assembly mounting hardware.
Keep fan intake and exhaust areas free from dust accumulation and external blockage. Additionally, route power cables separately from sensitive low-level signal wiring to reduce electrical interference.
Before commissioning, inspect fan rotation direction and confirm that all six fans operate correctly under the specified supply voltage.
