Overview

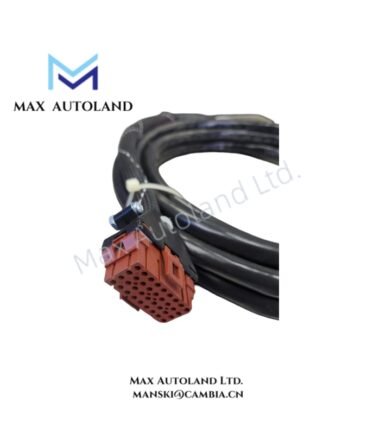

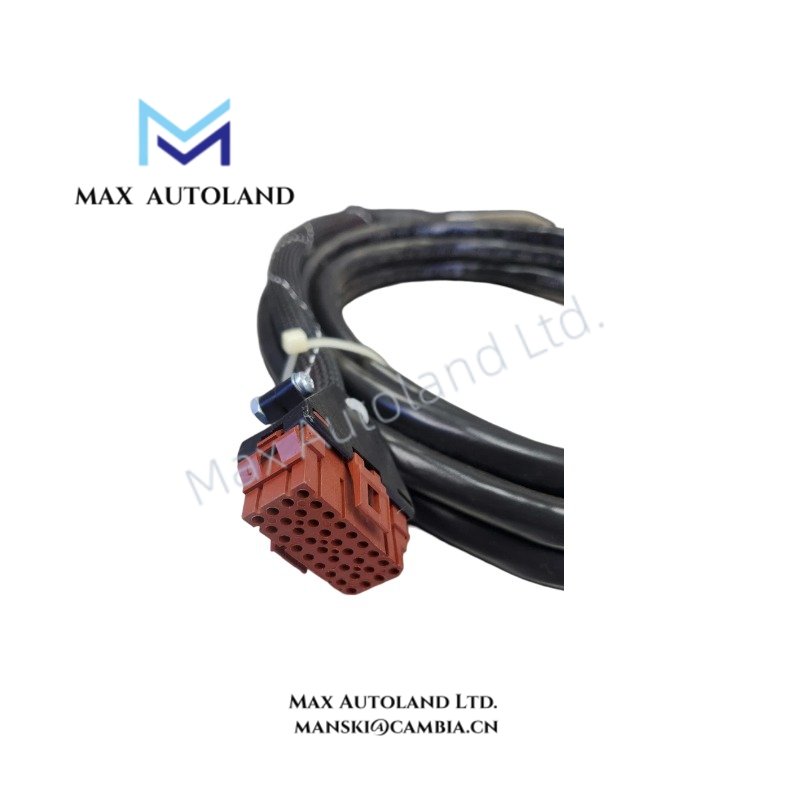

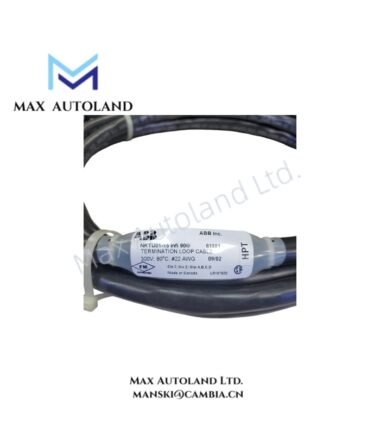

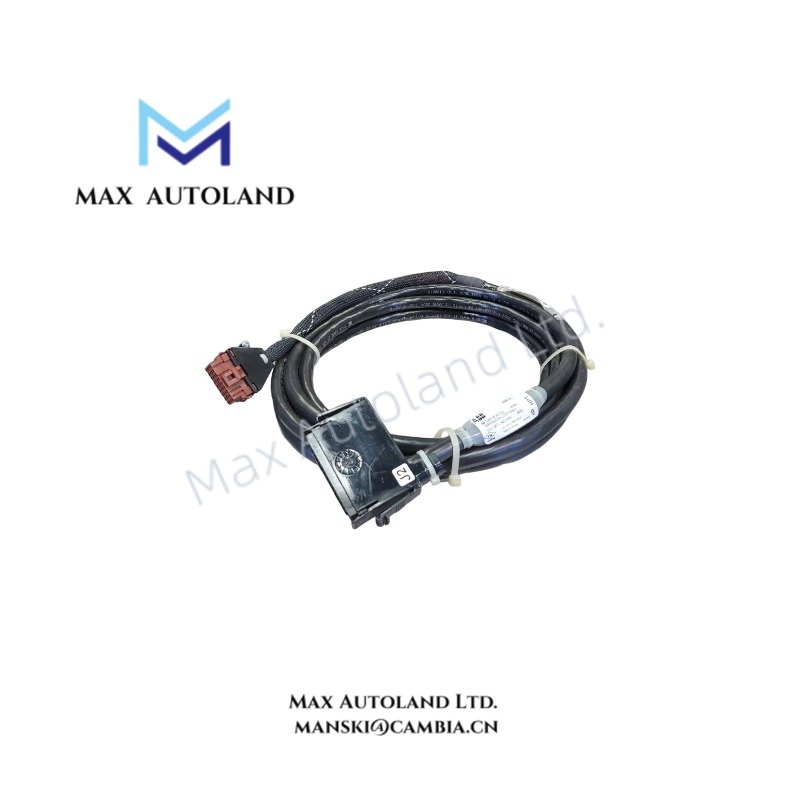

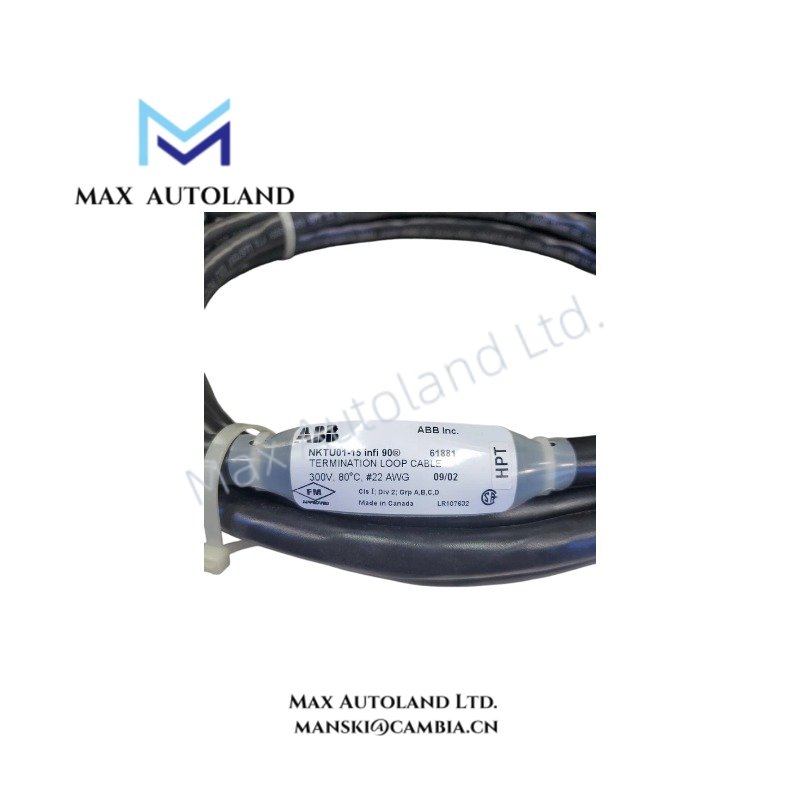

Configured for loop interface electrical termination in ABB Bailey Controls DCS signal conditioning channels, the ABB NKTU01-15 (NKTU01-15 Loop Interface Cable) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| ModelBrand | ABB NKTU01-15 |
| Origin | Sweden |
| Weight | 1.2 kg |
| Dimensions | 38.1 x 5.1 x 7.6 cm |
| OperatingTemp | -20 degC to +80 degC |
| PowerConsumption | Not specified |
| Signal Interface | 4-20 mA, 0-10 VDC analog |
| Digital Interface | 24 VDC dry contact switching |
| Wire Gauge | 22 AWG |
| Insulation Material | PVC |
| Shipment Location | Xiamen, China |
ABB DCS Loop Termination Signal Integrity Architecture
The ABB NKTU01-15 functions as a passive loop interface element within ABB Bailey Controls distributed control environments, supporting deterministic signal routing between field termination assemblies and I/O subsystem inputs. In ABB industrial control architectures, backplane bus synchronization and module-level addressing maintain channel-to-channel timing alignment, ensuring stable 4-20 mA loop acquisition under variable load conditions. The cable assembly is designed for fixed impedance continuity and minimized signal reflection across extended termination paths, supporting analog and discrete hybrid signal transmission within modular I/O racks.
Frequently Asked Questions
Q: Can the NKTU01-15 support mixed analog and digital field signals in the same termination path?
A: Yes. The assembly supports 4-20 mA, 0-10 VDC analog signals and 24 VDC dry contact digital switching within separate conductor pairs.
Q: Is the cable compatible with hot-swap I/O module replacement?
A: The cable itself is passive; hot-swap behavior depends on the connected ABB Bailey Controls I/O module and backplane architecture, not the cable assembly.
Q: Does conductor gauge affect loop resistance in long-distance installations?
A: The 22 AWG conductor size defines loop resistance characteristics and must be considered in total loop impedance calculations for 4-20 mA circuits.
Field Installation Guidelines
Ensure separation between analog signal pairs and digital switching conductors to reduce cross-coupling in high-density termination racks. Maintain shield continuity at a single grounding point to avoid ground loop currents. Verify all terminations are mechanically secured to prevent micro-disconnection under vibration. Avoid routing alongside high-energy motor drive cabling to reduce induced noise on low-level analog loops. Follow ABB Bailey Controls rack wiring conventions for consistent channel mapping.
