Overview

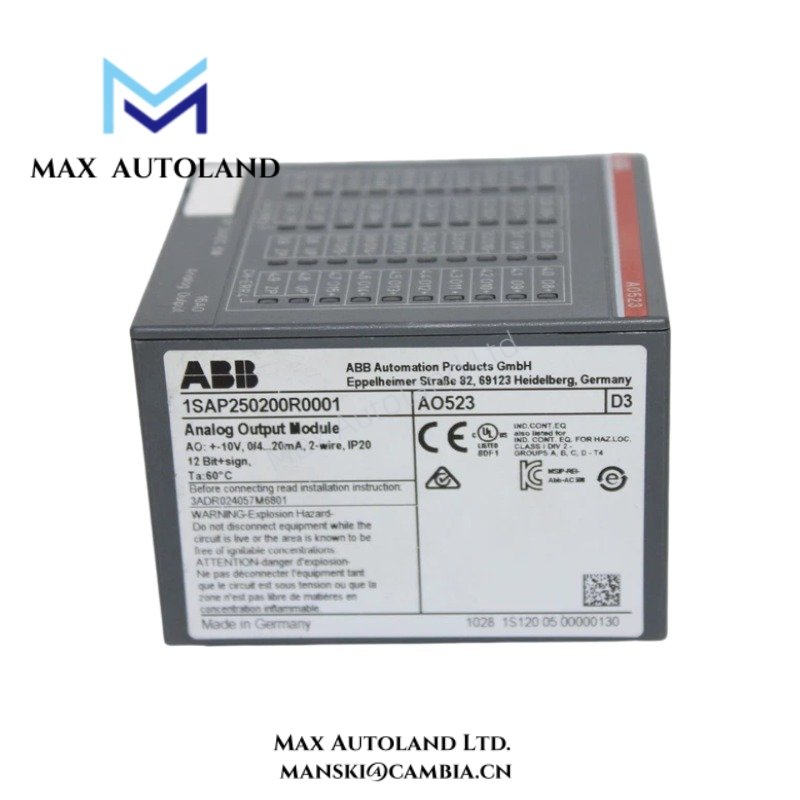

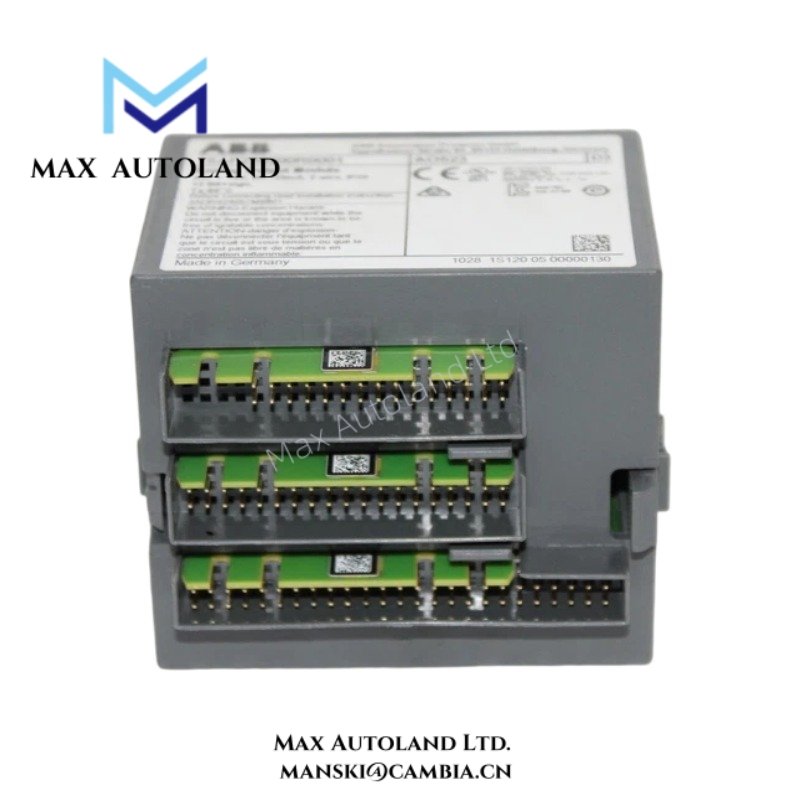

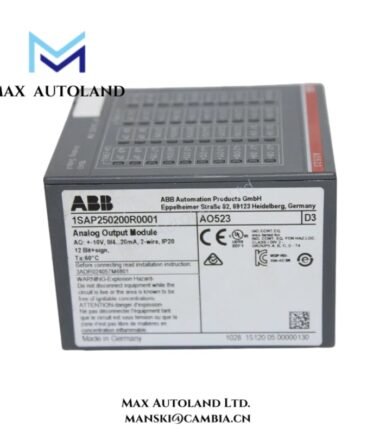

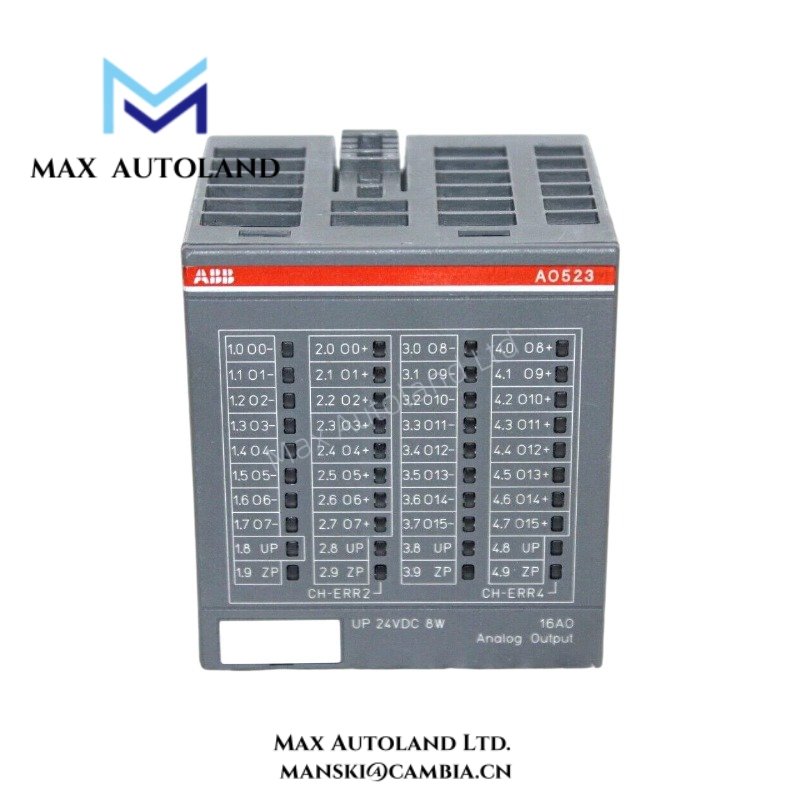

The ABB AO523 1SAP250200R0001, also cataloged as the AO523 Analog Output Module, operates as a dedicated hardware component for analog signal generation within ABB Advant OCS and 800xA control systems. The module converts controller output values into field-level analog current and voltage signals for process control devices and external instrumentation interfaces.
Suffix Breakdown & Model Matrix
The designation AO523 1SAP250200R0001 represents a fixed ABB catalog number. No official suffix decomposition or configurable model matrix is specified in the referenced product documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AO523 1SAP250200R0001 |
| Brand | ABB |
| Origin | Sweden |
| Product Type | Analog Output Module |
| Output Channels | 8 |
| Output Signal Types | Voltage and Current Outputs |
| Resolution | 12-bit |
| Galvanic Isolation | Channel group isolation |
| System Compatibility | ABB Advant OCS, ABB 800xA, AC500 |
| Communication | Backplane I/O Communication |
| Mounting | DIN Rail |
| Dimensions | Not specified |
| Weight | Not specified |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
I/O Density Scaling in Distributed Control Architectures
The AO523 is integrated into ABB distributed control structures through backplane communication with the host CPU and associated I/O modules. System expansion is achieved by increasing installed I/O capacity while maintaining consistent engineering configuration methods. Analog output allocation, signal scaling, and channel mapping remain controller-managed functions, allowing output density growth without changes to field device wiring principles.
Frequently Asked Questions
Q: Does the AO523 provide isolated output channels?
A: The module provides galvanic isolation at the channel-group level. Isolation characteristics should be verified against the applicable ABB hardware documentation during system design.
Q: Can the AO523 output both current and voltage signals?
A: Yes. The module supports configurable analog output operation for standard industrial current and voltage signal applications.
Q: What should be checked after replacing an AO523 module?
A: Verify channel configuration, output scaling parameters, terminal wiring integrity, and controller diagnostics before restoring the associated control loops to operation.
Field Installation Guidelines
- Install the module on the designated DIN rail or system mounting assembly according to ABB hardware instructions.
- Route analog output wiring separately from high-voltage and motor power cables.
- Use shielded signal cable where required by site electrical standards.
- Terminate cable shields according to the plant grounding philosophy and avoid uncontrolled multi-point grounding.
- Confirm output type configuration matches the connected field instrument requirements before energization.
- Verify terminal torque values according to the applicable ABB installation manual.
- Perform loop verification using calibrated measurement equipment after commissioning.
