Overview

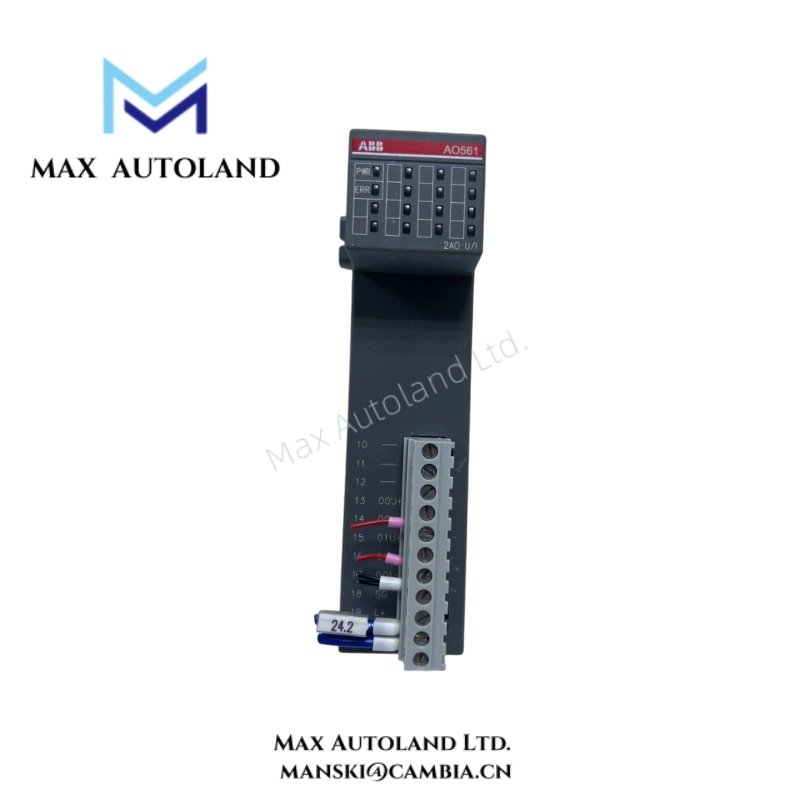

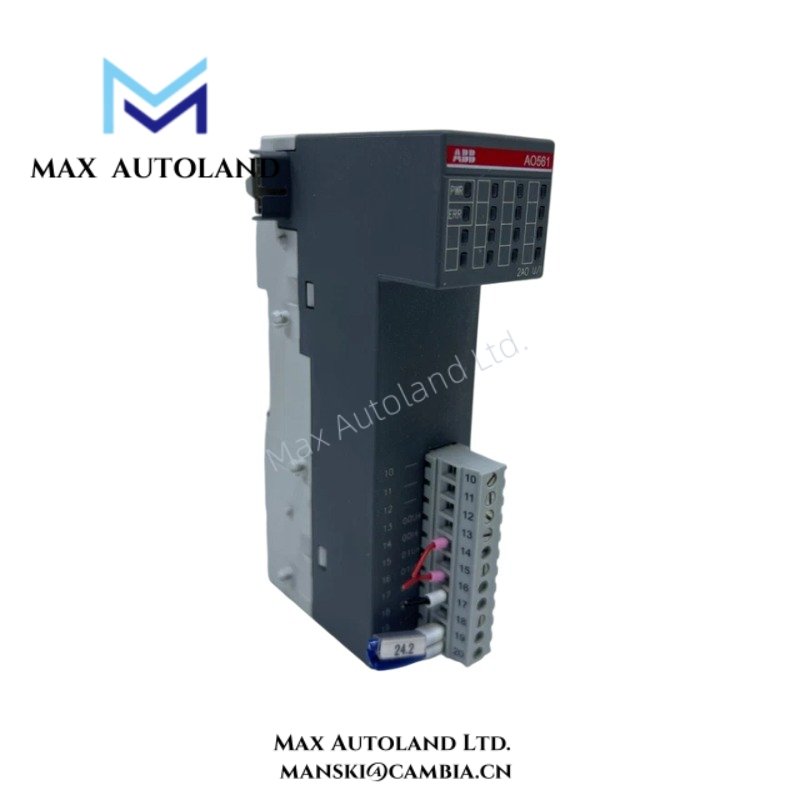

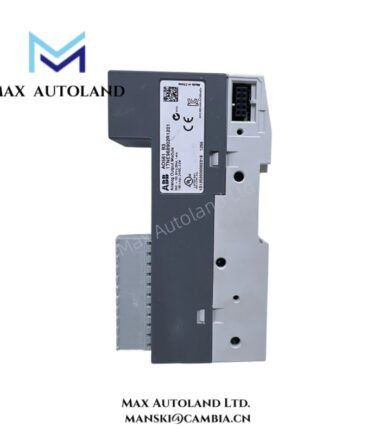

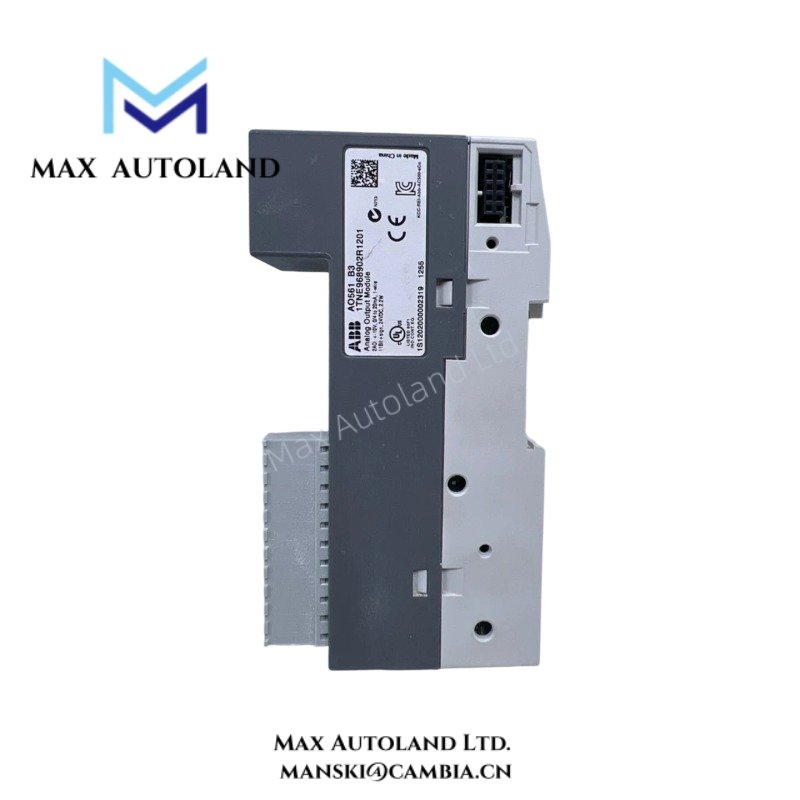

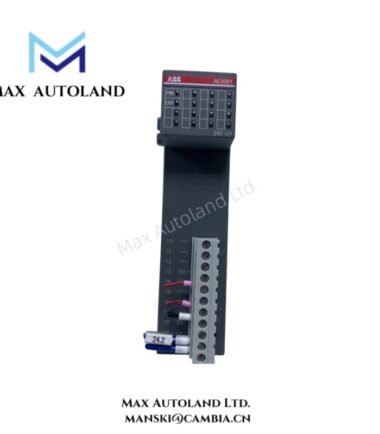

The ABB AO561 serves as the primary AO561 Analog Output Module utilized to execute analog signal generation across Advant OCS and 800xA platforms. The module converts controller output data into field-level current or voltage signals for actuators, control valves, and interface devices connected to the ABB process control infrastructure.
Suffix Breakdown & Model Matrix
The provided documentation identifies AO561 as a fixed module designation. No official suffix matrix or ordering-code breakdown is specified in the available source material.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AO561 |
| Brand | ABB |
| Origin | Sweden |
| Product Type | Analog Output Module |
| Output Channels | 8 Analog Outputs |
| Output Signal Types | 0-20 mA, 4-20 mA, Voltage Outputs |
| Resolution | 12-bit |
| Galvanic Isolation | Channel group isolation |
| System Compatibility | ABB Advant OCS, ABB 800xA |
| Mounting | Control System Rack Installation |
| Dimensions | Not specified |
| Weight | Not specified |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
| Output Function | Process Signal Transmission to Field Devices |
Firmware Flash Compatibility and System Integration
The AO561 operates as a distributed I/O component within ABB control architectures where output values are transferred through the system backplane and controller communication infrastructure. Module operation depends on controller firmware compatibility and configured I/O definitions within the engineering environment. During replacement procedures, hardware revision alignment and application database consistency should be verified to prevent output mapping discrepancies.
Frequently Asked Questions
Q: Does the AO561 support both current and voltage output signals?
A: Yes. The module is designed for analog output transmission using standard industrial current and voltage signal ranges as supported by the configured channel type.
Q: Can the AO561 be replaced while the controller remains energized?
A: Hot-swap capability depends on the specific rack, controller generation, and maintenance procedures defined for the installed ABB system. Module replacement should follow the applicable system documentation.
Q: What should be verified after module replacement?
A: Confirm channel allocation, output scaling parameters, field wiring integrity, and controller diagnostics before returning the loop to service.
Field Installation Guidelines
- Separate analog output wiring from AC power and variable frequency drive cables.
- Use shielded signal cable for low-level analog circuits where specified by site standards.
- Terminate cable shields according to the system grounding philosophy.
- Verify loop polarity before energizing field circuits.
- Confirm output range configuration matches the connected field device requirements.
- Inspect terminal connections for conductor strand exposure and loose terminations.
- Perform loop checks using controller diagnostics and calibrated measurement equipment after commissioning.
