Overview

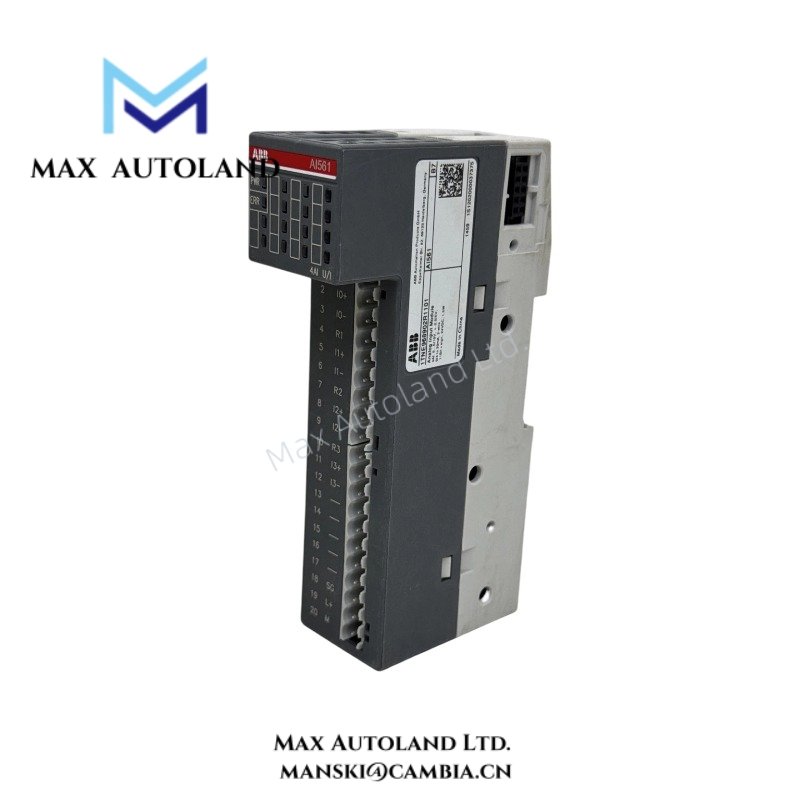

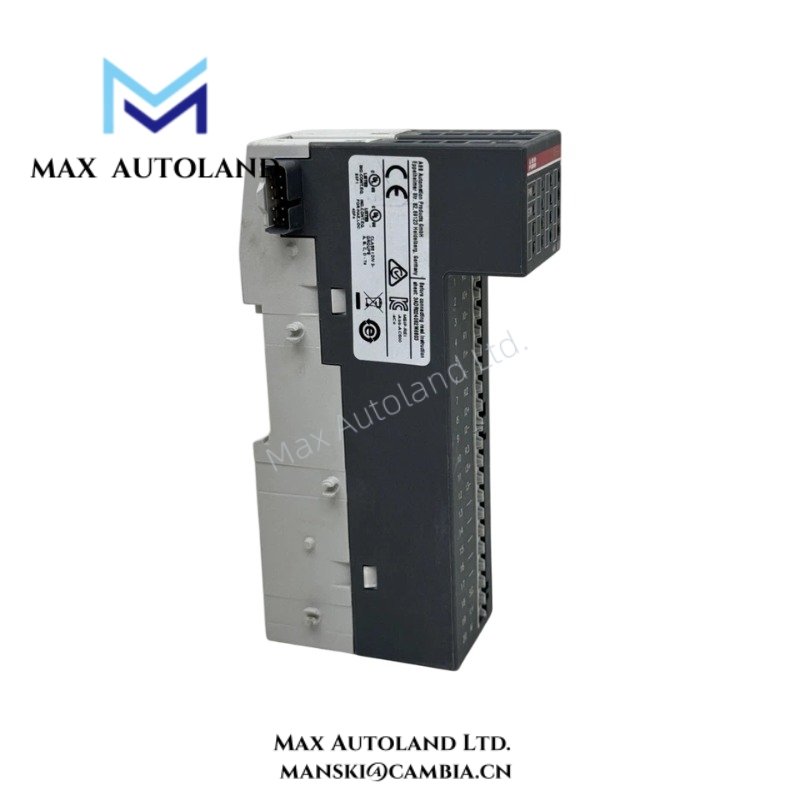

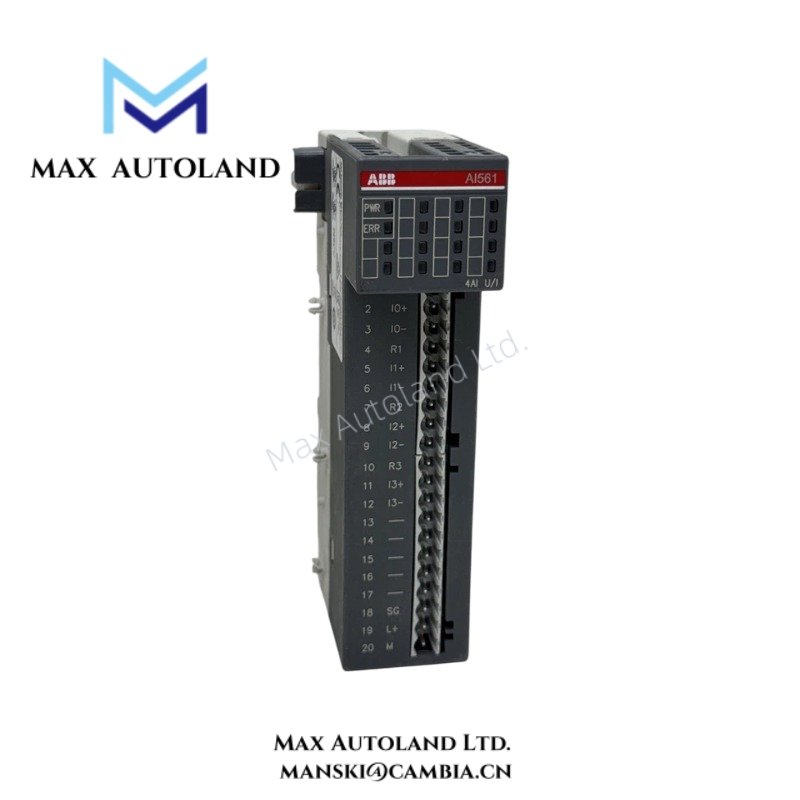

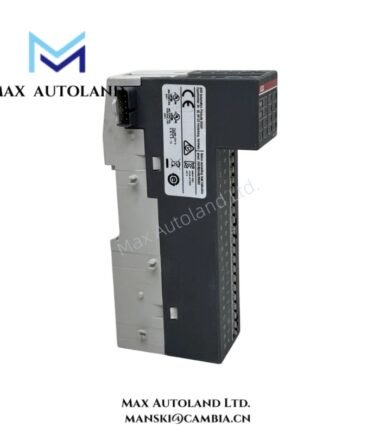

Configured for analog signal acquisition in ABB Advant OCS and 800xA control systems, the ABB AI561 1TNE968902R1101 (AI561 Analog Input Module) provides direct electrical execution. The module receives field-level analog current and voltage signals, performs signal conversion, and transfers process values to the controller through the ABB I/O infrastructure.
Suffix Breakdown & Model Matrix
The designation AI561 1TNE968902R1101 represents a fixed ABB catalog number. No official suffix decomposition or configurable model matrix is specified in the referenced documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AI561 1TNE968902R1101 |
| Brand | ABB |
| Origin | Sweden |
| Product Type | Analog Input Module |
| Input Channels | 8 |
| Input Signal Types | Current and Voltage Inputs |
| Input Resolution | 12-bit |
| Galvanic Isolation | Channel group isolation |
| System Compatibility | ABB Advant OCS, ABB 800xA, AC500 |
| Communication | Backplane I/O Communication |
| Mounting | DIN Rail |
| Dimensions | Not specified |
| Weight | Not specified |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
Firmware Flash Compatibility
The AI561 exchanges process data with the host controller through the ABB I/O backplane architecture. During module replacement or controller firmware migration, hardware revision compatibility and engineering database consistency should be verified. Input channel allocation, scaling parameters, and diagnostic handling are maintained by the controller configuration environment and must match the installed module revision.
Frequently Asked Questions
Q: What signal types can be connected to the AI561?
A: The module supports standard industrial analog current and voltage input signals as defined by the controller configuration and field wiring arrangement.
Q: Does the AI561 provide channel isolation?
A: The module incorporates galvanic isolation at the channel-group level. Detailed isolation characteristics should be verified against the applicable ABB hardware documentation.
Q: What checks should be performed after module replacement?
A: Verify field wiring continuity, channel configuration, signal scaling, and controller diagnostics before returning associated process measurements to service.
Field Installation Guidelines
- Install the module on the designated DIN rail according to ABB installation procedures.
- Route analog input cables separately from power distribution and motor control wiring.
- Use shielded instrumentation cable where required by site standards.
- Terminate cable shields according to the plant grounding strategy.
- Verify input polarity and signal type before energizing field circuits.
- Avoid parallel routing with high-frequency switching cables to reduce electromagnetic interference.
- Perform signal verification using calibrated sources and controller diagnostics after commissioning.
