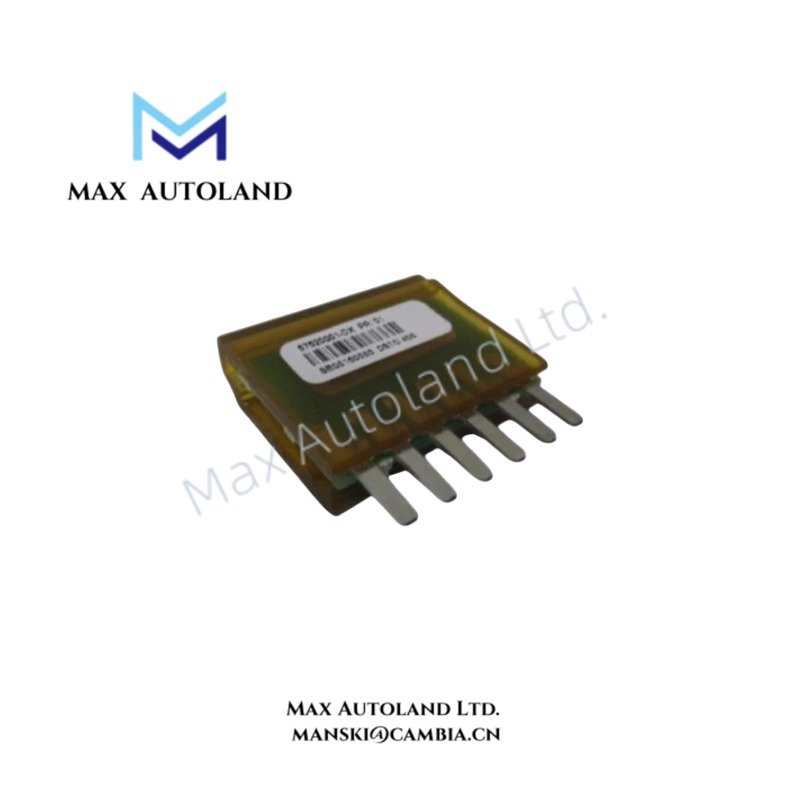

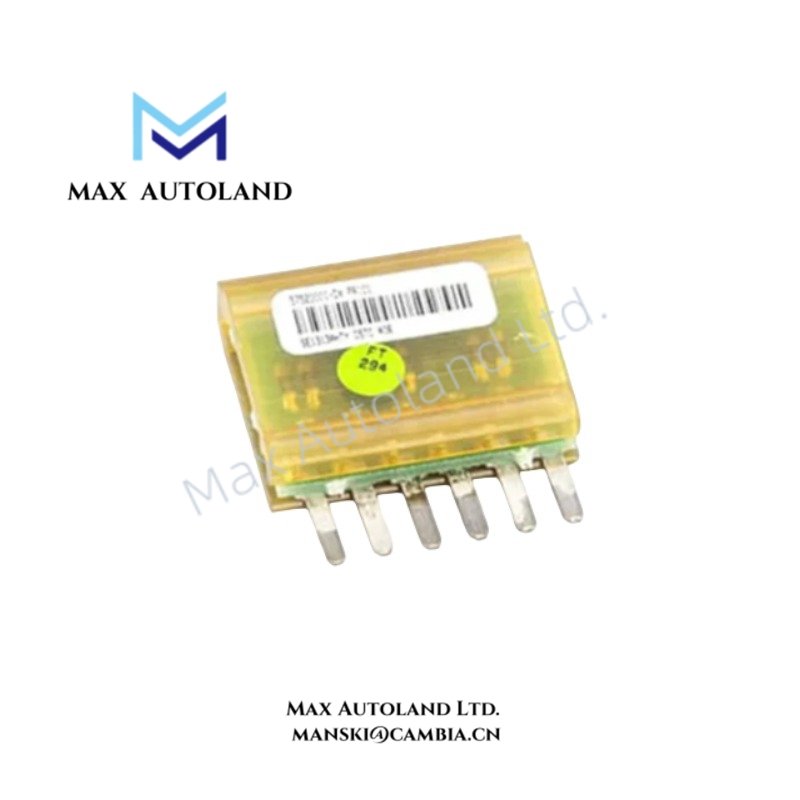

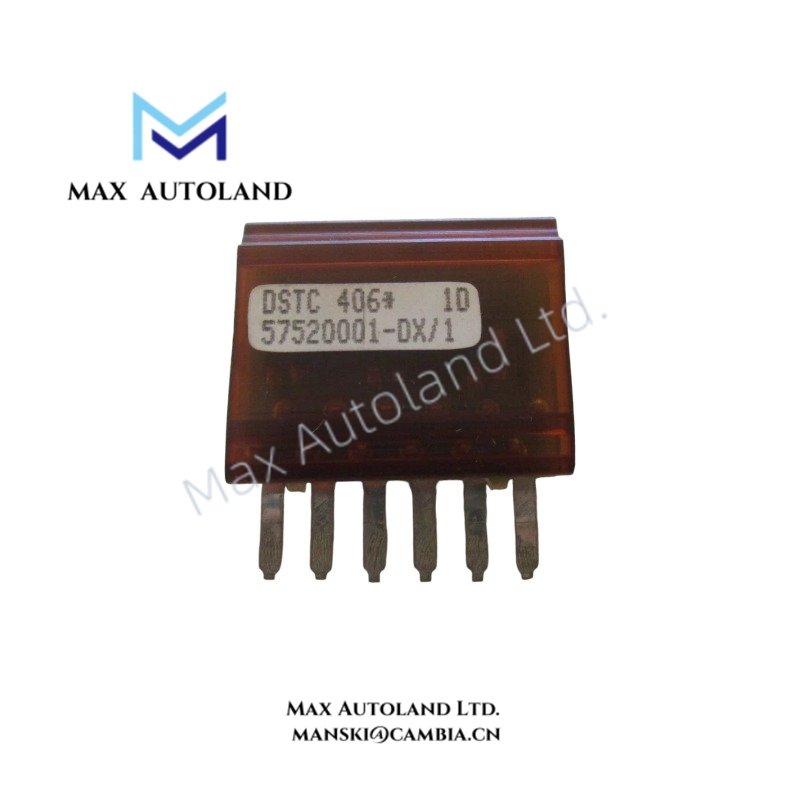

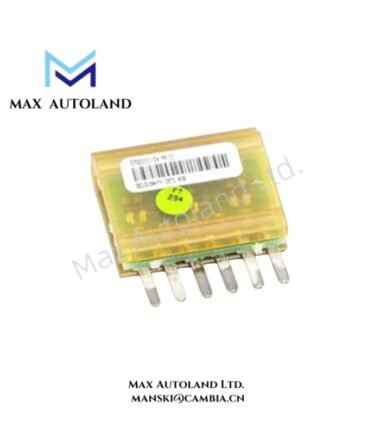

ABB Advant Master DSTC 406 Terminating Unit

Overview

Configured for SDB side signal termination in the DSTC 452 modem communication link, the ABB 57520001-DX (DSTC 406 Terminating Unit) provides passive electrical termination for ABB Advant Master Process Control System communication networks.

Hardware Specifications

Industrial Control Communication Termination Characteristics

The ABB DSTC 406 belongs to ABB industrial control hardware used for communication interface termination within Advant Master systems. Moreover, this unit operates as a passive termination component and does not process communication signals or require firmware configuration.

The termination unit works together with the ABB DSTC 452 modem, where the modem connection extends between the SDB and LDB communication sections. Therefore, the DSTC 406 provides the required end-point termination when the modem represents the final node in the communication chain.

For ABB control platforms, installation practices must consider communication bus integrity, termination placement, and signal reflection control. In addition, ABB system architectures depend on correct physical network configuration to maintain stable data transmission between control modules and communication interfaces.

Frequently Asked Questions

Q: Does the ABB DSTC 406 require an external power supply?
A: No. The DSTC 406 is a passive termination unit and does not require an external power connection.

Q: What is the function of DSTC 406 in an ABB modem communication link?
A: The DSTC 406 provides SDB side termination for the DSTC 452 modem connection when the modem operates as the final communication device.

Q: Can the DSTC 406 operate as an active communication module?
A: No. The DSTC 406 only provides passive termination and does not perform signal processing or communication control.

Field Installation Guidelines

• Install the DSTC 406 on the SDB side of the communication connection according to the ABB system configuration requirements.
• Use the unit only with compatible DSTC 452 modem communication arrangements.
• Confirm that the DSTC 406 is installed at the final modem position to provide correct bus termination.
• Maintain proper cable routing and avoid placing communication wiring close to high-voltage switching circuits.
• Follow ABB Advant Master installation documentation for grounding, shielding, and network termination practices.
• Verify mechanical mounting and connector engagement before system commissioning.
