Overview

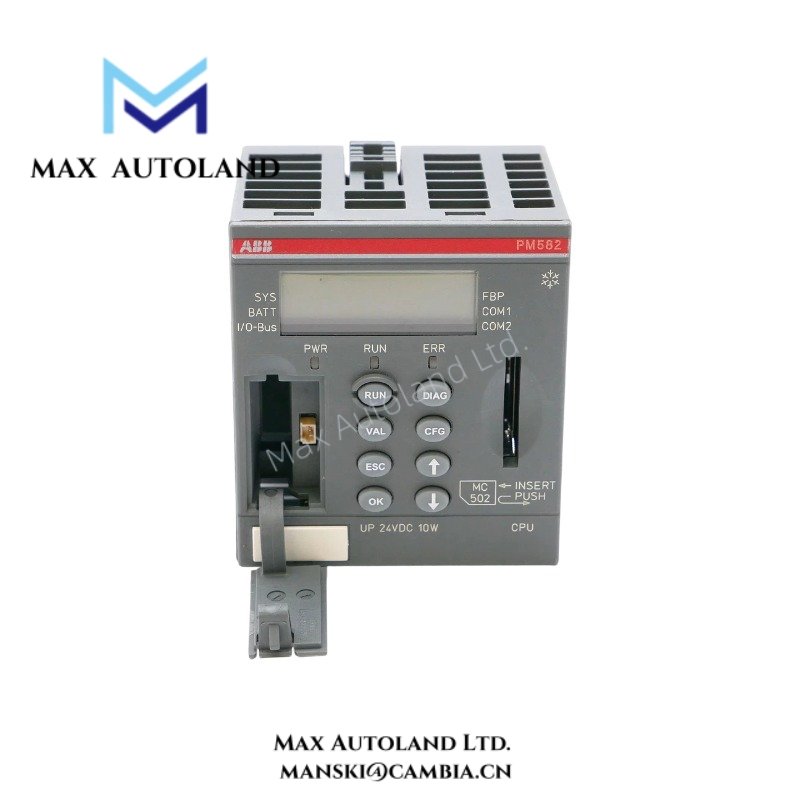

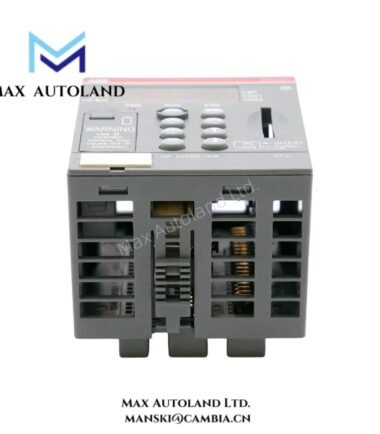

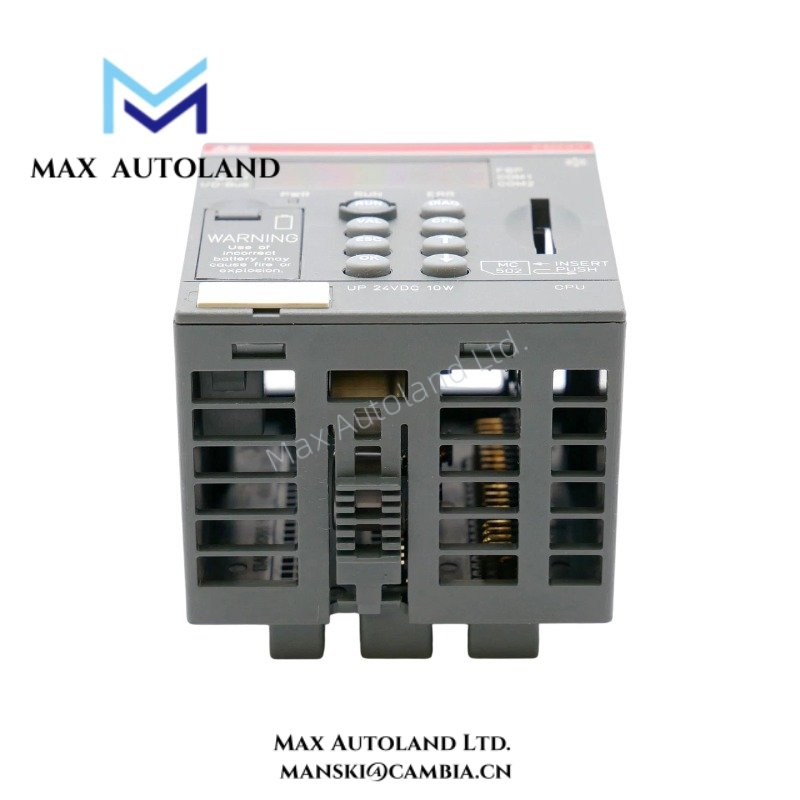

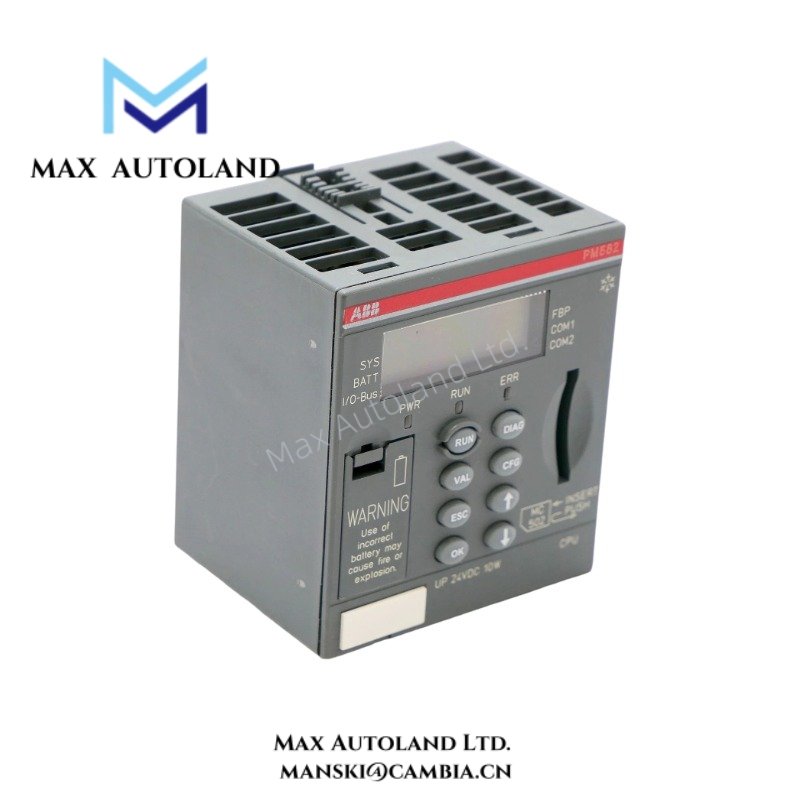

The ABB PM582-XC, also cataloged as the PM582 Processor Module, operates as a dedicated hardware component for control program execution, process data handling, and I/O communication within ABB AC500 automation systems. The module integrates processor resources, communication interfaces, and controller functions for real-time data exchange across the system architecture.
Suffix Breakdown & Model Matrix
The designation PM582-XC corresponds to ABB catalog number 1SAP340200R0201. The available product documentation identifies this model as a fixed processor variant. ABB does not specify an official suffix matrix or configurable ordering structure for this processor module.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PM582-XC |
| Brand | ABB |
| Product Series | AC500 |
| Product Type | Processor Module |
| Product ID | 1SAP340200R0201 |
| Processor Function | PLC CPU and Communication Management |
| Communication Interfaces | Integrated Controller Communication Interfaces |
| Mounting Method | DIN Rail |
| Protection Rating | IP20 |
| Operating Temp | Not specified in available documentation |
| Dimensions | Not specified in available documentation |
| Weight | Not specified in available documentation |
| Power Consumption | Not specified in available documentation |
| Origin | ABB Manufacturing Network |
Firmware Flash Compatibility
The PM582-XC processor manages application execution, memory resources, and communication services within the AC500 controller platform. In addition, the module coordinates data transfer between local I/O assemblies and connected expansion hardware through the controller architecture.
Furthermore, firmware versions directly influence compatibility between the processor, engineering software, and installed communication modules. During maintenance activities, engineers should verify firmware alignment across all system components before loading application programs or performing controller upgrades. As a result, consistent firmware management helps maintain predictable controller operation and hardware recognition throughout the system lifecycle.
Frequently Asked Questions
Q: Does the PM582-XC function as the primary CPU within an AC500 controller system?
A: Yes. The module executes application programs, manages controller resources, and coordinates communication between connected system components.
Q: Can firmware revisions affect controller interoperability?
A: Yes. Different firmware revisions may influence communication behavior, hardware support, and engineering software compatibility. Therefore, engineers should verify version compatibility before updating system firmware.
Q: Does the available documentation specify processor hot-swapping?
A: No. The available documentation does not define a hot-swap procedure. Consequently, technicians should remove system power before installing or replacing the processor module.
Field Installation Guidelines
- First, mount the processor module securely onto the designated DIN rail and verify proper mechanical engagement.
- Next, inspect all module connections and ensure correct alignment with adjacent system components.
- Additionally, route communication wiring separately from high-current conductors, motor feeders, and drive output cables.
- During installation, connect cable shields according to plant grounding practices and maintain a continuous protective earth connection.
- Before energizing the controller, verify all terminal connections and communication settings.
- Furthermore, confirm compatibility between the processor firmware, engineering software, and connected hardware modules.
- Finally, perform controller diagnostics and communication verification before placing the system into service.
