Overview

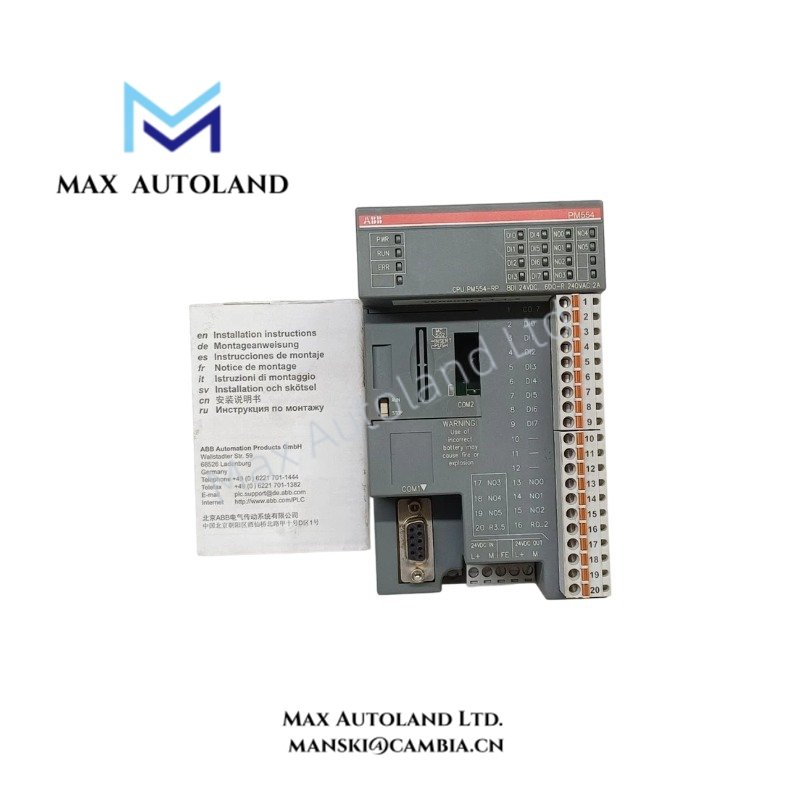

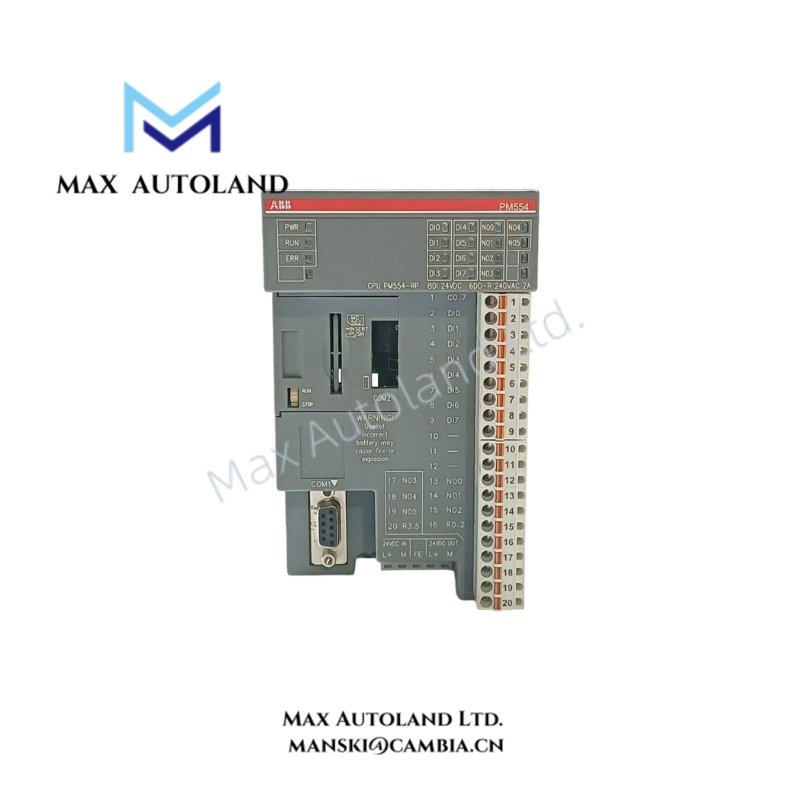

The ABB PM554, also cataloged as the PM554 PLC CPU module, executes user programs and processes digital input and output states within the ABB AC500-eCo control platform. It combines CPU processing, onboard I/O, and communication interfaces in a compact controller assembly. Verify the complete order code before specifying supply voltage, output type, or communication options.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PM554 |
| Brand | ABB |
| Product Type | PLC CPU Module |
| Product Series | AC500-eCo |
| Processor | 32-bit Freescale ARM, 50 MHz (provided data; verify exact variant) |
| User Memory | 128 kB (provided data; verify exact variant) |
| Onboard Digital Inputs | Typically 8; variant-dependent |
| Onboard Digital Outputs | Typically 6; transistor or relay variant-dependent |
| Power Supply | 24 VDC or 115-230 VAC, depending on variant |
| Communication | RS485; protocol support depends on configuration |
| Expansion | Two option slots, subject to model configuration |
| Programming Software | ABB Automation Builder |
| Weight | Approximately 0.29 kg |
| Dimensions | Approximately 82 x 135 x 74 mm |
PLC Execution and Communication Interfaces
The PM554 processes its control program and updates onboard digital I/O according to the configured application. The RS485 interface supports serial communication where the selected hardware and firmware provide the required protocol.
For system integration, verify the serial protocol, baud rate, connector pinout, and communication parameters against the installed configuration. Do not assume that all PM554 variants provide identical interfaces or electrical characteristics.
The reported 8 digital inputs and 6 digital outputs, supply options, and memory specification should be checked against the complete product designation before replacement or system expansion.
Frequently Asked Questions (FAQ)
Q: Can the PM554 operate from either 24 VDC or 115-230 VAC?
A: Supply voltage depends on the specific hardware variant. Confirm the complete order code and rated input supply before connecting power.
Q: Are the onboard digital outputs transistor or relay outputs?
A: The output implementation depends on the variant. Verify the output type, load rating, and switching characteristics using the corresponding hardware documentation.
Q: Can the PM554 communicate with other controllers over RS485?
A: RS485 provides the physical serial interface. Protocol compatibility depends on the controller configuration, firmware, and communication settings at both ends.
Field Installation Guidelines
- Confirm the complete model designation and supply voltage before mounting or wiring the controller.
- Install the module according to ABB’s specified mounting orientation, clearance, and environmental requirements.
- Check digital input voltage levels and output load characteristics before connecting field devices.
- Use shielded communication cable where required by the installation design. Apply shield grounding according to ABB’s EMC instructions and the plant grounding scheme.
- Route communication wiring separately from high-current switching and power cables where practical.
- Verify RS485 polarity, bus termination, and network topology against the selected protocol requirements.
- Isolate the power supply before wiring or servicing the module. Do not assume hot-swap capability unless the applicable documentation explicitly permits it.
- After installation, verify supply voltage, I/O states, communication status, and program execution before returning the equipment to service.
