Overview

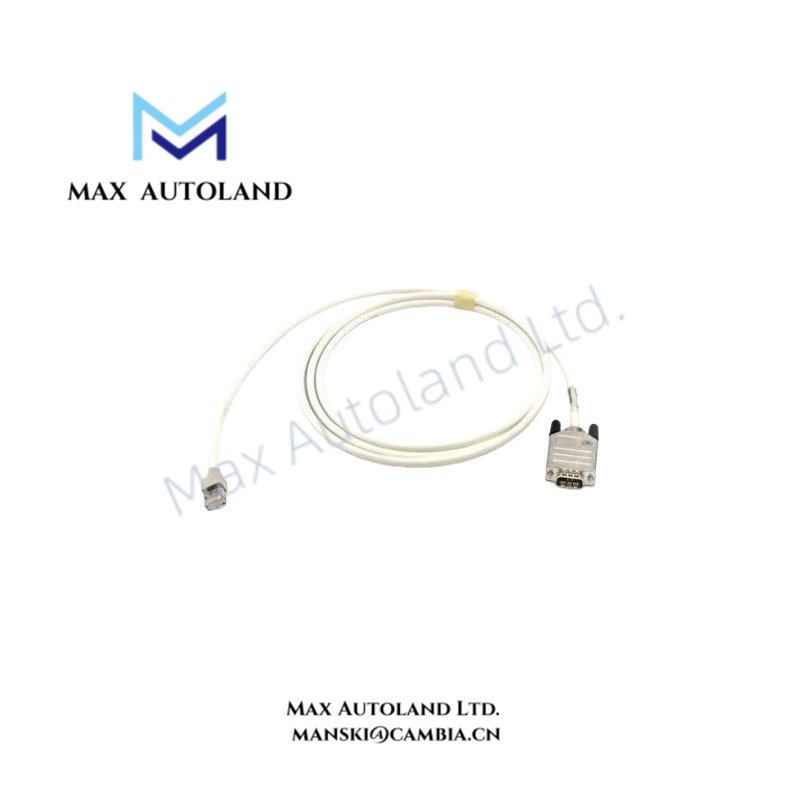

Configured for controller interconnection tasks in System 800xA and AC 800M platforms, the ABB TK853V020 (TK853V020 Connection Cable) provides direct physical signal connection between AC 800M components and CEX-bus related hardware interfaces. The cable is cataloged under ABB part number 3BSC950201R1 and uses shielded construction for industrial cabinet installations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TK853V020 |
| Brand | ABB |
| Dimensions | Cable length: 2.0 m |
| Operating Temp | 0 deg C to +55 deg C |
| Power Consumption | Passive cable assembly, no external power consumption |
| Product Type | Interconnection Cable |
| Compatible System | ABB System 800xA / AC 800M Controller Series |
| ABB Ordering Code | 3BSC950201R1 |
| Cable Function | Controller and subsystem interconnection |
| Cable Construction | Shielded interface cable |
| Mounting Type | Plug-in connection |
| Shielding Method | EMI/RFI shielded cable structure |
Industrial Control Interface and Communication Characteristics
The ABB TK853V020 supports physical interconnection within ABB AC 800M controller architectures. Therefore, the cable maintains signal integrity between connected hardware assemblies through a shielded cable design.
The cable supports ABB industrial control installations that require controlled routing between controller modules, CEX-bus communication units, and extension components. In addition, the shield layer reduces external electromagnetic interference influence during cabinet operation.
ABB controller systems apply structured backplane and communication architectures. The TK853V020 connection cable supports these architectures by providing a defined electrical path between compatible hardware interfaces. Furthermore, the cable design allows integration with ABB firmware-managed controller configurations without requiring active electronic conversion.
Frequently Asked Questions
Q: Does the ABB TK853V020 require external power during operation?
A: No. The TK853V020 is a passive interconnection cable and does not consume external electrical power.
Q: What installation method does the TK853V020 use?
A: The cable uses plug-in connections designed for compatible ABB System 800xA and AC 800M hardware assemblies.
Q: How should the cable shield be handled during installation?
A: The shield should follow ABB cabinet wiring practices and connect according to the grounding requirements of the installed control system to reduce electromagnetic interference.
Field Installation Guidelines
- Verify the cable part number before installation to ensure compatibility with the intended ABB AC 800M hardware configuration.
- Install the cable inside the control cabinet using the recommended cable routing path. Avoid parallel routing with high-voltage power cables where possible.
- Maintain proper separation between communication wiring and switching power circuits to reduce electromagnetic coupling.
- Connect the shield according to the cabinet grounding design. Avoid unnecessary shield interruptions along the cable path.
- Inspect connectors before installation. Confirm that plug interfaces are fully seated and mechanically secured.
- Perform system communication checks after installation to confirm correct controller and extension module operation.
