Overview

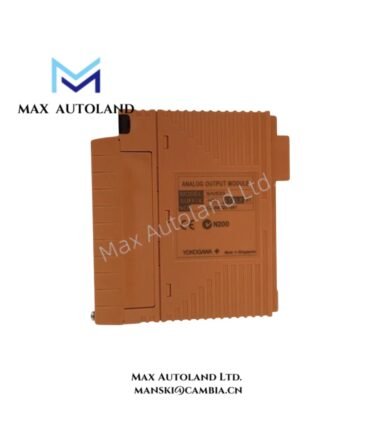

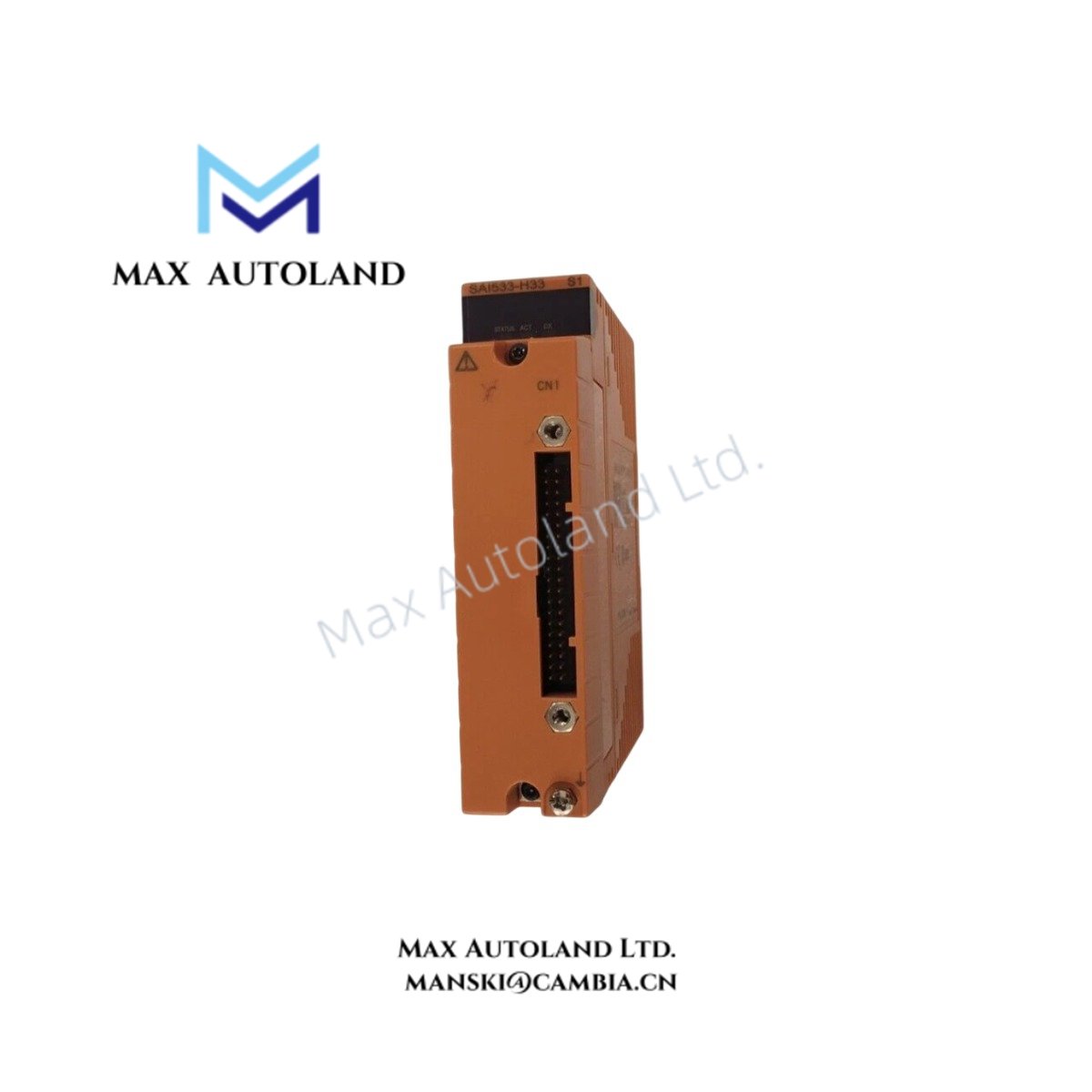

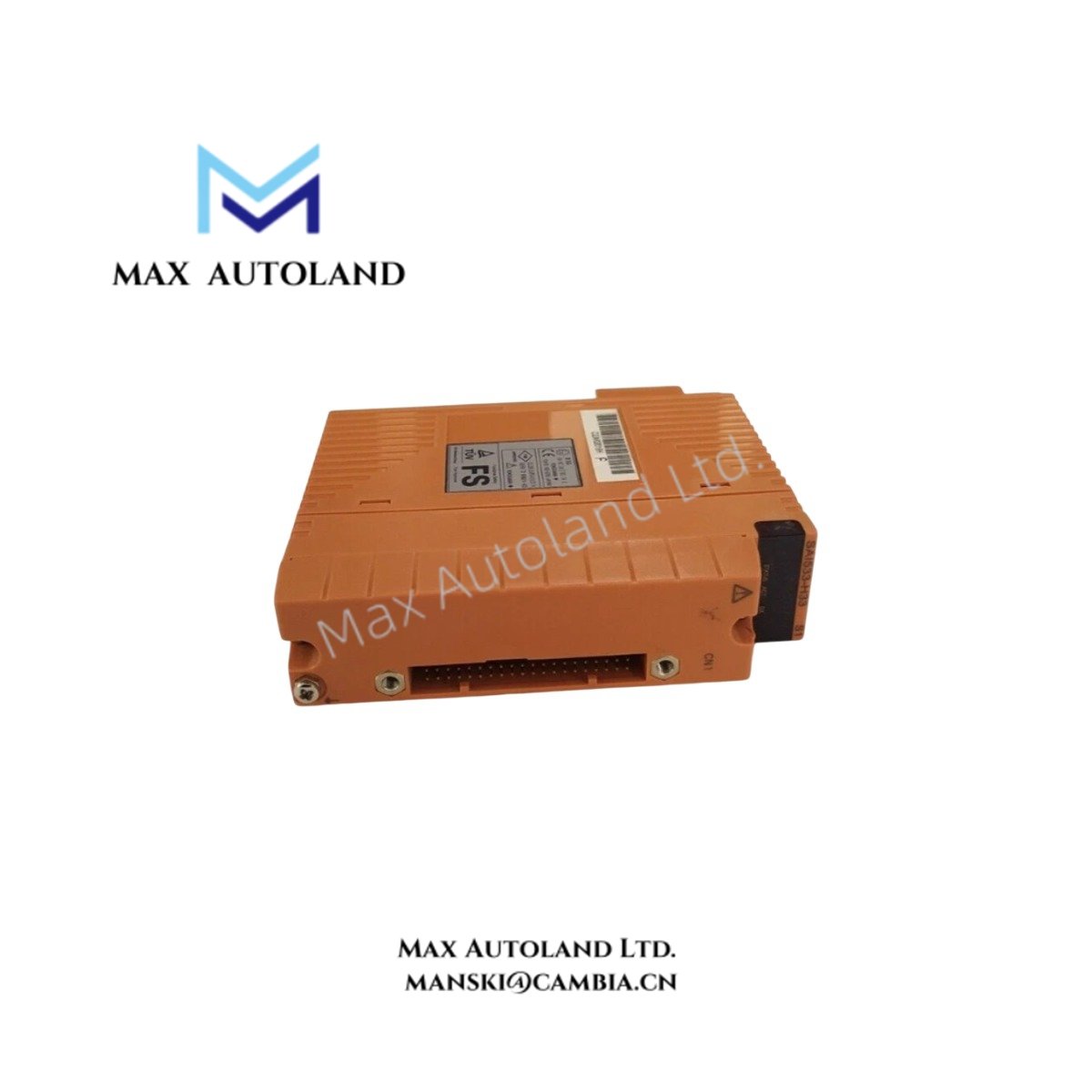

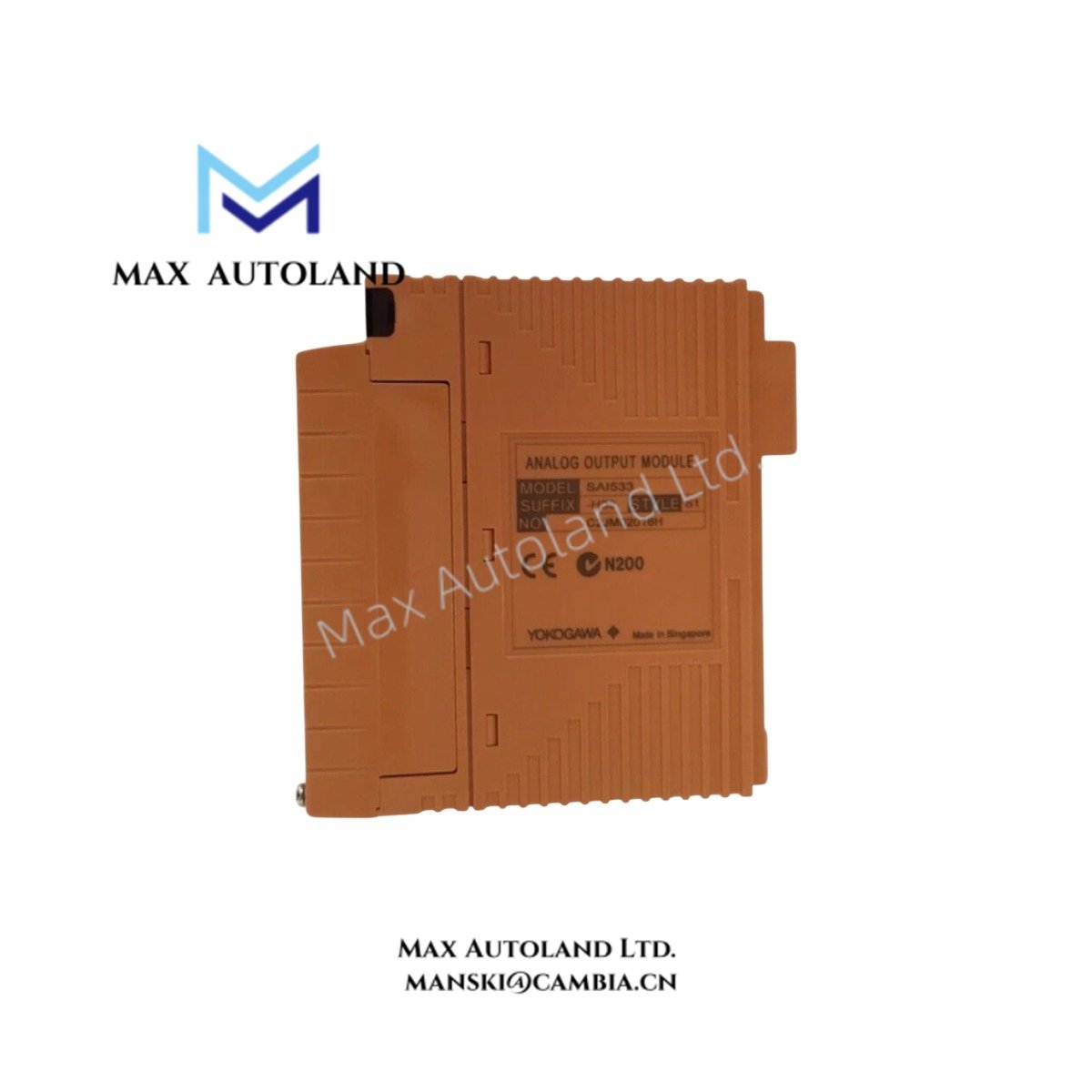

Configured for 4-20 mA signal output execution in Yokogawa ProSafe-RS platforms, the Yokogawa ProSafe-RS SAI533-H33/PRP (SAI533 Analog Output Module) provides direct physical and electrical control signal generation with 8 isolated output channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SAI533-H33/PRP |
| Brand | Yokogawa |
| Product Type | Analog Output Module |
| System Platform | Yokogawa ProSafe-RS |
| Function | Current Output Module |
| Output Channels | 8 channels, module isolation |
| Output Signal Range | 4 to 20 mA |
| Guaranteed Precision Range | 1.25 to 23 mA |
| Maximum Output Range | 1.25 to 23 mA |
| Allowable Load Resistance | 230 to 600 ohm at rated range |
| Accuracy | ±48 uA |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 uA / 10 deg C |
| Withstand Voltage | 1.5 kV AC between output signal and system |
| Maximum Current Consumption | 5 V system: 320 mA; 24 V system: 300 mA |
| Weight | 0.26 kg with pressure clamp terminal block or MIL cable; 0.33 kg with signal cable interface adapter |
| Dimensions | Not specified by manufacturer |
| Operating Temp | -20 to 70 deg C with ISA Standard G3 option |
| Power Consumption | Derived from system supply current consumption |
| External Connection | Pressure clamp terminal, MIL cable, dedicated signal cable |
| HART Communication | Available with -H suffix option |
| Redundancy Support | Dual redundant configuration available |
| PST Support | Available (KS1), including partial stroke test diagnosis |
4-20 mA Process Signal Output and HART Interface
The SAI533-H33/PRP generates analog current signals from 4 to 20 mA for field actuator and instrument control loops. The module maintains isolated output channels to separate field circuits and system-side electronics.
The optional HART communication function allows digital communication over the analog current loop when the module is configured with the corresponding suffix option. Therefore, the module can support additional device diagnostics and parameter exchange within compatible ProSafe-RS configurations.
The module supports dual redundant installation. This configuration allows the control system to maintain output availability through redundant hardware arrangement.
Frequently Asked Questions
Q: Does the SAI533-H33/PRP support channel isolation?
A: Yes. The SAI533 provides 8 output channels with module isolation for separated field signal circuits.
Q: What output signal does the SAI533-H33/PRP generate?
A: The module generates 4 to 20 mA current output signals with a guaranteed precision range from 1.25 to 23 mA.
Q: Can the SAI533-H33/PRP operate with redundant hardware configuration?
A: Yes. The SAI533 supports dual redundant configuration within Yokogawa ProSafe-RS systems.
Field Installation Guidelines
- Install the SAI533-H33/PRP according to Yokogawa ProSafe-RS hardware configuration requirements.
- Verify terminal block type before wiring. The module supports pressure clamp terminal blocks, MIL cables, and dedicated signal cables depending on the selected configuration.
- Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference.
- Connect cable shields according to the system grounding design and site electrical standards.
- Confirm output loop polarity before applying field power.
- Verify the 4-20 mA loop resistance remains within the specified allowable load range.
- When using HART communication, maintain proper field wiring practices to preserve digital communication integrity.
- Confirm redundant module configuration and system recognition before placing the output channel into operation.
