Overview

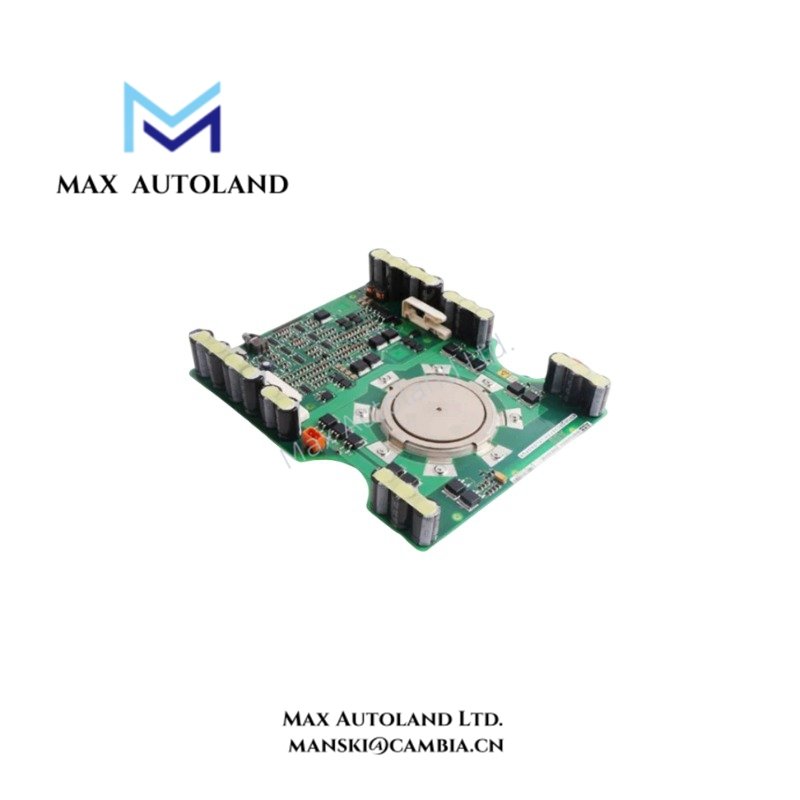

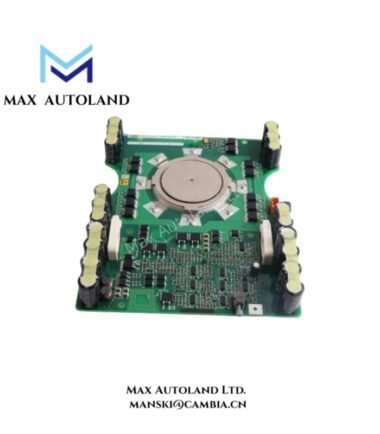

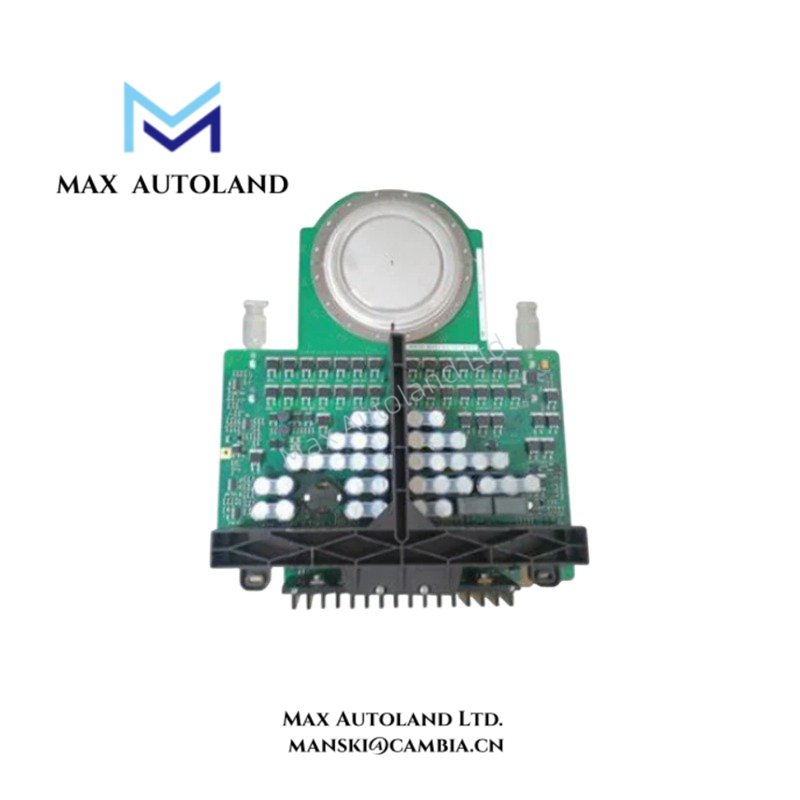

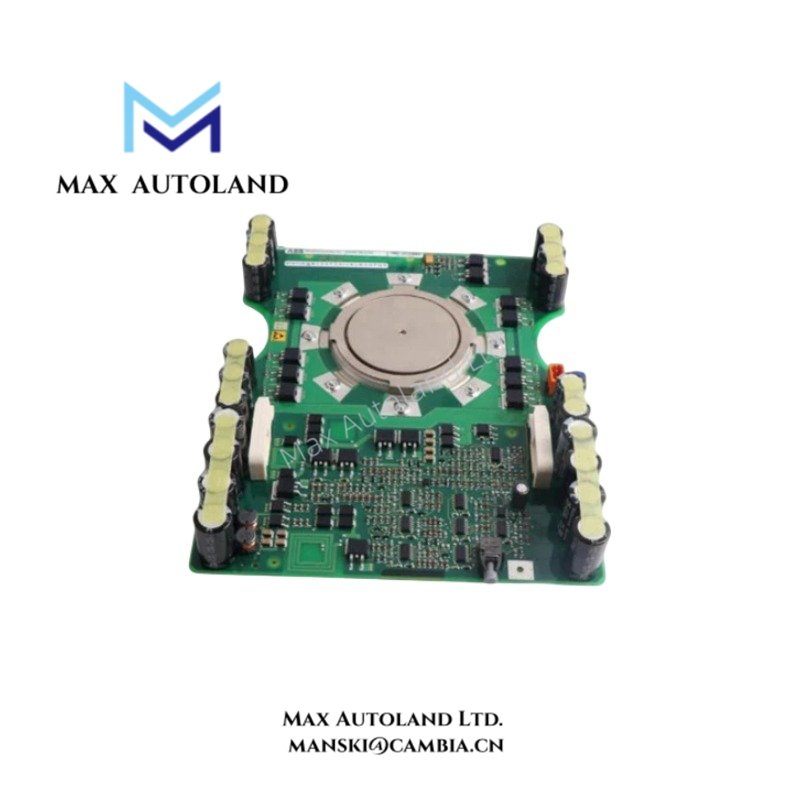

The ABB 5SXE04-0150 3BHB003154R0101 3BHL000390P0104 is an IGCT-related power semiconductor assembly for industrial drive power conversion. The three identifiers are associated with ABB’s IGCT product offering; the supplied product information lists the unit as brand new and in stock, with a 12-month warranty. Before replacement, verify the complete part identification and the installed converter’s electrical and gate-unit configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 5SXE04-0150 |
| Brand | ABB |
| Part Number 1 | 3BHB003154R0101 |
| Part Number 2 | 3BHL000390P0104 |
| Product Type | IGCT Module |
| Semiconductor Type | Integrated Gate-Commutated Thyristor (IGCT) |
| Product Family | ABB Drives |
| Switching Position | Drive power converter stage |
| Gate Interface | Matched ABB gate unit |
| Cooling Interface | Converter heat-sink mounting |
| Electrical Matching | Exact voltage and current class required |
| Dimensions | 35 x 29 x 6.5 cm |
| Weight | 2.56 kg |
| Condition | Brand new |
| Availability | In stock |
| Warranty | 12 months |
Configuration and Replacement
The IGCT is a high-power semiconductor switching device used in power conversion circuits. Its operation depends on the associated gate-control arrangement and the electrical characteristics of the converter. Correct device identification is therefore necessary when selecting a replacement.
Before ordering, check the complete part numbers against the installed assembly and confirm the voltage and current ratings, gate-unit configuration, cooling arrangement, and converter phase position. Do not assume that components with similar part numbers are interchangeable.
Inspection and Commissioning
Before commissioning, verify insulation condition and gate-circuit integrity. After installation, check gate-pulse operation and phase-current balance in accordance with the applicable drive service procedure.
Frequently Asked Questions
Q: What do the three identifiers refer to?
A: The supplied product identification includes 5SXE04-0150, 3BHB003154R0101, and 3BHL000390P0104. Confirm their precise component relationships against the product nameplate or applicable ABB documentation before ordering.
Q: Can this module replace an existing IGCT assembly?
A: Only when the part identification, electrical ratings, gate interface, and converter configuration match the installed equipment. Confirm these details before replacement.
Q: What is the product’s warranty and stock status?
A: The supplied listing states that the product is brand new, in stock, and covered by a 12-month warranty.
