Overview

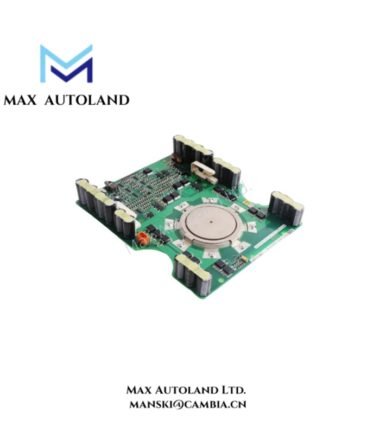

The ABB 3BHL000392R0101 5SHX1060H0001/3BHB003230R0101 5SXE05-0152 is an integrated gate-commutated thyristor (IGCT) power module for industrial drive systems. It acts as a high-power switch in drive converters and controls current flow during power conversion. The module uses a +15 V gate supply and a compatible ABB gate unit for proper operation. In addition, it supports junction temperatures from -40 deg C to +125 deg C and provides 6 kV AC isolation between the gate and main circuits.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | 3BHL000392R0101 / 5SHX1060H0001 / 3BHB003230R0101 / 5SXE05-0152 |
| Semiconductor Type | IGCT |
| Product Family | ABB Drives |
| Maximum DC Voltage | 2,000 V DC |
| Gate Current | 60 A |
| Gate Supply Voltage | +15 V |
| Turn-off Time | ≤ 8 microseconds |
| Capacitance | 5 microfarad (±10%) |
| Thermal Resistance | 0.008 K/W |
| Isolation Voltage | 6 kV AC (gate-to-main circuit) |
| Junction Temperature | -40 deg C to +125 deg C |
| Application | Drive power converter stage |
| Gate Interface | Matched ABB gate unit |
| Cooling Interface | Converter heat-sink mounting |
Frequently Asked Questions
Q: What gate power supply does the ABB 3BHL000392R0101 5SHX1060H0001 IGCT module require?
A: The module uses a +15 V supply for its gate circuit. For proper switching, pair it with a compatible ABB gate unit.
Q: Can this IGCT module work with any ABB drive converter?
A: The module serves as a power switch in ABB Drives converter systems. However, compatibility depends on the specific converter model, gate unit, and heat-sink mounting interface. Therefore, check these details before installation.
Q: What is the maximum DC voltage rating of this IGCT module?
A: The module has a maximum main-circuit voltage rating of 2,000 V DC. Always check the converter’s operating conditions to ensure they remain within the module’s specified limits.
