Overview

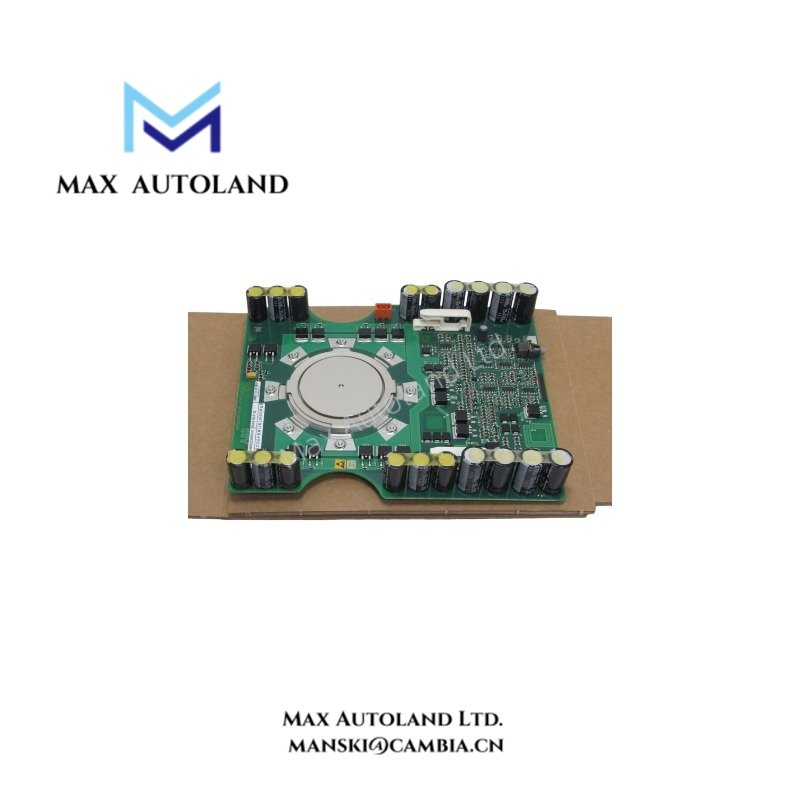

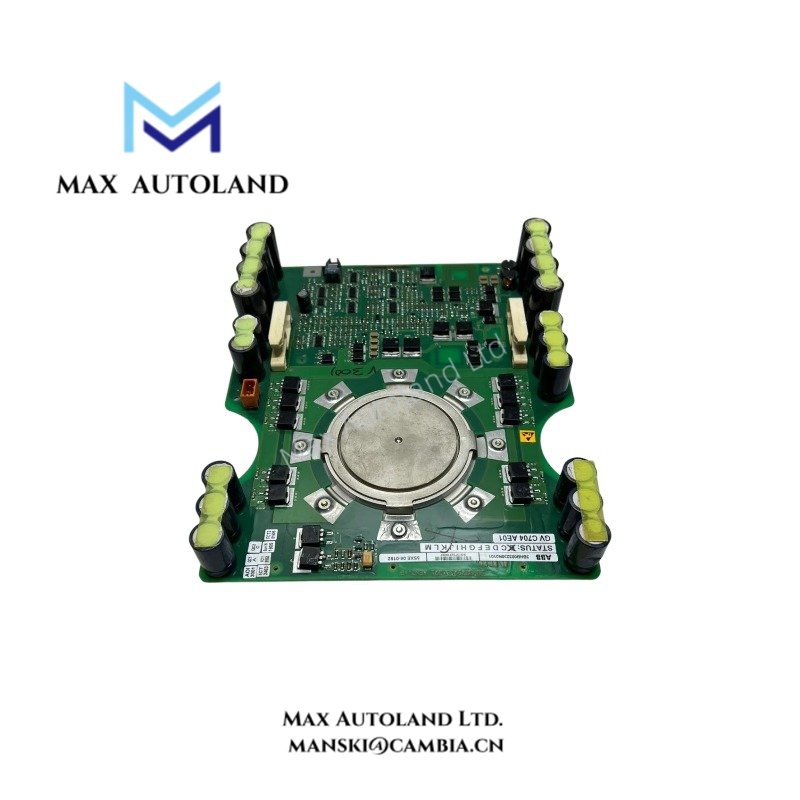

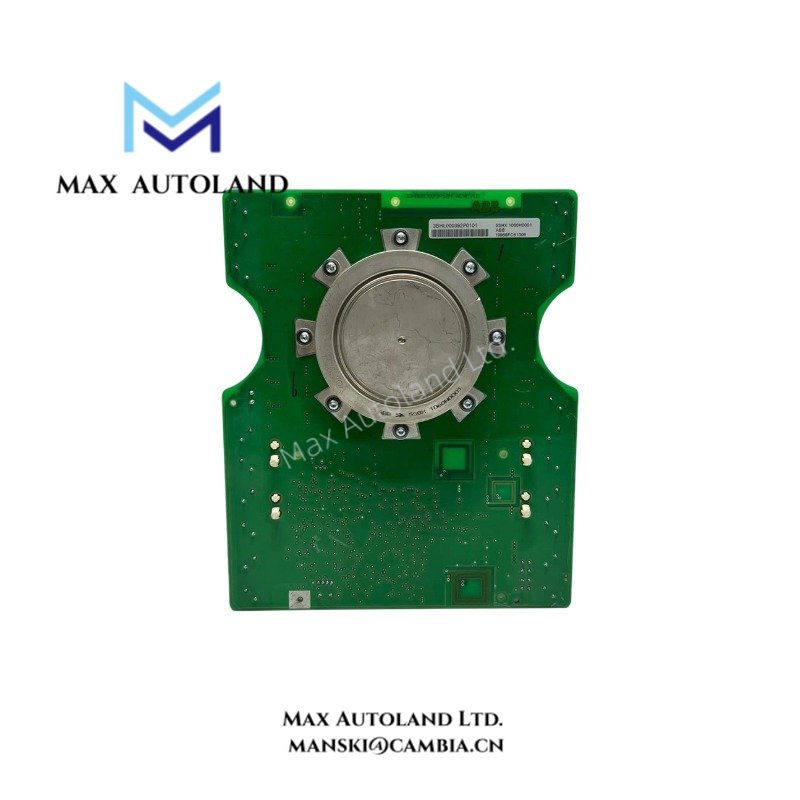

The ABB 3BHL000392R0101 5SHX1060H0001/3BHB003230R0101 5SXE05-0152 is an industrial IGCT power module for ABB Drives. It acts as a high-power switch in the drive’s power converter stage. As a result, it helps control power switching within the converter. The module supports a rated DC voltage of 2,000 V and requires a matching ABB gate unit.
Device Identification
This module carries several order codes. The primary order number is 3BHL000392R0101, while its device designation includes 5SHX1060H0001/3BHB003230R0101 5SXE05-0152. Since ABB drive components may use related codes for an assembly, maintenance and purchasing teams should check each number against the converter bill of materials (BOM) or approved replacement list. This step helps confirm the correct part before ordering.
Electrical and Switching Characteristics
The module has a rated DC voltage of 2,000 V and a gate current of 60 A. Its turn-off time is 8 µs or less, which supports controlled switching in the power converter. In addition, the gate-to-main-circuit isolation rating is 6 kV AC. This rating helps separate the gate circuit from the main power circuit during operation.
Thermal and Mechanical Data
The specified junction temperature range runs from -40 deg C to +125 deg C. The listed thermal resistance is 0.008 K/W, which describes the resistance to heat flow along the specified thermal path. During installation, the module mounts to a converter heat sink. Therefore, technicians should follow the drive manufacturer’s instructions for surface preparation, mounting force and cooling conditions.
Gate Interface and System Integration
The module requires a matching ABB gate unit for correct operation. However, it should not replace a standard thyristor or IGBT without a design review. The gate interface, supply voltage and protection logic must match the original converter design. The specified supply voltage is +15 V, and the listed configuration includes a capacitance of 5 µF ±10%. Before installation, check these values against the relevant drive documentation.
Key Parameters
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Product Model | 3BHL000392R0101 5SHX1060H0001/3BHB003230R0101 5SXE05-0152 |
| Device Designation | 5SHX1060H0001/3BHB003230R0101 5SXE05-0152 |
| Product Family | ABB Drives |
| Semiconductor Type | IGCT |
| Application | Drive power converter stage |
| Rated DC Voltage | 2,000 V DC |
| Supply Voltage | +15 V |
| Gate Current | 60 A |
| Turn-off Time | ≤ 8 µs |
| Isolation Rating | 6 kV AC, gate-to-main circuit |
| Junction Temperature | -40 deg C to +125 deg C |
| Thermal Resistance | 0.008 K/W |
| Capacitance | 5 µF ±10% |
| Gate Interface | Matching ABB gate unit |
| Cooling Interface | Converter heat-sink mounting |
Frequently Asked Questions
Q: Can this module replace other ABB 5SHX IGCT devices?
A: Only when the voltage rating, gate unit, mechanical dimensions and drive requirements match. Therefore, do not select a replacement based on the 5SHX prefix alone. Always check the complete part number.
Q: Does this module include the gate driver?
A: The specifications identify a matching ABB gate unit as the required interface. However, they do not confirm whether the gate unit comes with the module. Check the original drive documentation or supplier packing list before ordering.
Q: What should technicians check before installation?
A: First, verify the full order code and converter type. Next, confirm gate unit compatibility and the +15 V supply requirement. Finally, inspect the heat sink and follow the manufacturer’s mounting instructions. These checks help prevent incorrect installation and switching problems.
