Overview
Specification
| Parameter | Specification |
|---|---|

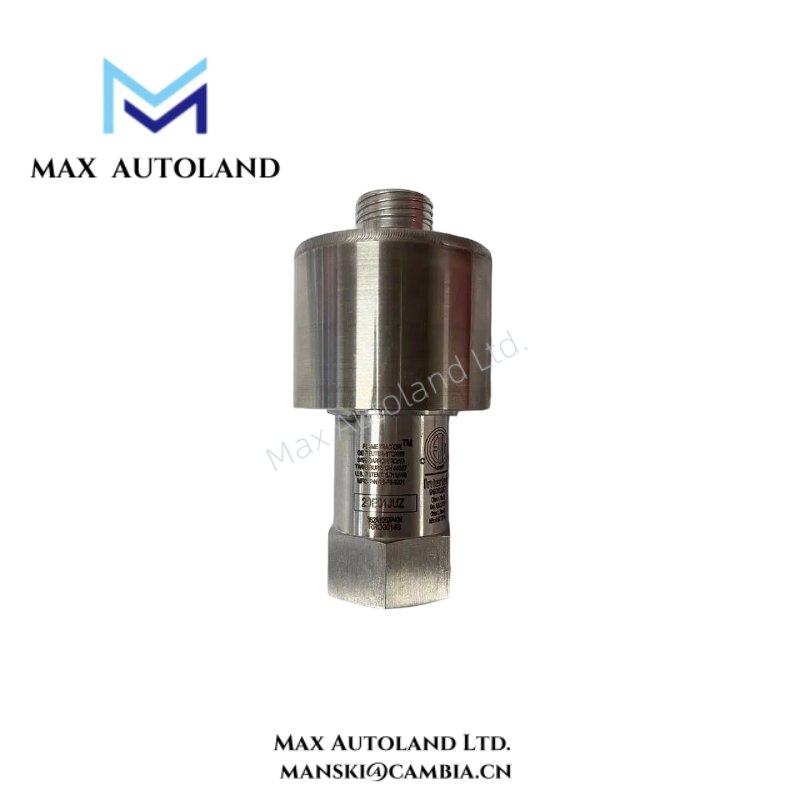

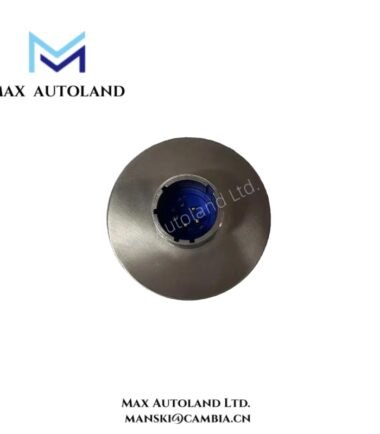

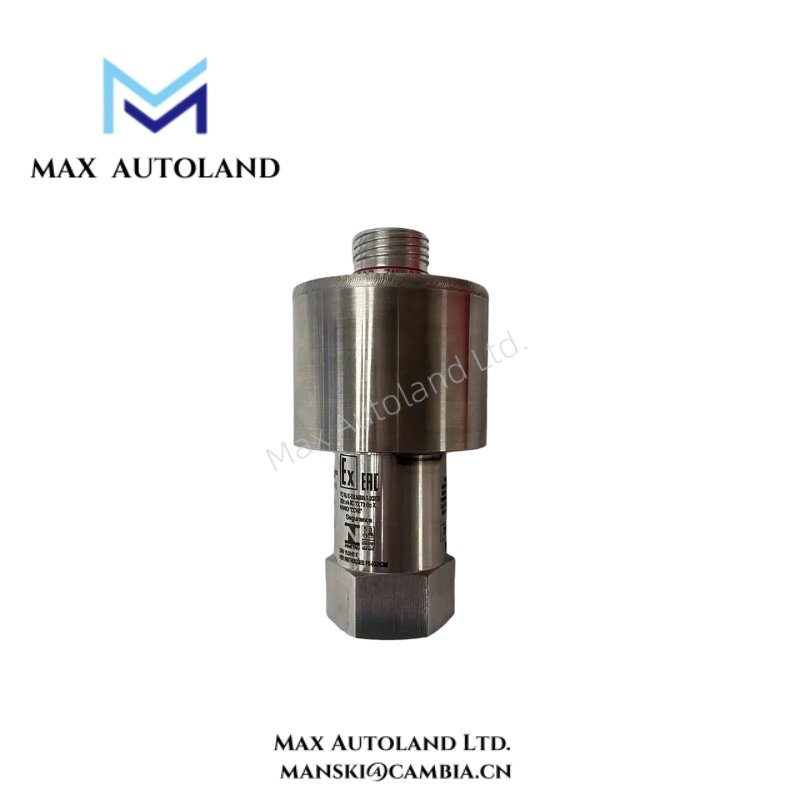

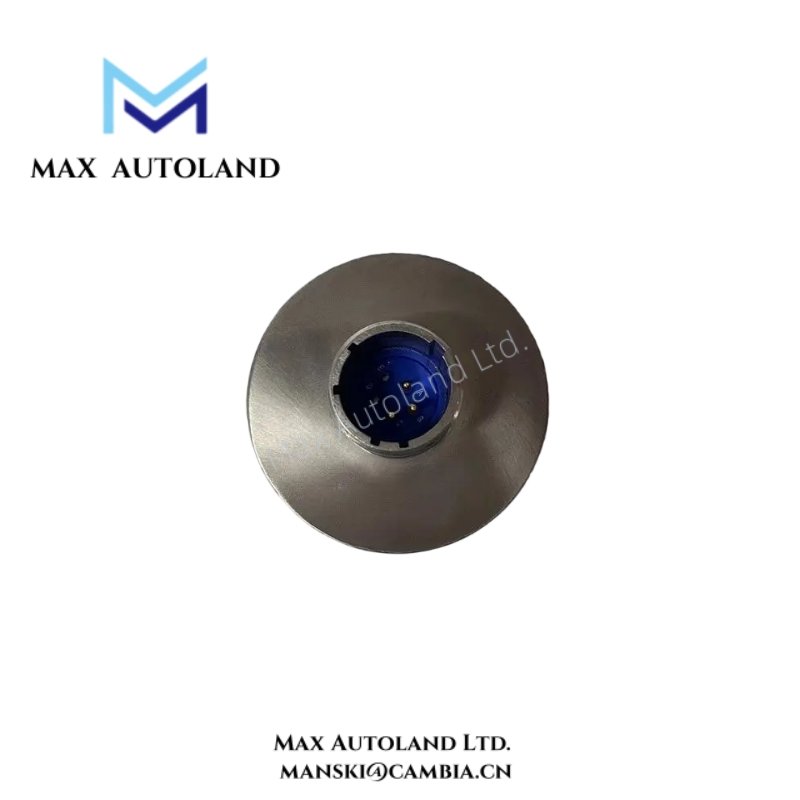

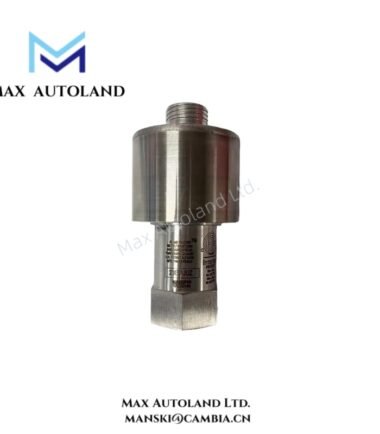

| Model | GE Flame Tracker |
| Part Number | 362A1052P404 |
| Detection Method | Ultraviolet (UV) and Infrared (IR) flame sensing |
| Fuel Compatibility | Natural gas, propane, oil, and other liquid fuels |
| Sensitivity | Adjustable sensitivity to detect low-intensity flames |
| Response Time | < 100 milliseconds typical for flame loss detection |
| Signal Output | Relay contact (normally open/closed) for flame fail; optional 4–20 mA analog output |
| LED Indicators | Green = flame present; Red = flame fail; Yellow = system fault |
| Operating Temperature | –20°C to 85°C (–4°F to 185°F) |
| Storage Temperature | –40°C to 100°C (–40°F to 212°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | Up to 5 g RMS, 10–500 Hz |
| Enclosure Rating | NEMA 4X / IP66 rated for dust and water protection |
| Mounting Options | Panel mount, wall mount, or duct mount |
| Power Supply | 24 VDC nominal, operating 20–28 VDC, max 150 mA |
| Electrical Connections | Screw terminal blocks or optional connector interface |
| Diagnostics | Built-in self-test with LED status indication |
| Response to Flame Loss | Instant alarm relay actuation and optional analog output |
| Certifications | CE, UL, CSA, FM compliant |
| Dimensions | Approx. 110 mm × 85 mm × 55 mm (4.3 × 3.3 × 2.2 in) |
| Weight | ~0.6 kg (1.3 lbs) |
| Optional Features | Remote test input, alarm delay adjustment, signal conditioning for long cable runs |
| Environmental Compliance | RoHS and REACH compliant |
FAQ
It supports gas, oil, and other liquid fuels for combustion systems.Q2: How fast does the Flame Tracker detect flame failure?
It typically responds in less than 100 milliseconds to flame loss.
Q3: Can it operate in harsh industrial environments?
Yes, it is designed to withstand high temperatures, vibration, and contaminants.
Q4: What outputs are available for system integration?
It provides relay contacts and optional analog output for control systems.
Q5: Is installation flexible for different applications?
Yes, it supports panel, wall, or duct mounting configurations.
Q6: Does it include diagnostic features for maintenance?
Yes, integrated self-test diagnostics and LED indicators simplify troubleshooting.
