Overview

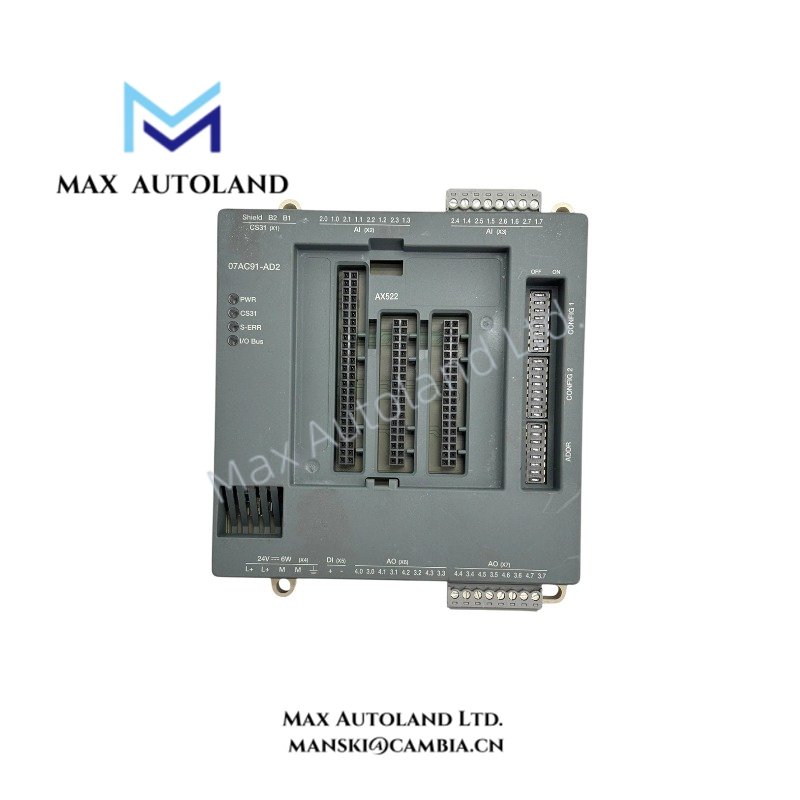

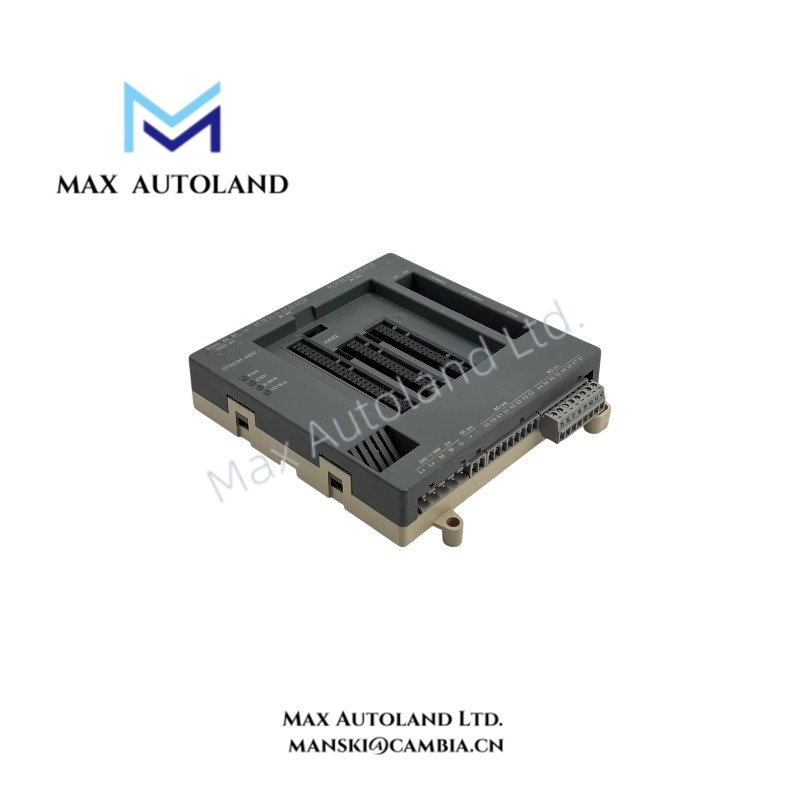

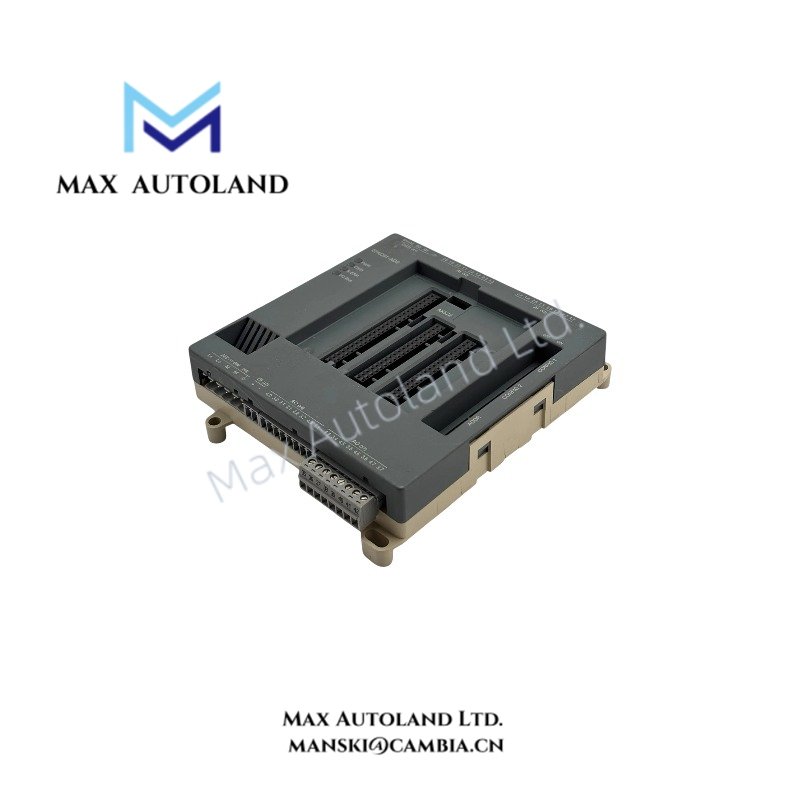

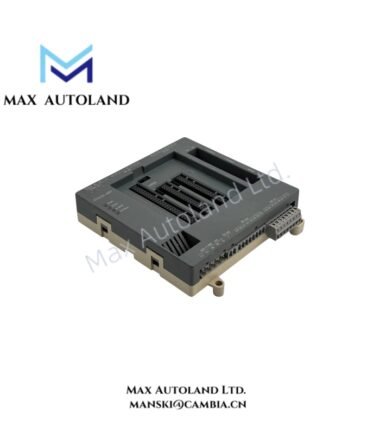

The ABB 07AC91-AD2, based on the 07AC91 model designation, is described as an analog input/output module for the Advant Controller 31 (AC31) automation system. It interfaces configurable voltage and current signals with the controller through the CS31 system bus. The supplied specifications indicate 8 analog input channels and 8 analog output channels with 12-bit plus sign resolution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 07AC91-AD2 |
| Brand | ABB |
| Product Type | Analog Input/Output Module |
| Series | Advant Controller 31 (AC31), as supplied |
| Communication Bus | CS31 system bus, as supplied |
| Analog Inputs | 8 channels, as supplied |
| Analog Outputs | 8 channels, as supplied |
| Signal Types | Voltage and current, configurable |
| Resolution | 12-bit plus sign, as supplied |
| Power Supply | 24 VDC +/- 10%, as supplied |
| Wiring | 2-wire and 3-wire connections, as supplied |
| Terminals | Pluggable terminal blocks, as supplied |
| Isolation | 1500 VAC, as supplied; isolation boundaries require verification |
| Operating Temp | 0 to 55 deg C, as supplied |
PLC I/O Signal Processing and Bus Compatibility
Analog input channels convert field voltage or current signals into digital values for controller processing. Analog output channels provide electrical reference signals to compatible field devices.
The stated CS31 bus interface requires compatibility with the target AC31 controller configuration. Before commissioning, verify the module’s supported signal ranges, channel configuration, bus addressing, and electrical connection requirements against the manufacturer’s documentation. The supplied resolution and channel count should also be checked against the exact 07AC91-AD2 hardware revision.
Frequently Asked Questions (FAQ)
Q: What analog signals does the 07AC91-AD2 support?
A: The supplied information identifies configurable voltage and current signals. Exact input and output ranges are not specified and require confirmation from the manufacturer’s documentation.
Q: Can the module be connected to a 24 VDC supply?
A: The supplied specifications state 24 VDC +/- 10%. Confirm the correct power terminals and supply requirements for the exact hardware version before energizing the module.
Q: Is the 07AC91-AD2 hot-swappable?
A: Hot-swap capability is not established by the supplied information. Isolate the relevant power and field circuits before removal unless the manufacturer explicitly permits energized replacement.
Field Installation Guidelines
- Verify the complete model number and hardware revision before installation.
- Confirm controller compatibility, CS31 bus connections, and module addressing using the applicable ABB documentation.
- Check the field signal type and range before connecting voltage or current circuits.
- Separate analog signal wiring from power cables and high-noise switching circuits where practicable.
- Apply cable shielding and grounding according to the manufacturer’s installation instructions and the plant grounding design.
- Verify supply polarity, terminal assignments, and protective grounding before energization.
- Check channel configuration and signal values during commissioning. Do not apply field signals until the electrical ratings have been confirmed.
