Overview

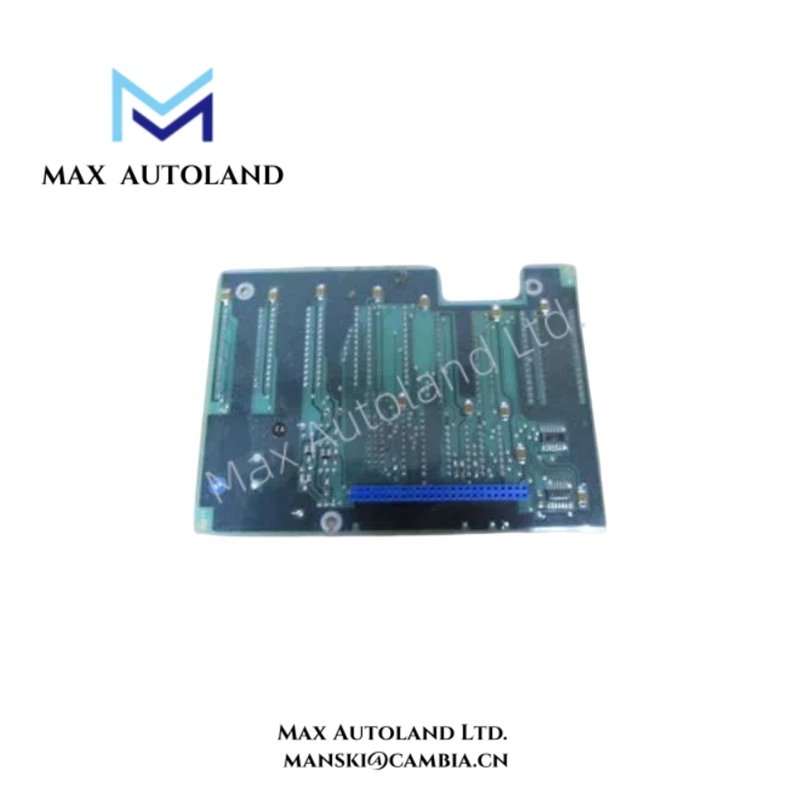

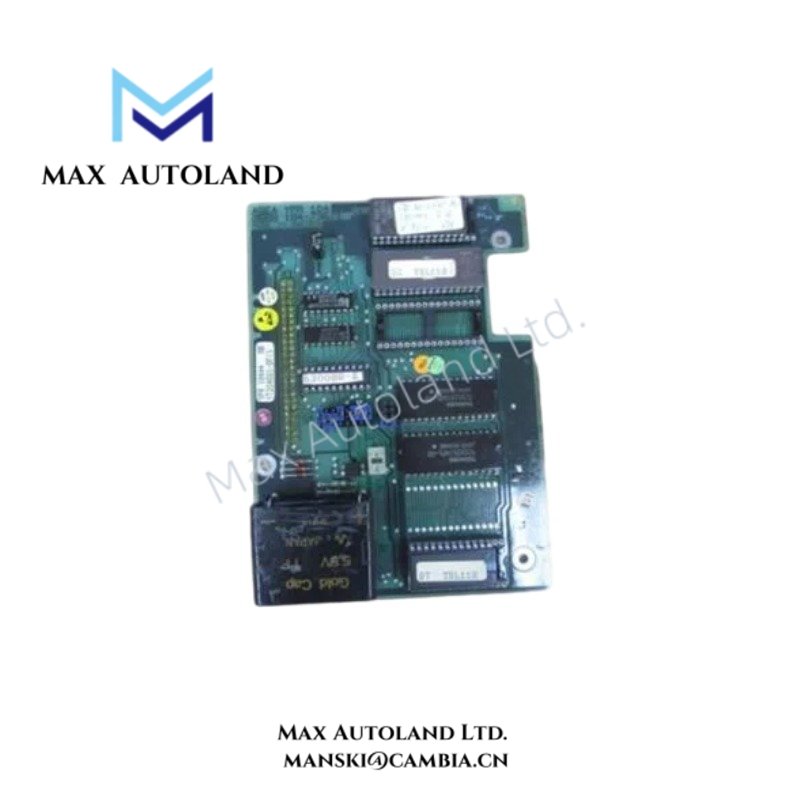

Configured for analog signal acquisition in ABB industrial control systems, the ABB YPG109E 3ASD273001B3 (3ASD273001B3 Analog Input Board) provides direct electrical conversion of voltage, current, and RTD input signals. The board supports 0-10 V, 0-20 mA, Pt100, and Pt1000 inputs with 16-bit resolution and a 10 ms/channel sampling rate. It operates from 24 VDC power and provides specified channel isolation for field-side signal connections.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | YPG109E 3ASD273001B3 |
| Spare Model | 3ASD273001B3 |
| Product Type | Analog Input Board |
| Brand | ABB |
| Manufacturer | ABB |
| Tariff Code | 8537101190 |
| Origin | USA |
| Weight | 0.1 kg |
| Dimensions | 14.8 x 7.5 x 1.2 cm |
| Operating Temp | -15 deg C to +55 deg C |
| Humidity | 5-95% RH, non-condensing |
| Altitude | <= 2000 m |
| Power Supply | 24 VDC (+/-10%) |
| Power Consumption | <= 4 W |
| Voltage Input | 0-10 V |
| Current Input | 0-20 mA |
| RTD Input | Pt100 / Pt1000 |
| Resolution | 16-bit |
| Sampling Rate | 10 ms/channel |
| Voltage Input Resistance | >= 1 Mohm |
| Current Input Resistance | 250 ohm +/-0.1% |
| Channel-to-Channel Isolation | 300 VAC |
| Channel-to-Backplane Isolation | 1500 VAC |
ABB I/O Density and Backplane Integration
The YPG109E 3ASD273001B3 concentrates multiple analog signal types within a single board interface. It processes voltage, current, and resistance temperature detector inputs through dedicated signal acquisition circuitry. The specified channel-to-channel isolation of 300 VAC reduces electrical interaction between connected field circuits.
In addition, the 1500 VAC channel-to-backplane isolation separates field-side signals from the controller-side backplane interface. The board therefore supports structured I/O density scaling while maintaining defined electrical boundaries between field wiring and system hardware.
Frequently Asked Questions
Q: Which analog input signals does the YPG109E 3ASD273001B3 support?
A: The board supports 0-10 V voltage signals, 0-20 mA current signals, and Pt100 or Pt1000 RTD resistance inputs.
Q: What conversion performance does the board provide?
A: The YPG109E 3ASD273001B3 provides 16-bit resolution and a sampling rate of 10 ms per channel.
Q: What isolation values are specified for the input circuits?
A: The specified channel-to-channel isolation is 300 VAC, while channel-to-backplane isolation is 1500 VAC.
Field Installation Guidelines
- Verify that the external supply remains within 24 VDC +/-10% before energizing the board.
- Disconnect system power before inserting or removing the Analog Input Board unless the host system explicitly supports powered replacement.
- Route analog signal cables separately from high-current switching and motor power conductors.
- Use shielded wiring where required by the connected field instrument and site wiring specification.
- Terminate cable shields according to the control system grounding architecture to avoid ground-loop current.
- Confirm the input type before connecting voltage, current, Pt100, or Pt1000 field circuits.
- Do not apply signals outside the specified input ranges to the board terminals.
- Inspect connector seating and backplane engagement before system startup.
- Maintain the specified operating environment, including temperature, humidity, and altitude limits.
