Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

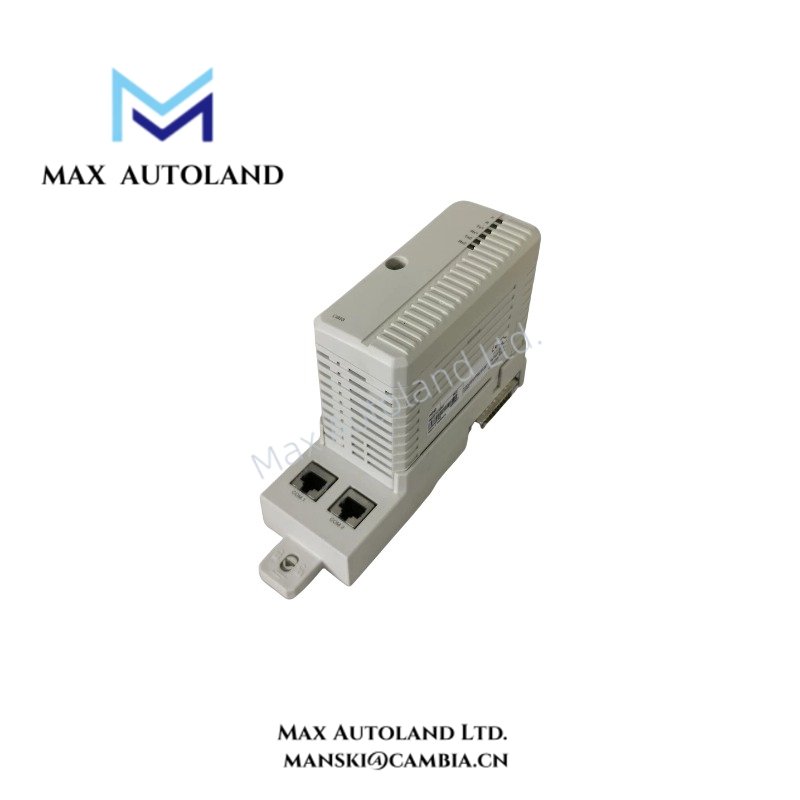

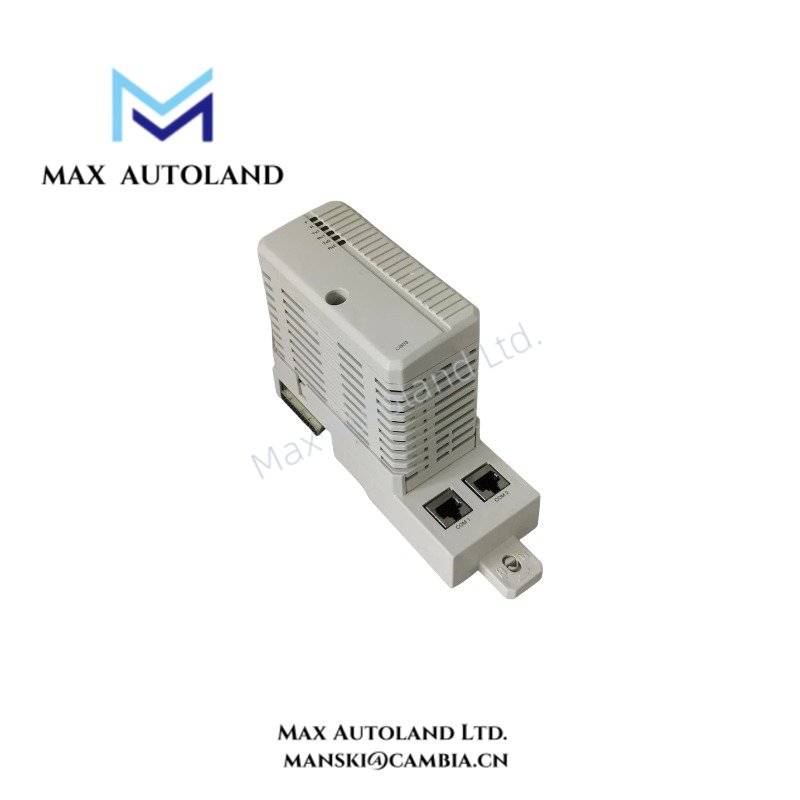

| Model | CI870K01 (3BSE088499K1) |
| Brand | ABB |
| Origin | Sweden |
| Product Type | VIP Communication Interface Module |
| System Compatibility | ABB AC 800M / AC 800xA M/PEC control systems |
| Communication Function | VIP interface communication |
| Weight | 0.5 kg |
| Dimensions | 59 mm W x 127.5 mm H x 185 mm D |
| Gross Volume | 1.392 dm3 |
| Associated Baseplate | TP853 Baseplate, 60 mm width |
Backplane Bus Communication and Firmware Compatibility
The ABB CI870K01 operates within ABB industrial control architectures through dedicated interface communication paths. The module exchanges control data through the system communication structure and maintains compatibility with AC 800M and AC 800xA platforms.
Additionally, the module supports industrial control expansion by maintaining defined hardware integration with ABB controller environments. Therefore, system engineers can integrate the CI870K01 with corresponding baseplate assemblies, including the TP853 mounting base, according to the configured hardware layout.
Frequently Asked Questions
Q: What is the primary function of the ABB CI870K01 module?
A: The CI870K01 functions as a VIP Communication Interface Module for ABB AC 800M and AC 800xA M/PEC control systems. It handles interface communication between system components.
Q: Which baseplate is associated with the CI870K01 module?
A: The standard package includes the TP853 baseplate with a 60 mm width for mechanical mounting and electrical connection.
Q: Does the CI870K01 support direct installation in ABB AC 800M systems?
A: Yes. The module is designed for integration within ABB AC 800M / AC 800xA control system hardware configurations. Installation requires the correct mounting base and approved system configuration.
Field Installation Guidelines
- Install the CI870K01 on the specified ABB mounting base and verify mechanical alignment before applying power.
- Confirm that the module connector surfaces remain clean and free from contamination before installation.
- Route communication wiring separately from high-voltage power cables to reduce electromagnetic interference.
- Connect cable shields according to the plant grounding standard and maintain consistent grounding practices.
- Verify controller configuration parameters before placing the module into operational service.
- Check module status indicators after startup to confirm correct hardware initialization.
