Overview

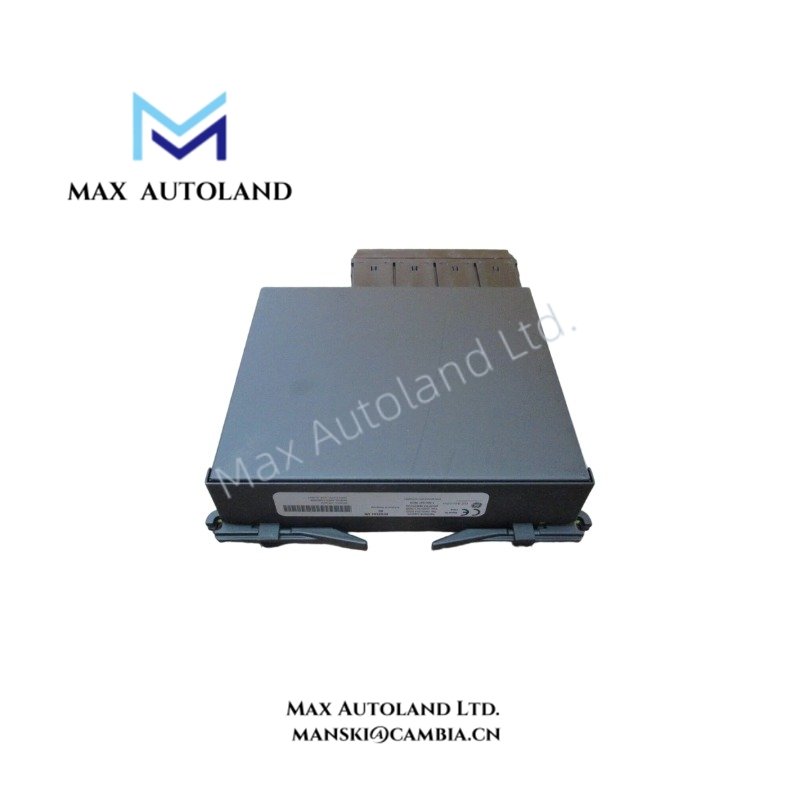

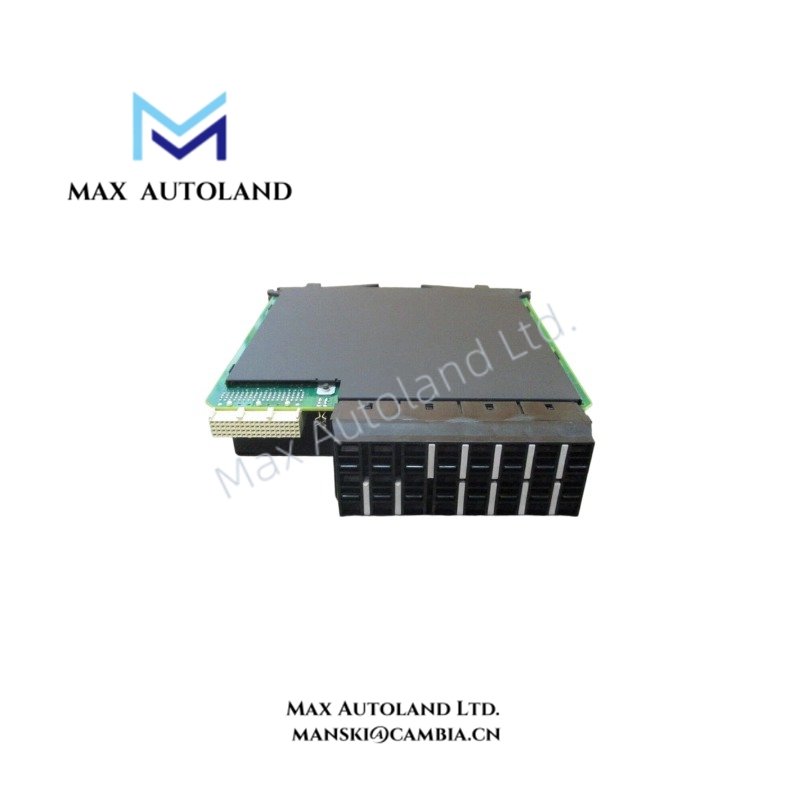

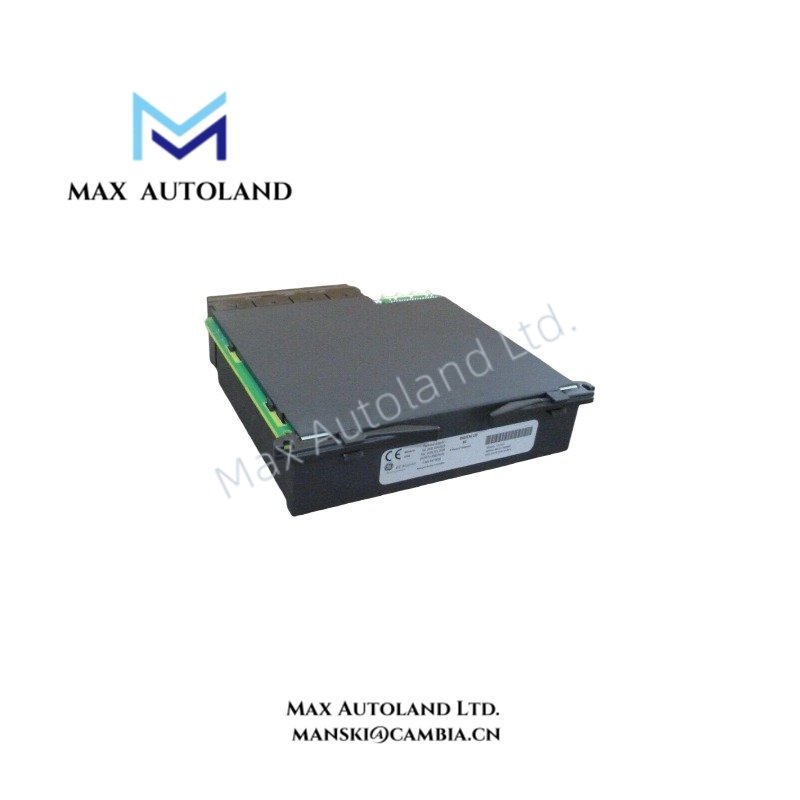

Configured for current and voltage signal acquisition in GE Multilin Universal Relay platforms, the GE UR6CV (UR6CV CT/VT Module) provides direct physical/electrical measurement interface for protection and metering functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | UR 6CV |
| Brand | General Electric |
| Product Type | CT/VT Module |
| Origin | USA |
| Weight | 0.95 kg |
| Dimensions | 4 x 18.5 x 17.2 cm (shipping size) |
| Operating Temp | -40 to +70 deg C (with UR chassis fan) |
| Storage Temp | -40 to +85 deg C |
| Humidity | 5 to 95 % RH non-condensing |
| Power Consumption | Not specified |
| Current Channels | 4 |
| Voltage Channels | 3 (VA, VB, VC) |
| Current Input Burden | < 0.05 VA at 1 A |
| Continuous Current Rating | 20 A (1 A) / 100 A (5 A) |
| Short-time Current Rating | 500 A for 1 s |
| Measurement Accuracy | +/- 0.2 % reading |
| Tariff Code | 8537101190 |
| Shipment Location | Xiamen, China |
GE Multilin UR Platform Communication and I/O Compatibility
The UR6CV CT/VT Module is designed for integration with GE Multilin Universal Relay systems through the relay chassis backplane interface. The module processes analog current transformer and voltage transformer signals for relay measurement functions.
Moreover, GE UR series modules support modular I/O density scaling through chassis-based configurations. The UR6CV maintains firmware flash compatibility with supported Universal Relay platforms and exchanges measurement data through the internal relay architecture.
The module provides four current measurement channels and three voltage channels, allowing phase voltage acquisition through VA, VB, and VC inputs. Therefore, it supports protection element calculations requiring synchronized electrical parameter sampling.
Frequently Asked Questions
Q: What input signals are supported by the GE UR6CV module?
A: The UR6CV supports four CT current input channels and three VT voltage input channels identified as VA, VB, and VC.
Q: What is the continuous current capability of the UR6CV current inputs?
A: The module supports continuous operation at 20 A for 1 A inputs and 100 A for 5 A inputs.
Q: Can the UR6CV operate in high-temperature relay installations?
A: The module supports an operating temperature range of -40 to +70 deg C when installed with the UR chassis fan.
Field Installation Guidelines
- Install the UR6CV module only in compatible GE Multilin Universal Relay chassis positions.
- Verify CT and VT wiring polarity before connecting external measurement circuits.
- Use shielded signal wiring where required by the installation environment and terminate shields according to site grounding practices.
- Separate low-level measurement wiring from high-energy switching circuits to reduce electrical interference.
- Confirm current transformer secondary circuits are correctly terminated before energizing the relay system.
- Check module seating and backplane connection integrity before system commissioning.
