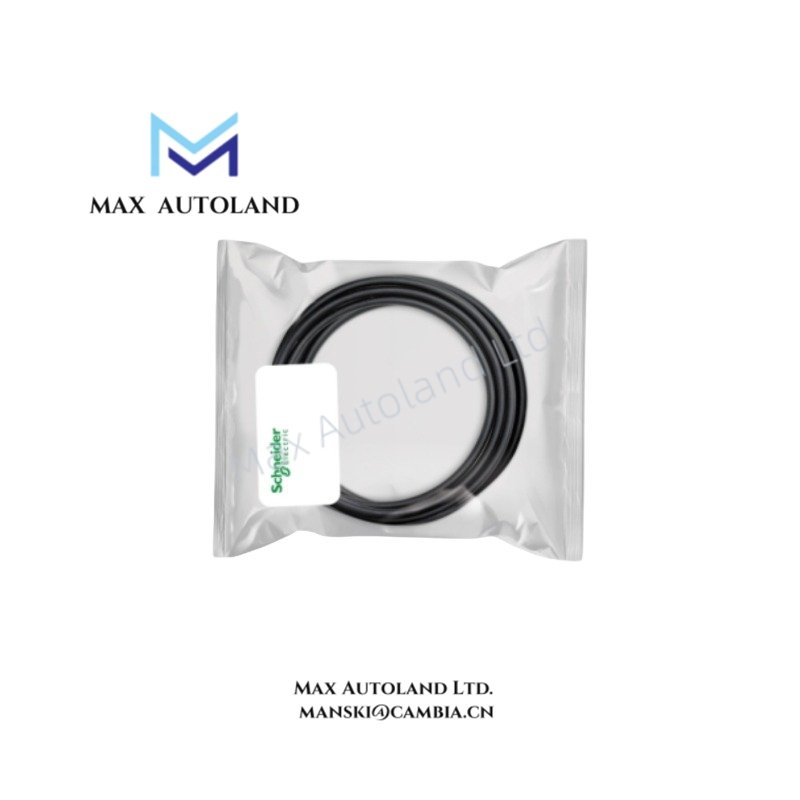

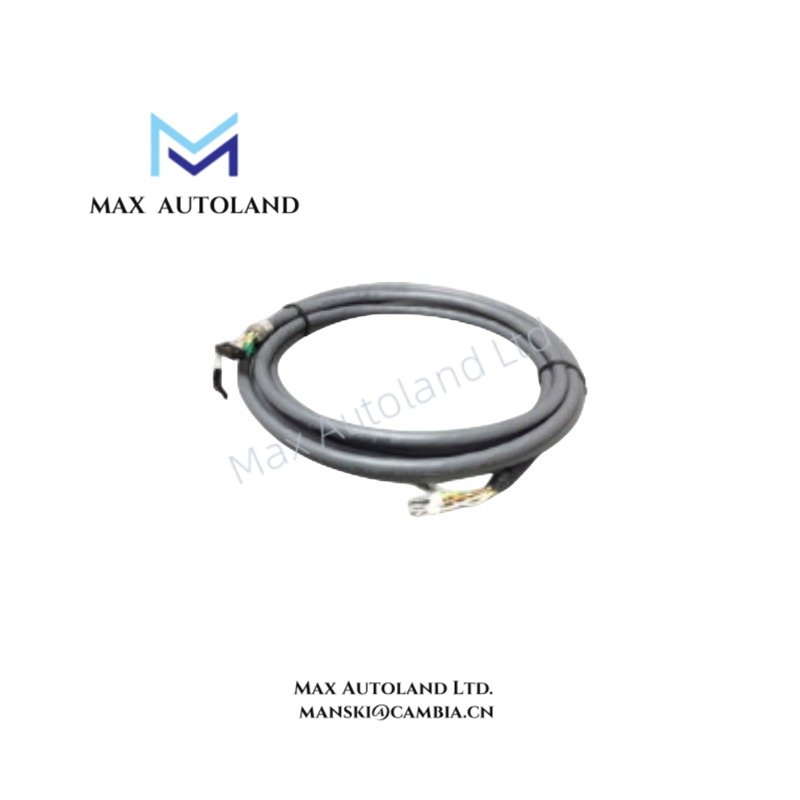

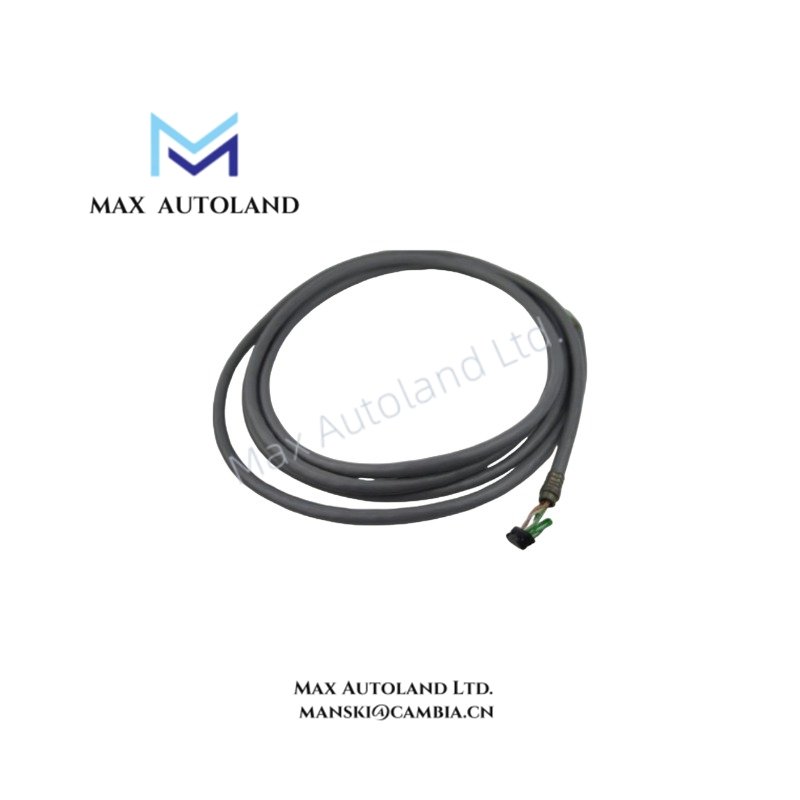

Configured for establishing isolated RS422/485 tap links within Modicon Premium automation platforms, the Schneider Electric TSXSCPCM4030 (TSXSCPCM4030 Modbus connecting cable) provides direct physical termination to passive junction boxes via flying lead terminations.
Suffix Breakdown & Model Matrix
| Code | Definition |
|---|---|
| TSX | Modicon TSX Series Hardware |
| SC | Serial Communication Accessory |
| PCM | Profibus / Modbus Plus Connectivity Module |
| 4030 | 3 m cable length variant for passive junction box |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TSXSCPCM4030 |
| Brand | Schneider Electric |
| Origin | TN |
| Weight | 0.35 lb (0.16 kg) |
| Dimensions | 3 m (9.84 ft) cable length |
| Operating Temp | Industrial grade (refer to system host) |
| Power Consumption | Passive (Bus powered via link) |
| Cable Length | 3 m (9.84 ft) |
| Connector Type | Flying leads |
| Protocol | Modbus (RS422/485) |
| Compatibility | TSXSCP114, TSXSCA50 |
Backplane Bus Integration
The TSXSCPCM4030 supports deterministic Modbus communication cycles over isolated RS485 networks. Firmware flash compatibility is maintained with the TSX Premium series backplane architecture. The passive design ensures signal integrity without introducing additional power supply noise or ground loop currents into the distributed I/O network.
Frequently Asked Questions
Q: Does this cable support hot-swapping during system operation?
A: No. As a passive cabling assembly with flying leads, it requires system power-down and termination torque verification before installation or removal.
Q: Is the TSXSCPCM4030 compatible with newer Modicon M340 or M580 platforms?
A: No. This specific cable is designed exclusively for the legacy Modicon Premium platform and passive junction boxes such as the TSXSCA50.
Q: What is the recommended shielding practice for this cable?
A: The cable shield must be terminated at the passive junction box end according to Schneider Electric grounding practices to prevent EMI ingress on the RS485 differential pair.
Field Installation Guidelines
Ensure all flying leads are terminated with appropriate ferrules and torqued to the passive junction box specifications. Maintain a minimum separation of 300 mm from high-voltage power cables to mitigate electromagnetic interference. Verify continuity and insulation resistance prior to energizing the Modbus network.
