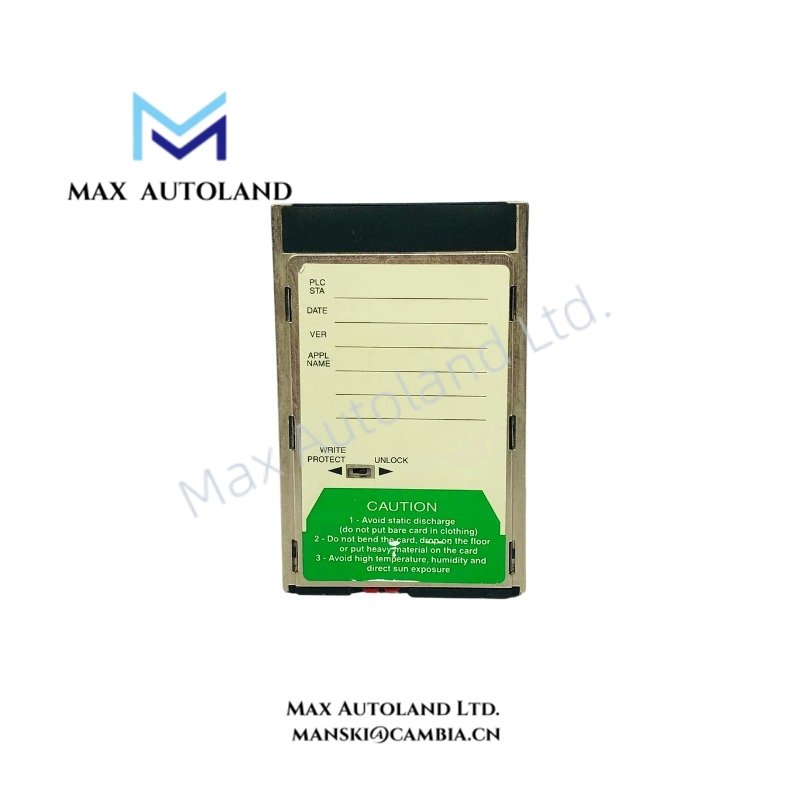

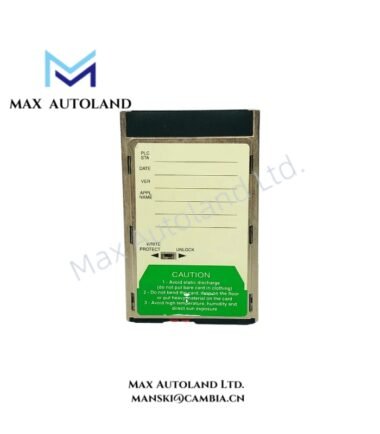

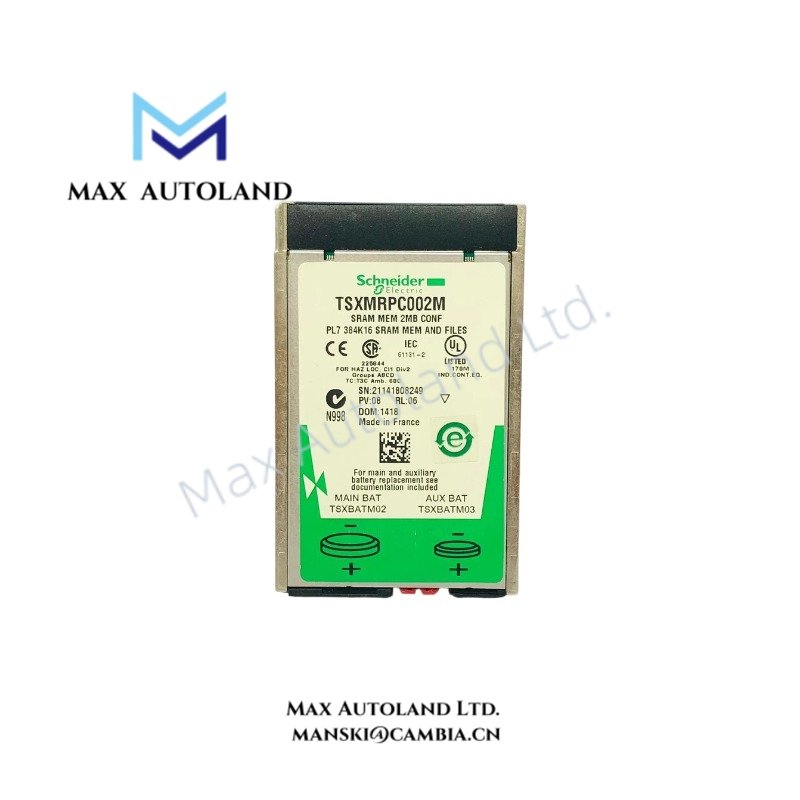

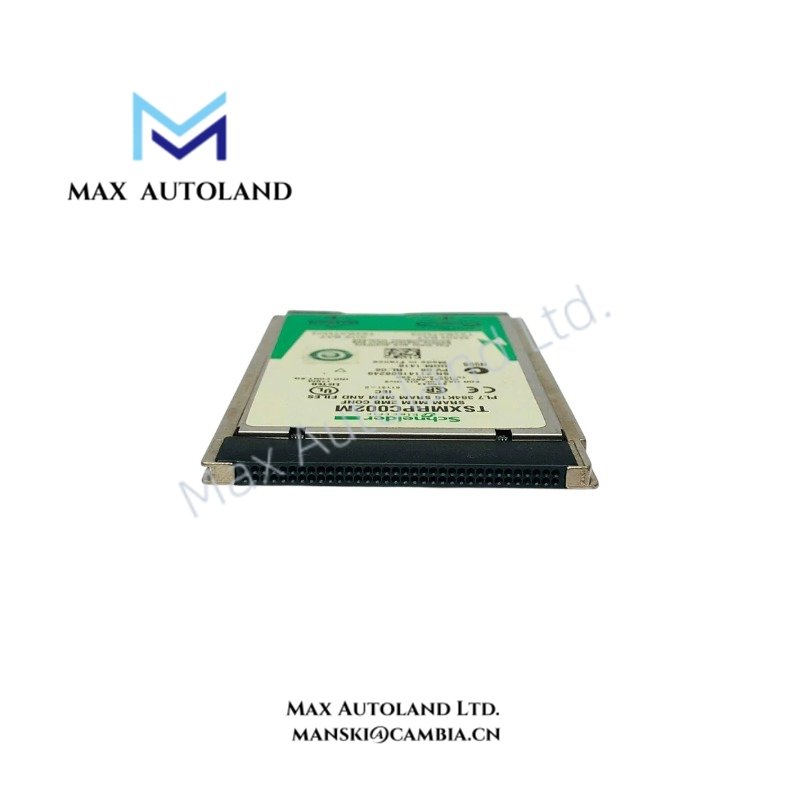

Configured for configurable application and file memory extension in Modicon Premium automation platforms, the Schneider Electric TSXMRPC002M (TSXMRPC002M SRAM Memory Card) provides direct physical memory expansion for compatible processor modules.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TSXMRPC002M |
| Brand | Schneider Electric |
| Origin | Not specified |
| Product Type | SRAM Memory Card |
| Series | Modicon Premium Automation Platform |
| Memory Type | SRAM |
| Application Memory Capacity | 192…2048 kB |
| Data Storage Capacity | 0…1856 kB |
| Compatible Processors | TSX570 to TSX576, TSX57C, TSXPCI572/3 |
| Installation Slot | Slot 0 |
| Accessory Type | Memory extension |
| Destination | Processor |
| Weight | 0.076 kg (0.17 lb) |
| Dimensions | 0.3 cm x 5.7 cm x 7.6 cm |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
PLC Memory Architecture and Backplane Integration
The TSXMRPC002M is designed for Modicon Premium PLC processor memory expansion, providing SRAM-based storage for application programs and data files. The memory card operates as a processor-associated accessory installed in the dedicated slot position.
For Schneider Electric PLC systems, memory architecture management includes backplane bus communication velocity licensing, firmware flash compatibility, and processor-resource allocation. The TSXMRPC002M extends available application storage while maintaining processor-level access to configured PLC programs and retained data areas.
Frequently Asked Questions
Q: Which PLC processor families are compatible with the TSXMRPC002M?
A: The TSXMRPC002M is specified for compatibility with TSX570 to TSX576 processors, TSX57C processors, and TSXPCI572/3 processor modules within the Modicon Premium platform.
Q: What type of memory technology is used in the TSXMRPC002M?
A: The TSXMRPC002M uses SRAM memory technology and provides configurable storage allocation for application files and data storage.
Q: Can the TSXMRPC002M be installed in any processor slot?
A: The specified installation position is Slot 0 of the compatible processor module. Installation should follow the processor hardware manual requirements.
Field Installation Guidelines
- Verify processor compatibility before installation.
- Install the SRAM memory card only in the designated processor memory slot.
- Handle the memory card using standard ESD protection procedures to prevent static discharge damage.
- Ensure the PLC rack power state follows the applicable Modicon Premium installation procedure before inserting or removing the module.
- Maintain proper cabinet grounding and keep memory-related components away from high-noise power wiring.
- Confirm application backup and memory configuration settings before commissioning the PLC system.
