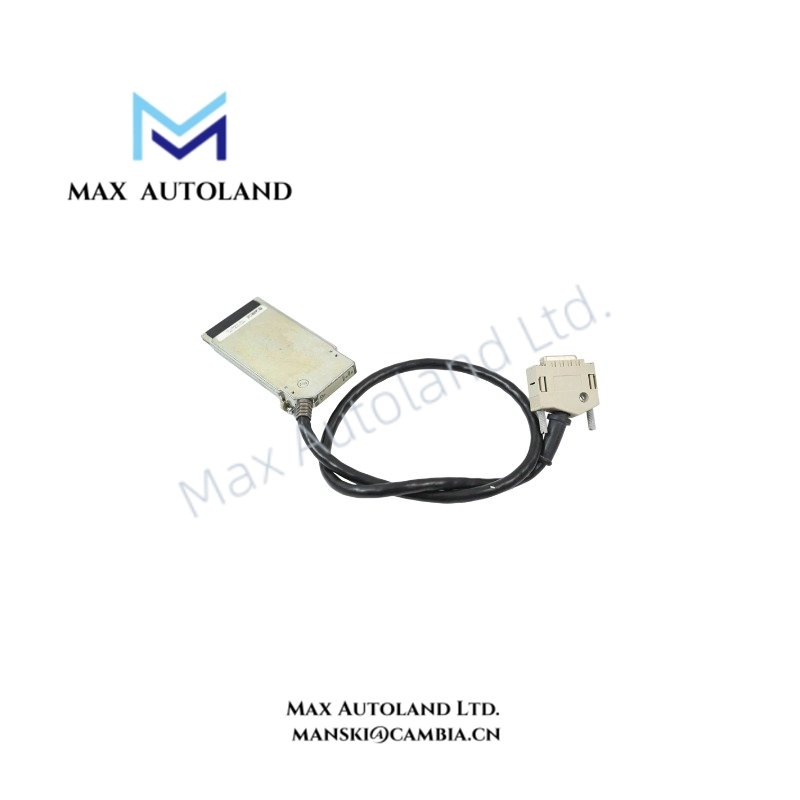

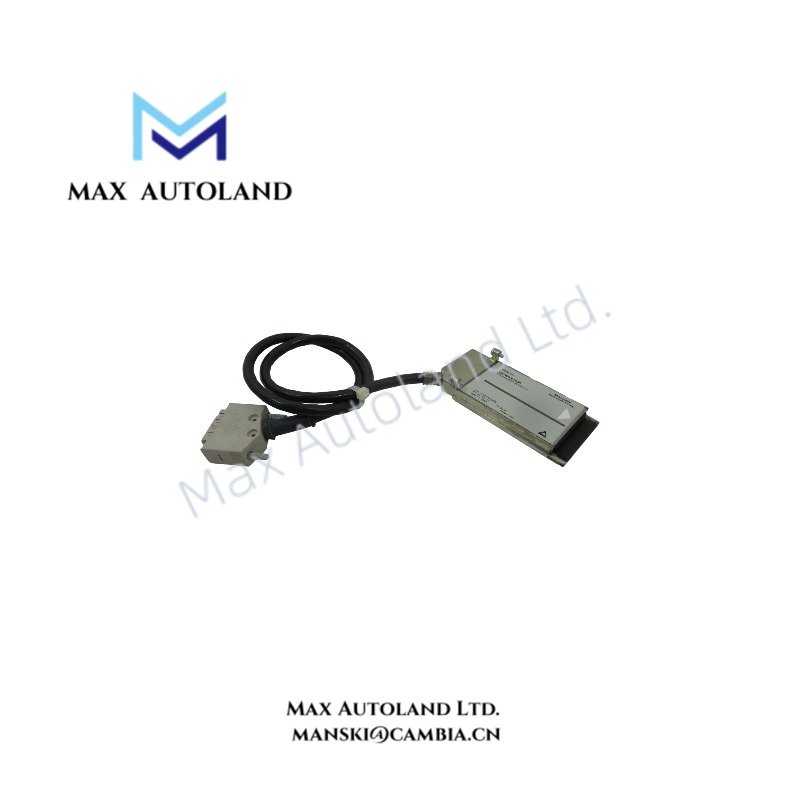

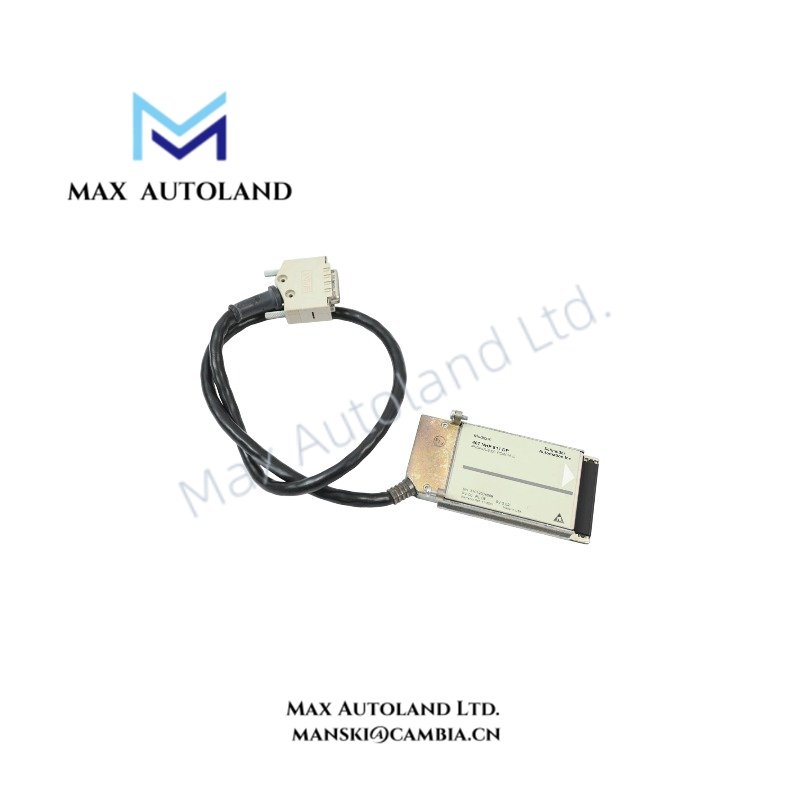

The Schneider Electric 467 NHP 811 DP, also cataloged as the 467 NHP 811 DP Communication Card, operates as a dedicated hardware component for PROFIBUS DP data communication within Modicon automation system platforms. The module provides network connectivity with PROFIBUS DP protocol support and a maximum transmission rate of 12 Mbps.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 467 NHP 811 DP |
| Brand | Schneider Electric |
| Product Type | Communication Card |
| Product Series | Modicon |
| Communication Protocol | PROFIBUS DP |
| Maximum Baud Rate | 12 Mbps |
| Connection Type | Female Connector |
| Cable Length | 2 ft |
| Protection Class | IP20 |
| Weight | 0.20 kg (0.44 lb) |
| Dimensions | Not specified |
| Operating Temp | 0 deg C to 40 deg C |
| Power Consumption | Not specified |
| Operating Humidity | Maximum 80% RH, non-condensing |
| Storage Humidity | Maximum 80% RH |
| Maximum Operating Altitude | 1000 m above sea level |
Industrial Control Network Communication Characteristics
The Schneider Electric 467 NHP 811 DP is designed for Modicon PLC network expansion through PROFIBUS DP communication. The module handles cyclic and acyclic data exchange between the automation controller and connected PROFIBUS DP devices.
For industrial control architecture integration, PROFIBUS DP network timing is dependent on bus configuration, node quantity, cable characteristics, and communication parameters. The module supports a maximum communication speed of 12 Mbps for high-speed fieldbus data exchange.
The communication interface uses a female connector arrangement for external network connection. Proper cable shielding, grounding, and routing separation from high-voltage conductors are required to maintain signal integrity in industrial environments.
Frequently Asked Questions
Q: Does the 467 NHP 811 DP support PROFIBUS DP communication only?
A: The available specifications identify PROFIBUS DP as the supported communication protocol. No additional communication protocol support is specified.
Q: Can the module operate outside the specified ambient temperature range?
A: The specified operating temperature range is 0 deg C to 40 deg C. Operation outside this range requires system-level environmental verification.
Q: What installation practices are required for the communication cable?
A: PROFIBUS DP cable routing should maintain separation from high-noise power wiring, and cable shielding should be connected according to the system grounding design.
Field Installation Guidelines
- Install the communication card according to the Modicon system hardware configuration requirements.
- Verify connector seating and mechanical retention before commissioning the PROFIBUS DP network.
- Use appropriate PROFIBUS DP cabling with correct shielding and grounding practices.
- Avoid parallel routing with high-current power cables to reduce electromagnetic interference.
- Confirm network address settings and communication parameters before placing the system into operation.
- Ensure the installation environment remains within the specified temperature, humidity, and altitude limits.
