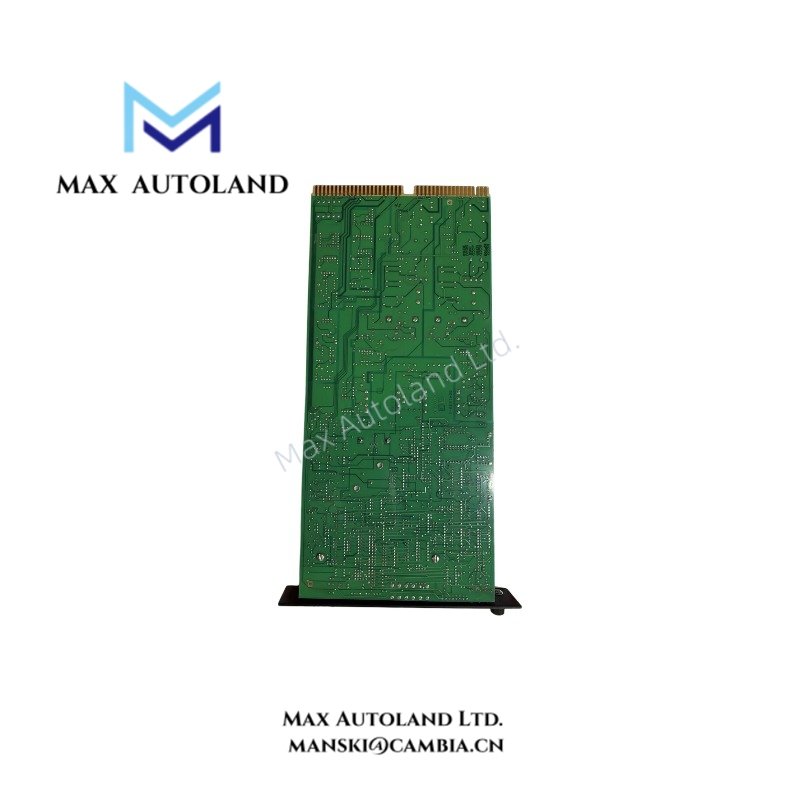

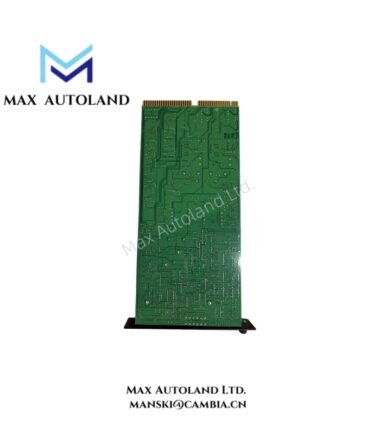

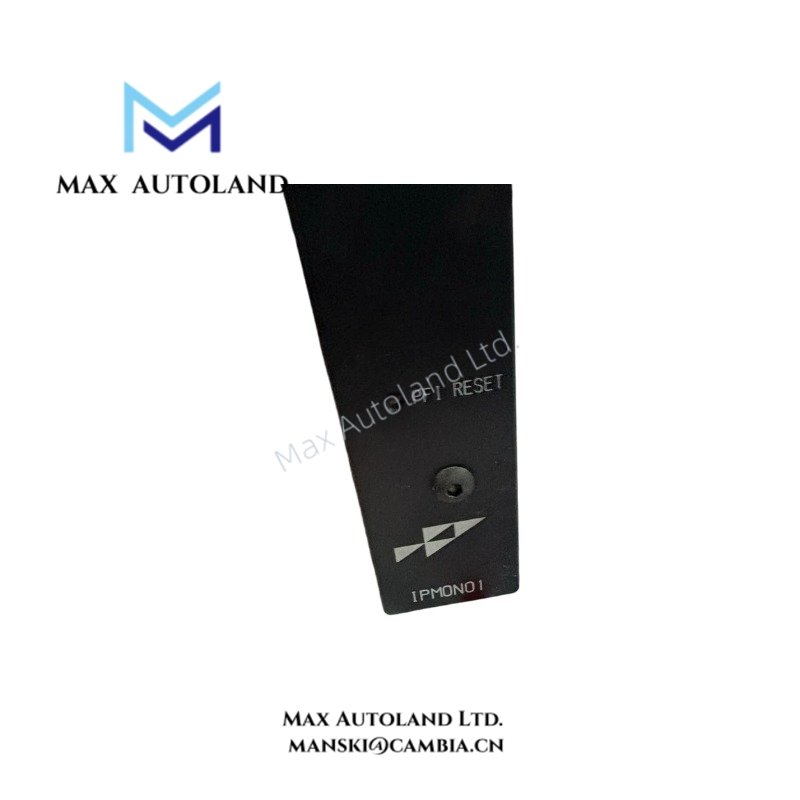

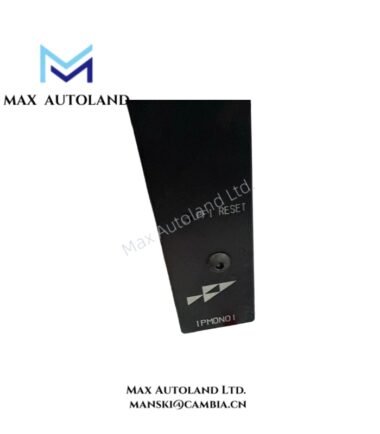

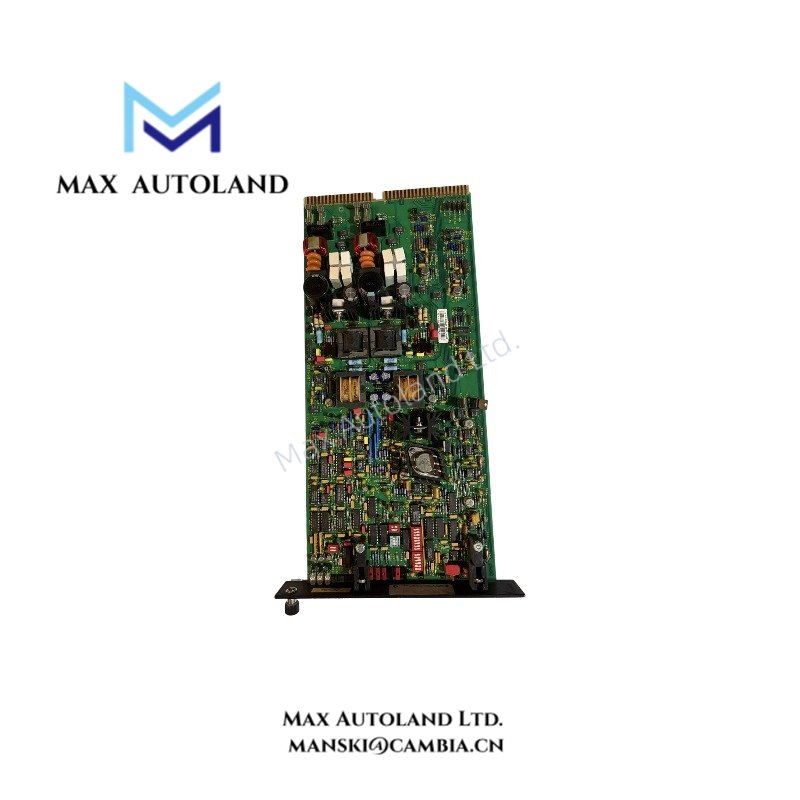

Overview
The ABB IPMON01 is a power monitor module designed to monitor AC and DC power supply conditions in an industrial control system. It supports 120/240 VAC input sensing and 125 VDC input sensing, with a 24 VDC auxiliary output. Its electrical isolation rating of 2300 VAC rms and defined operating temperature range provide key specifications for equipment identification and configuration checks.
Key Features
- AC input sensing for 120/240 VAC supplies.
- DC input sensing for 125 VDC supplies.
- 24 VDC auxiliary output with a specified tolerance of +/-5%.
- Electrical isolation rated at 2300 VAC rms.
- Compact module format with a listed weight of 0.96 kg.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IPMON01 |
| Brand | ABB |
| Product Type | Power Monitor Module |
| Spare Models | PIPMON01, IPMON01R, YIPMON01 |
| AC Input Sensing | 120/240 VAC +/-10% |
| DC Input Sensing | 125 VDC +/-20% |
| Auxiliary Output | 24 VDC +/-5% |
| Isolation Rating | 2300 VAC rms |
| Power Rating | 24 VA |
| Current Rating | 0.1 A |
| Tariff Code | 8537101190 |
| Country of Origin | Sweden |
| Place of Shipment | Xiamen, China |
| Estimated Shipping Dimensions | 3.4 x 41.8 x 21.8 cm |
| Weight | 0.96 kg |
| Operating Temperature | -20 to +70 deg C |
| Storage Temperature | -40 to +85 deg C |
| Relative Humidity | 5% to 95% RH, non-condensing |
Electrical Monitoring and Output
The IPMON01 supports both AC and DC input sensing. The specified AC range is 120/240 VAC with a tolerance of +/-10%, while the DC input is rated at 125 VDC with a tolerance of +/-20%. These values help maintenance personnel verify the intended supply conditions before selecting or replacing the module.
The module also provides a 24 VDC auxiliary output with a tolerance of +/-5%. The 2300 VAC rms isolation rating describes its specified electrical isolation capability. Confirm the applicable wiring and isolation requirements against the equipment documentation before installation.
Environmental Specifications
The module has an operating temperature range of -20 to +70 deg C and a storage temperature range of -40 to +85 deg C. Its specified humidity range is 5% to 95% RH without condensation. These limits help determine whether the module’s installation and storage conditions fall within its stated environmental specifications.
Frequently Asked Questions
Q: What input voltages does the ABB IPMON01 monitor?
A: The specified input sensing ratings are 120/240 VAC +/-10% and 125 VDC +/-20%. Verify the actual supply type and voltage before selecting the module.
Q: What auxiliary output does the IPMON01 provide?
A: The module has a 24 VDC auxiliary output with a tolerance of +/-5%. The available information does not specify the maximum output current.
Q: Which spare model references are listed for the IPMON01?
A: The supplied references are PIPMON01, IPMON01R, and YIPMON01. Confirm the complete model marking and equipment requirements before treating these references as interchangeable replacements.
