Overview

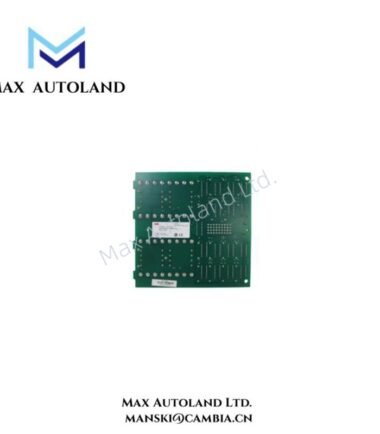

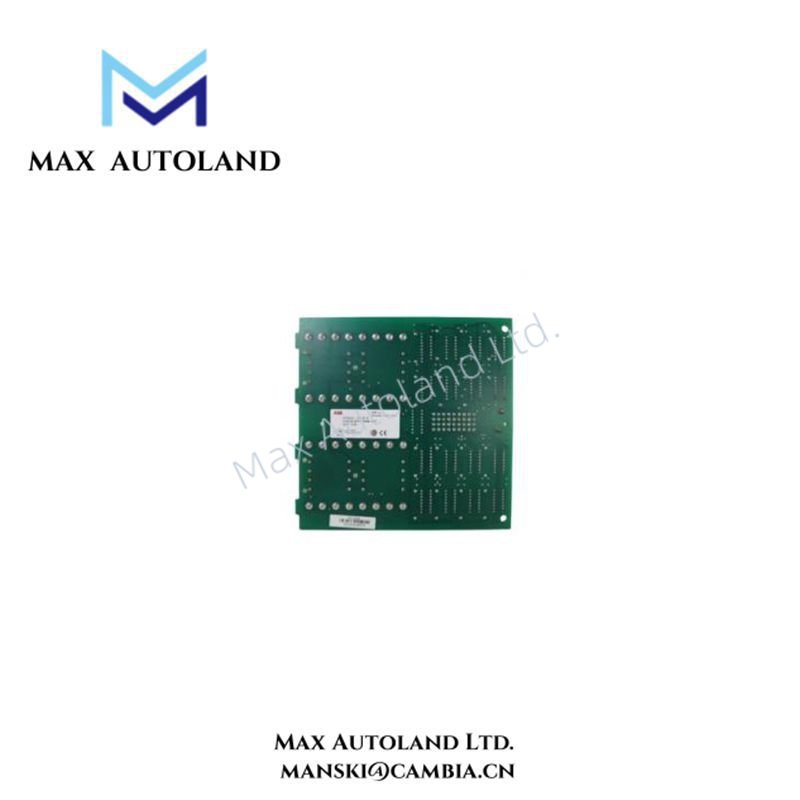

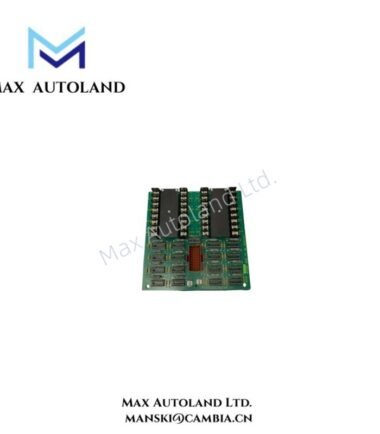

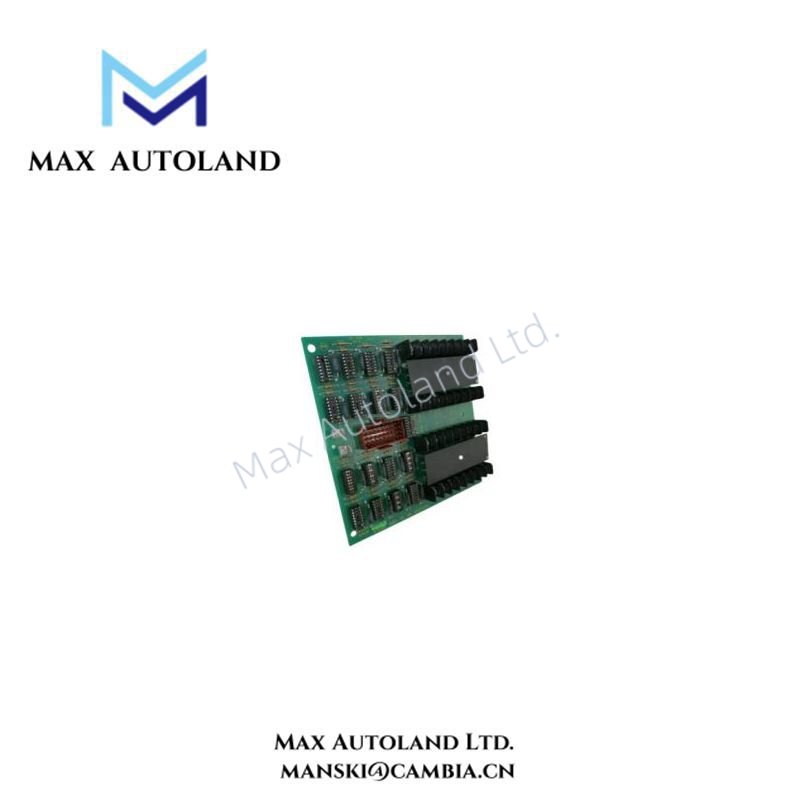

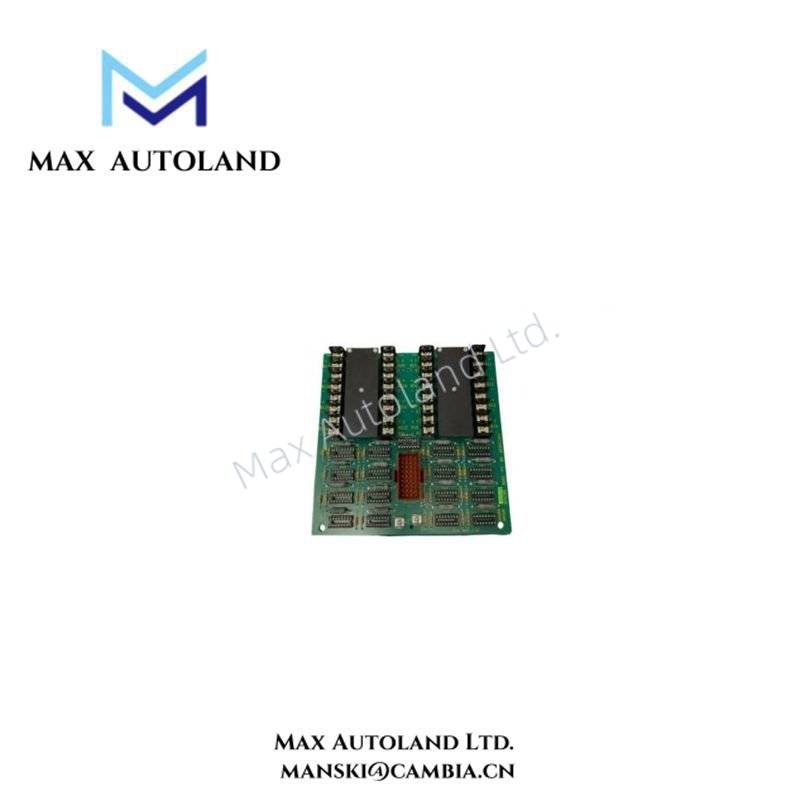

The ABB NTAI05 Input Termination Unit ensures reliable and organized field wiring connections within Bailey Infi 90 and Net 90 control systems. Designed with robust construction and precise terminal alignment, the NTAI05 simplifies installation, improves wiring efficiency, and enhances long-term system reliability.
Its compact design saves rack space while maintaining excellent accessibility for wiring and maintenance. By offering secure and clearly labeled terminal points, the NTAI05 supports stable signal flow between input modules and connected field devices. Engineers value its durability, efficient layout, and compatibility with both Infi 90 and Net 90 platforms.
Specification
| Parameter | Specification |
|---|---|
| Model Number | NTAI05 |
| Manufacturer | ABB / Bailey Controls |
| Product Category | Input Termination Unit |
| Compatible Systems | Bailey Infi 90 and Net 90 |
| Termination Capacity | 16 input channels |
| Connection Type | Screw-type terminals with secure retention |
| Dimensions | Approx. 280 mm × 190 mm × 25 mm (11.0 × 7.5 × 1.0 in) |
| Weight | ~1.4 kg (3.1 lb) |
| Mounting Method | Standard Infi 90 rack mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Housing Material | Industrial-grade reinforced plastic |
FAQ
Q1: Is the ABB NTAI05 unit brand new and original?
A1: Yes, we only supply 100% factory-original and brand-new NTAI05 modules.
Q2: How many channels does the NTAI05 support?
A2: The module supports 16 input channels with screw-type terminations.
Q3: How soon can you ship the NTAI05?
A3: Orders usually ship within 3 days to 2 weeks, depending on quantity.
Q4: What carriers do you use for international delivery?
A4: We typically ship with DHL, UPS, and FedEx for global coverage.
Q5: Can I return the NTAI05 if there is a problem?
A5: Yes, you may return the unit within 30 days if any quality issues arise.
Manual/Datasheet PDF
NTAI05 ABB Bailey Infi 90 & Net 90 INPUT TERMINATION UNIT datasheet
