Overview

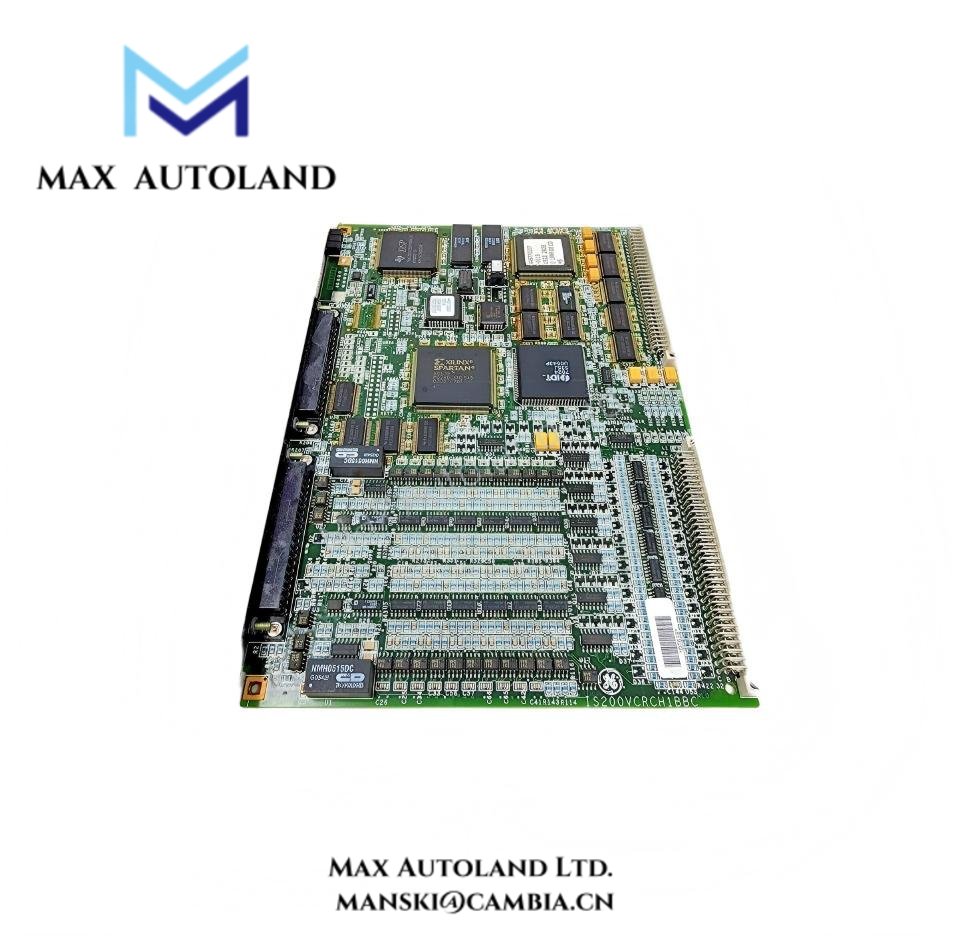

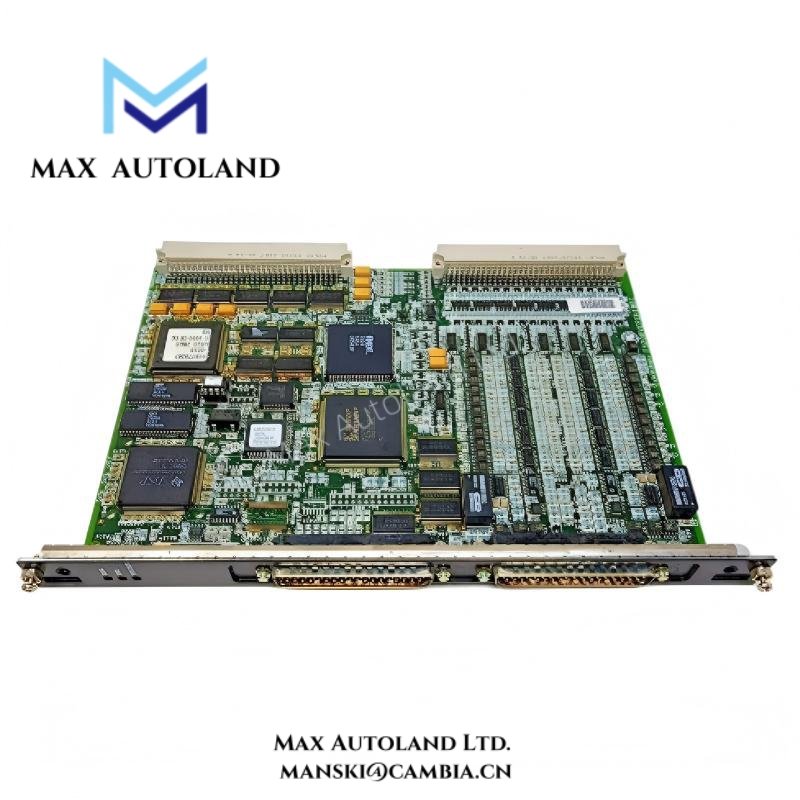

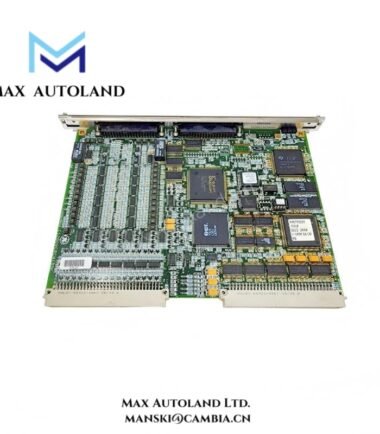

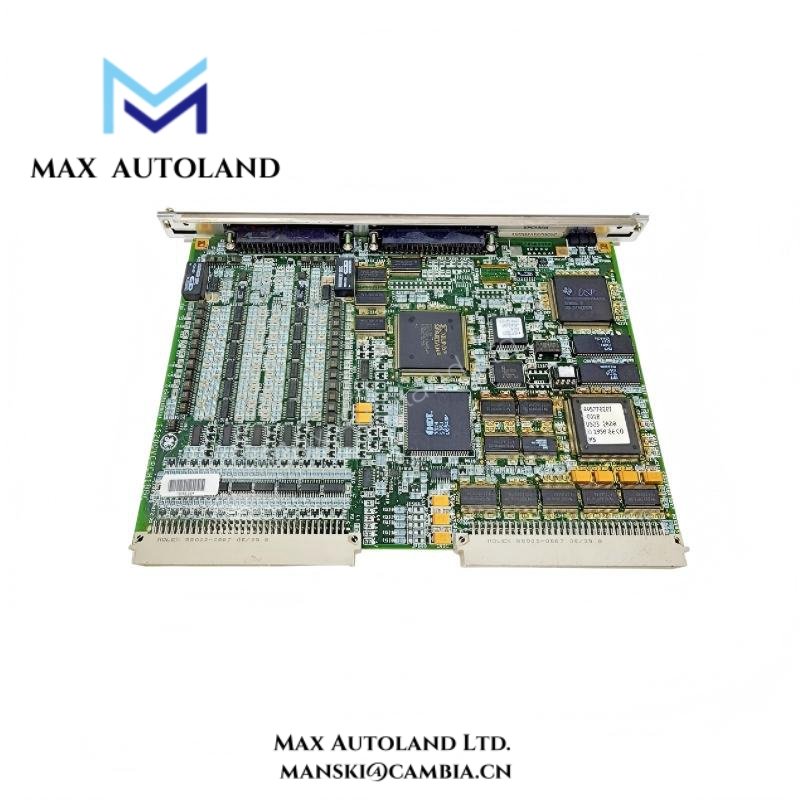

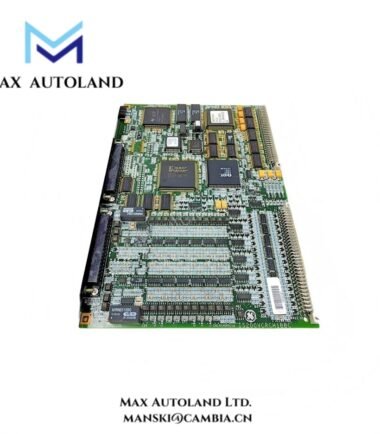

The IS200VCRCH1B is a high-quality printed circuit board designed by GE for Mark VI automation systems. It delivers precise discrete input and output control for industrial applications, ensuring optimal process reliability and rapid signal response.
This board integrates seamlessly into standard Mark VI I/O racks, providing high channel density while maintaining compact dimensions. IS200VCRCH1B ensures stable signal operation through built-in energy storage and robust component design.
GE manufactures every board under strict quality standards, making IS200VCRCH1B suitable for power generation, chemical processing, and other critical industrial systems.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE (General Electric) |
| Model Number | IS200VCRCH1B |
| Product Type | Printed Circuit Board (Discrete I/O) |
| Series | Mark VI |
| Input Channels | 16 or 32 discrete inputs, rack-dependent |
| Input Voltage | 24V DC nominal, ±10% tolerance |
| Input Current | 3 mA per channel (typical) |
| Output Channels | 16 or 32 discrete outputs, rack-dependent |
| Output Voltage | 24V DC nominal |
| Output Current | 0.5A per channel maximum |
| Output Type | Sourcing, solid-state compatible |
| Isolation | Full channel-to-channel and input-output isolation |
| Signal Response Time | 2–5 ms per channel |
| Power Consumption | 5 W typical for full configuration |
| Rack Compatibility | Standard IS200 I/O rack |
| Communication Interface | Rack backplane discrete I/O bus |
| LED Indicators | Power and channel status LEDs |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5%–95% non-condensing |
| Vibration Resistance | 0.5 g RMS, 5–150 Hz |
| Shock Resistance | 15 g, 11 ms half-sine |
| Dimensions (L×W×H) | 238 mm × 124 mm × 25 mm |
| Weight | 0.45 kg |
| Mounting | DIN-rail compatible / rack-mounted |
| Energy Storage | Integrated capacitors for transient signal stability |
| Certifications | CE, UL recognized components |
FAQ
Q1: Is the IS200VCRCH1B brand new and genuine?
A1: Yes, all IS200VCRCH1B boards are 100% original GE products, brand new, and factory sealed.
Q2: How quickly can you ship the board?
A2: We ship within 3 days to 2 weeks depending on order size. Common carriers include DHL, FedEx, and UPS.
Q3: What if the board is defective?
A3: We support returns within 30 days for any quality-related issues.
Q4: How many input/output channels does the board support?
A4: IS200VCRCH1B supports 16–32 discrete input channels and 16–32 output channels depending on rack configuration.
Q5: What are the dimensions and weight of the board?
A5: The board measures 238 mm × 124 mm × 25 mm and weighs 0.45 kg, fitting standard Mark VI racks.
