Overview

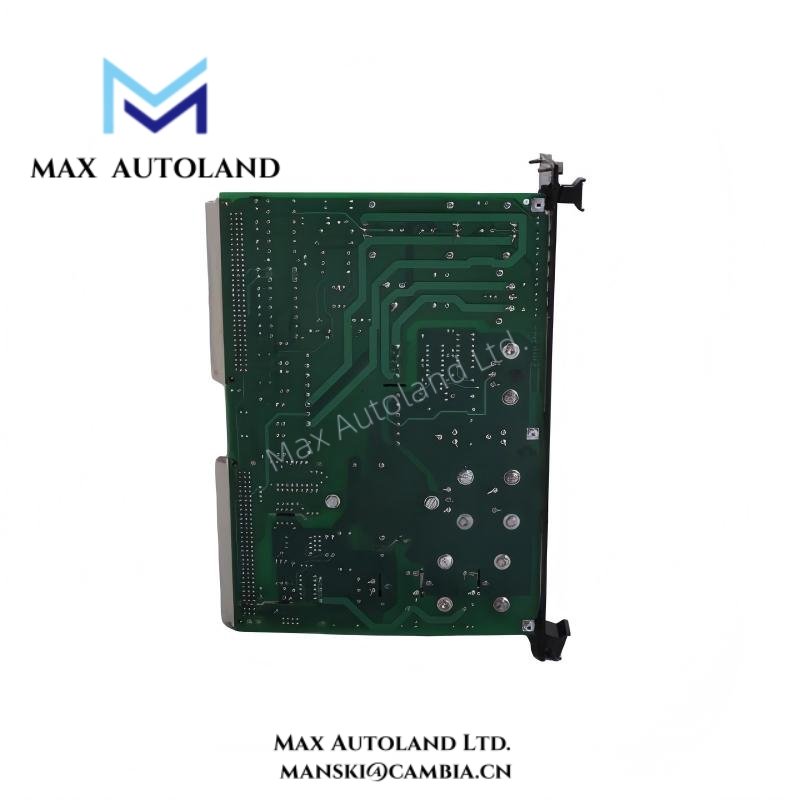

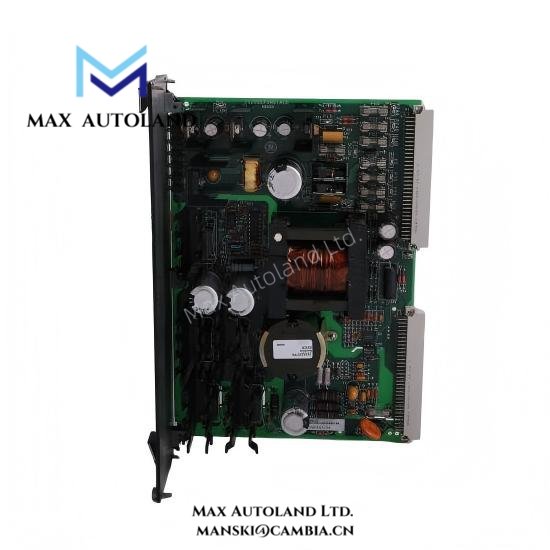

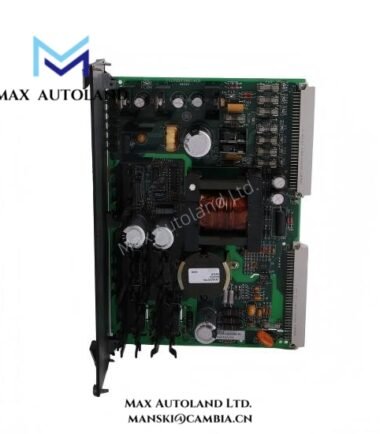

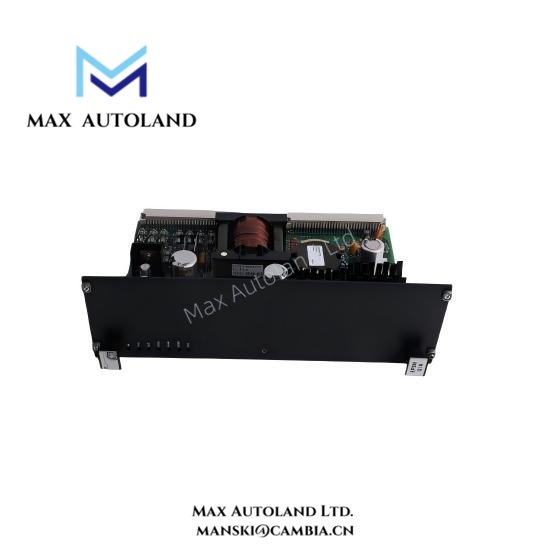

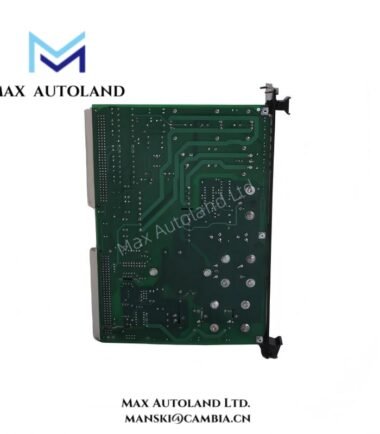

The IS200EPSMG1AED module delivers stable power for excitation systems within GE Mark VIe turbines.
Engineers install IS200EPSMG1AED to regulate field excitation and support turbine voltage stability under varying loads.
Moreover, the module integrates seamlessly with Mark VIe distributed control architectures.
Therefore, power plants rely on IS200EPSMG1AED to maintain turbine performance and generator reliability.
The design incorporates high-efficiency rectifiers, filter capacitors, and monitoring circuitry.
Consequently, IS200EPSMG1AED ensures smooth excitation current delivery to the generator field winding.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS200EPSMG1AED |
| Product Type | Exciter Power Supply Module |
| Series | Mark VIe Speedtronic Control System |
| Function | Converts DC input to regulated excitation current for generator field windings |
| Input Voltage | 125/250 VDC nominal |
| Input Voltage Range | 100 – 300 VDC |
| Output Voltage | Adjustable to match generator excitation requirements |
| Output Current | Up to 10 A continuous |
| Output Ripple | <1% typical |
| Efficiency | >92% at rated load |
| Protection Features | Overcurrent protection, short circuit protection, thermal overload protection, reverse polarity protection |
| Status Indicators | Multi-color LEDs for operational status, fault conditions, and excitation status |
| Communication Interface | Direct interface with Mark VIe I/O packs and controller modules |
| PCB Construction | Double-sided multilayer board with high-reliability surface-mount components |
| Capacitors | High-temperature electrolytic and ceramic capacitors for energy storage |
| Rectifiers | High-efficiency silicon rectifiers for DC conversion |
| Fuses | Onboard fast-blow fuses for protection of critical circuits |
| Mounting Method | DIN rail or panel mounting inside control cabinet |
| Cooling Method | Passive cooling via control cabinet airflow |
| Operating Temperature | -20 °C to +70 °C industrial range |
| Storage Temperature | -40 °C to +85 °C |
| Humidity Tolerance | 5% – 95% non-condensing |
| Vibration Resistance | Designed to withstand typical turbine cabinet vibration |
| Shock Resistance | Meets industrial shock standards for control modules |
| Approximate Dimensions | 150 mm × 100 mm × 60 mm |
| Approximate Weight | 0.8 – 1.0 kg |
| Compliance | Meets GE internal standards for Mark VIe power supply modules |
| Typical Applications | Gas turbines, steam turbines, hydro turbines, industrial generator excitation control |
FAQ
Q1: Is the IS200EPSMG1AED module new and original?
Yes. We supply IS200EPSMG1AED as brand-new original factory hardware with sealed packaging.
Q2: Do you have IS200EPSMG1AED in stock?
Yes. Our warehouse keeps IS200EPSMG1AED ready for immediate order processing.
Q3: How fast can you ship the IS200EPSMG1AED module?
Orders usually ship within 3 days to 2 weeks, depending on the total order quantity.
Q4: What voltage input does IS200EPSMG1AED support?
The IS200EPSMG1AED operates on 125/250 VDC with a safe range of 100–300 VDC.
Q5: Which turbines can use IS200EPSMG1AED?
It is compatible with gas, steam, and hydro turbine excitation systems under GE Mark VIe control.
Q6: Which logistics services do you use?
We commonly ship IS200EPSMG1AED via DHL and other international express providers.
