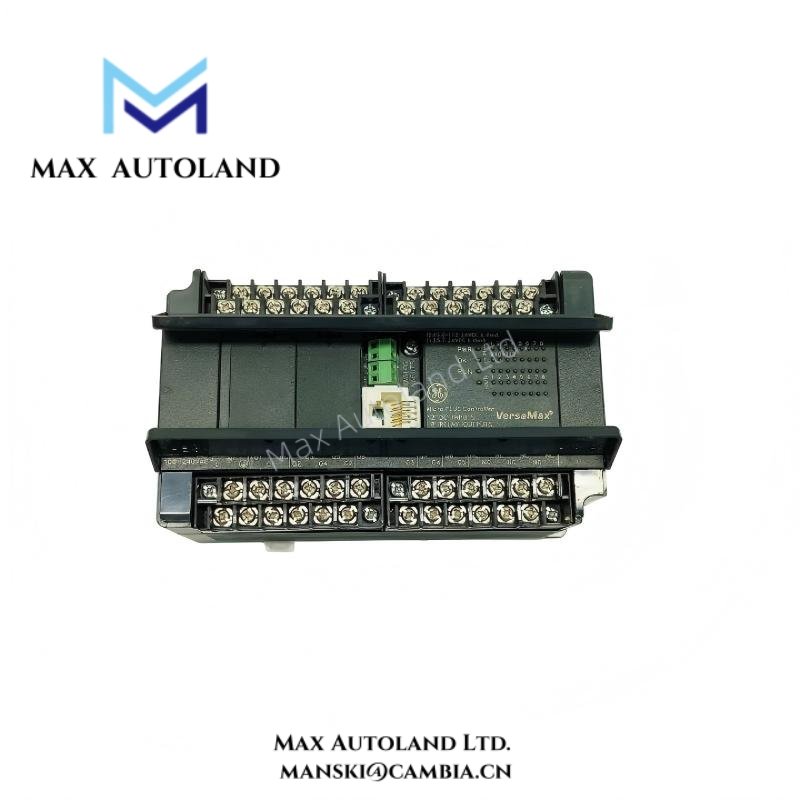

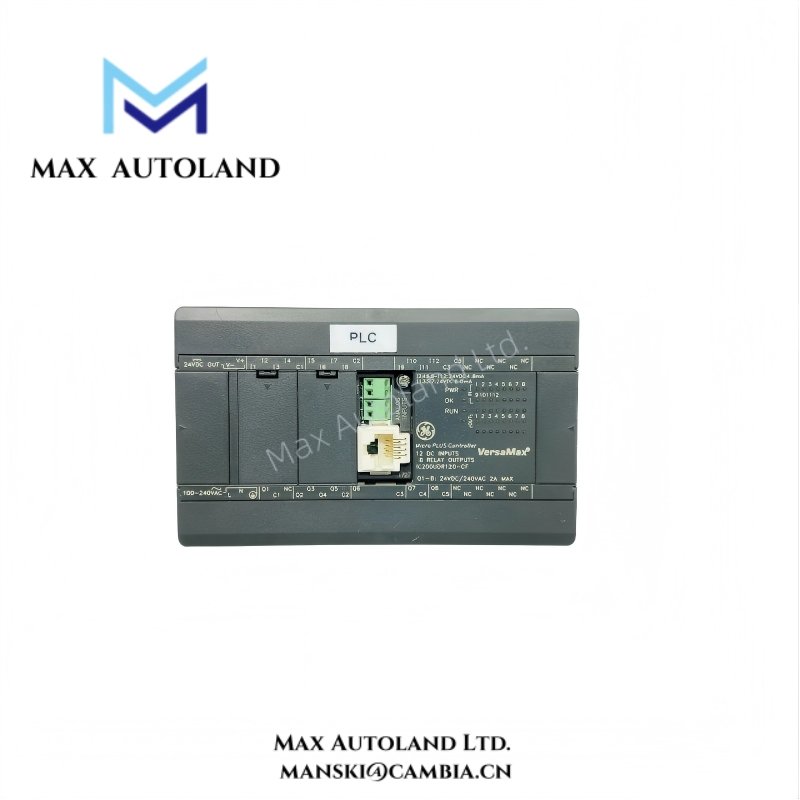

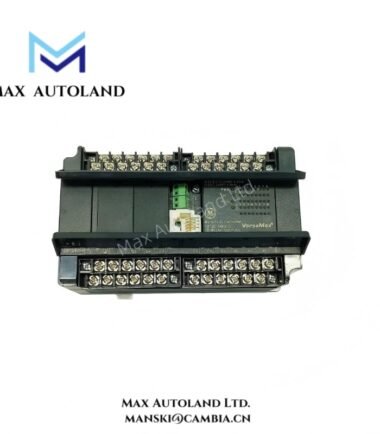

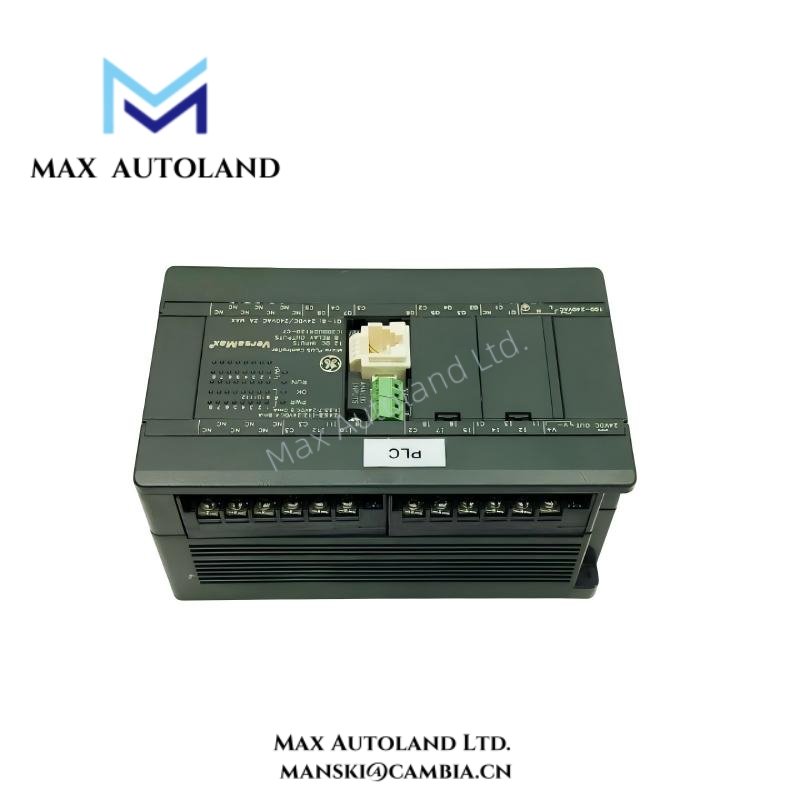

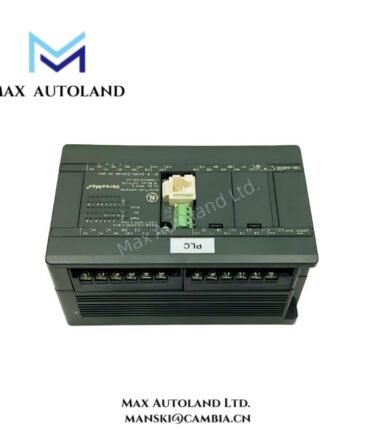

Overview
It integrates CPU processing, digital I/O, and communication interfaces within a single modular unit.
Moreover, the controller’s efficient design reduces panel footprint while supporting versatile control applications.
In addition, its deterministic processing ensures precise timing for repetitive industrial tasks.
Specification
| Parameter | Specification |
|---|---|
| Model Number | IC200UDR120 |
| Series | VersaMax Micro |
| Controller Type | Compact PLC with integrated digital I/O and communication |
| Processor | Embedded industrial-grade microprocessor |
| Program Execution | Deterministic cyclic scan for precise control |
| User Program Memory | Approx. 16 KB for logic programs |
| Data Memory | Internal registers and variable storage |
| Digital Inputs | 16 points, 24 VDC nominal |
| Digital Outputs | 12 points, relay or transistor depending on model |
| Input Voltage Range | 0–30 VDC typical |
| Output Voltage | Relay outputs: up to 250 VAC / 30 VDC |
| Output Current Rating | Up to 2 A per point (resistive load) |
| Power Supply Requirement | 24 VDC nominal |
| Communication Port | 1 × RS-232/RS-485 serial interface |
| Supported Protocols | Standard industrial serial communication protocols |
| Mounting | DIN rail or panel mounting |
| Status Indicators | Power, Run, Fault, I/O activity LEDs |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Vibration Resistance | Designed for industrial panel environments |
| EMC Compliance | Meets industrial electromagnetic compatibility standards |
| Safety Certification | Industrial control equipment compliance |
| Dimensions | Compact footprint suitable for small control panels |
| Weight | Lightweight, modular design |
FAQ
Q1: What type of PLC is the IC200UDR120?
A1: It is a compact micro PLC in the GE VersaMax Micro series.
Q2: Does the controller include built-in I/O?
A2: Yes, it provides 16 digital inputs and 12 digital outputs for direct device connections.
Q3: What power supply does the IC200UDR120 require?
A3: The controller operates on a 24 VDC nominal industrial power source.
Q4: Can this controller support additional I/O modules?
A4: Yes, it supports distributed VersaMax I/O modules for scalable automation.
Q5: How does the controller indicate operating status?
A5: LEDs on the front panel display power, run state, fault conditions, and I/O activity.
Q6: Is the IC200UDR120 suitable for small machine automation?
A6: Yes, it is designed for packaging machinery, conveyors, and compact process control systems.
