Overview

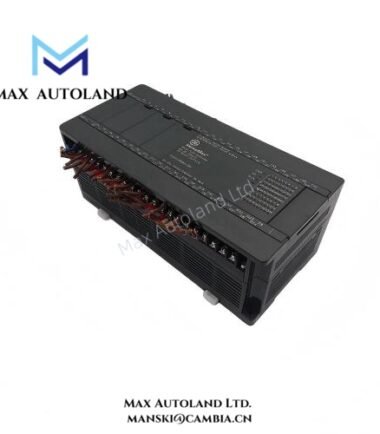

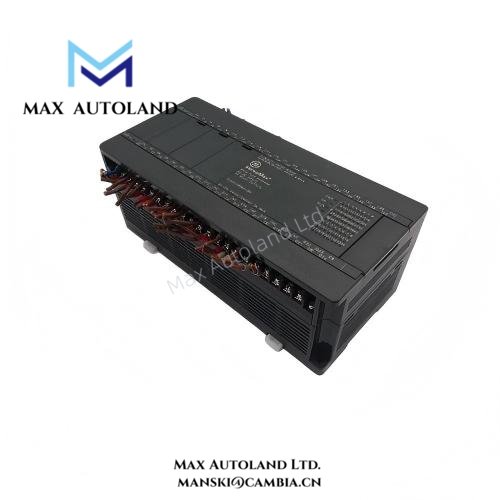

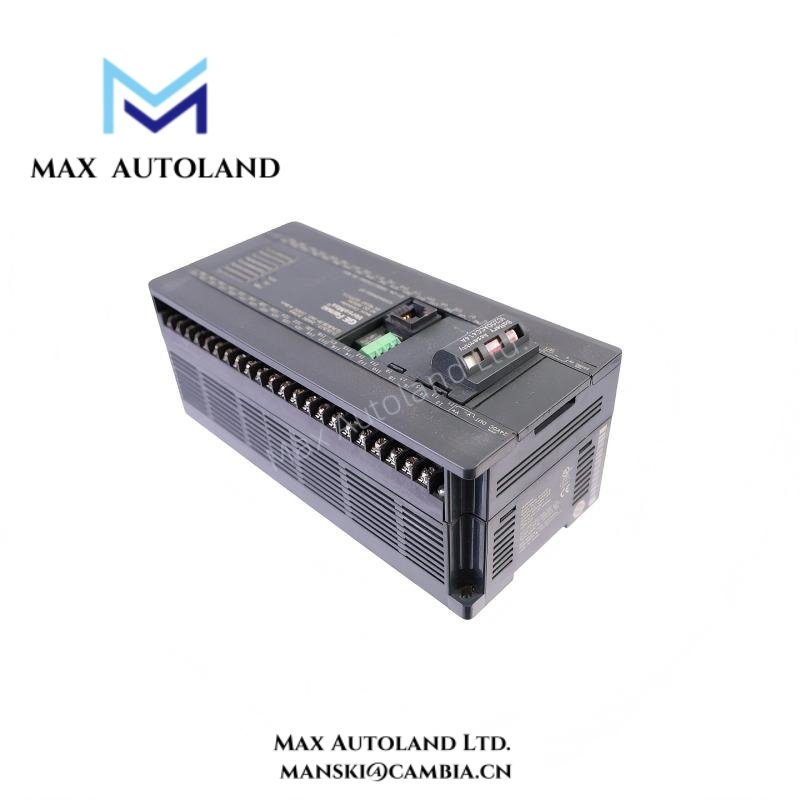

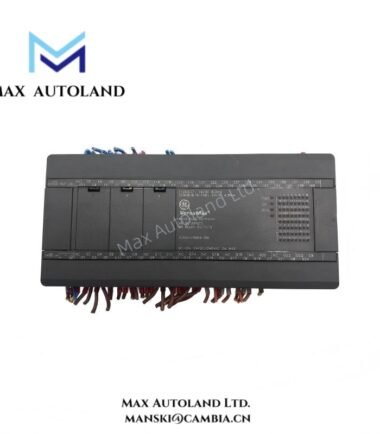

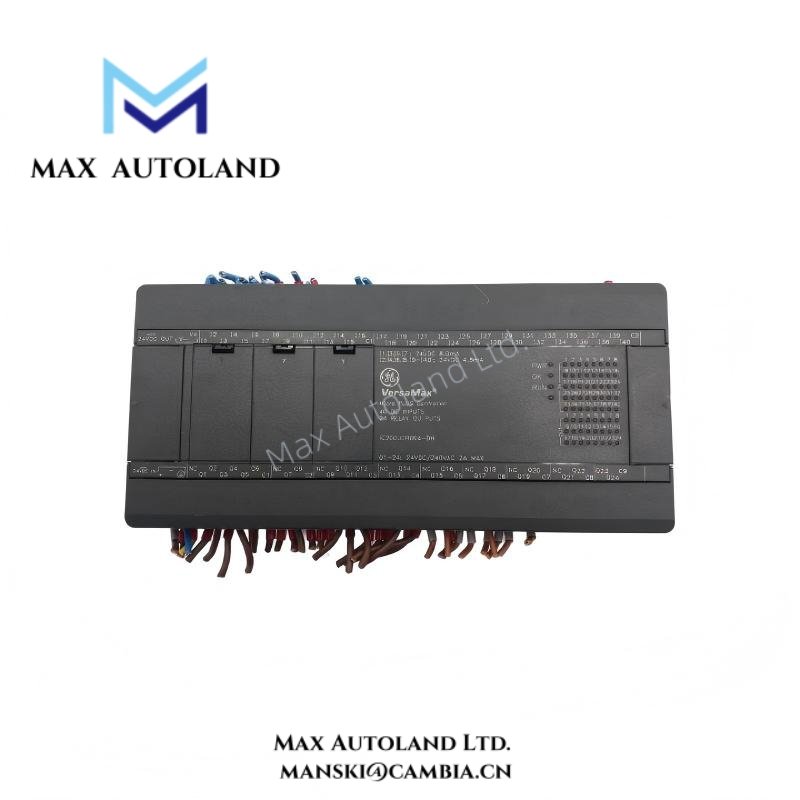

The IC200UDR064 from GE delivers compact control performance for small automation systems.
This VersaMax Micro PLC integrates CPU, power supply, and I/O in one enclosure.
Therefore, engineers reduce wiring complexity while maintaining reliable processing capability.
GE designed IC200UDR064 for scalable control applications across manufacturing industries.
The integrated architecture improves installation efficiency and cabinet space utilization.
Additionally, the controller supports local expansion for growing system requirements.
Specification
| Category | Parameter | Detailed Specification |
|---|---|---|
| General Information | Manufacturer | GE Intelligent Platforms |
| Product Series | VersaMax Micro PLC | |
| Model Number | IC200UDR064 | |
| Controller Type | Integrated Scalable Micro PLC | |
| Architecture | CPU + Power Supply + Integrated I/O | |
| I/O Configuration | Total I/O Points | 64 Points |
| Digital Inputs | 40 × 24 VDC Sink/Source Inputs | |
| Input Voltage Range | 20.4–28.8 VDC | |
| Input Current | Approx. 7 mA per point at 24 VDC | |
| Input Response Time | Typical 8 ms | |
| Digital Outputs | 24 Relay Outputs | |
| Output Contact Type | Form A (Normally Open) | |
| Max Switching Voltage | 250 VAC / 30 VDC | |
| Max Switching Current | 2 A per output (resistive load) | |
| Output Response Time | Typical 10 ms | |
| CPU & Memory | Processor Type | Embedded Microcontroller |
| Program Memory | Non-volatile Flash Memory | |
| User Program Capacity | Approx. 12 KB | |
| Data Memory | Retentive Memory Supported | |
| Data Backup | Flash-based retention, no battery required | |
| Power Supply | Rated Supply Voltage | 24 VDC Nominal |
| Input Voltage Range | 20.4–28.8 VDC | |
| Power Consumption | Approx. 15 W Maximum | |
| Inrush Current | Controlled internal regulation | |
| Energy Storage | No external battery required | |
| Communication | Built-in Port | 1 × RS-232 Serial Port |
| Protocol Support | SNP/SNP-X (configuration dependent) | |
| Programming Interface | Compatible with VersaPro / Proficy Machine Edition | |
| Status Indicators | Power, Run, Fault, I/O Status LEDs | |
| Mechanical Data | Mounting Method | 35 mm DIN Rail |
| Terminal Type | Fixed Screw Terminal Blocks | |
| Wire Size Range | 22–14 AWG | |
| Dimensions (H × W × D) | Approx. 90 × 70 × 75 mm | |
| Weight | Approx. 0.6 kg | |
| Environmental Ratings | Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 5–95% Non-condensing | |
| Vibration Resistance | Industrial Control Standard Compliant | |
| Shock Resistance | Industrial Environment Rated | |
| Expansion Capability | Expansion Support | Local I/O Expansion Modules Supported |
| Max Expansion Modules | Depends on power budget and configuration | |
| Compliance | Certifications | CE, UL Listed (series dependent) |
| Installation Environment | Industrial Control Cabinets |
FAQ
Q1: Is the IC200UDR064 new and original?
A1: Yes, we supply brand new original factory-sealed IC200UDR064 modules.
Q2: Do you have IC200UDR064 in stock?
A2: Yes, we keep stock available for immediate order processing.
Q3: How fast can you ship the IC200UDR064?
A3: We ship within 3 days to 2 weeks depending on order size.
Q4: Which courier services do you use?
A4: We commonly arrange DHL and other international express logistics services.
Q5: Does IC200UDR064 support expansion modules?
A5: Yes, it supports local expansion modules within the VersaMax Micro system.
Q6: What if the product has quality issues?
A6: We support returns within 30 days if any quality problem occurs.
