Overview

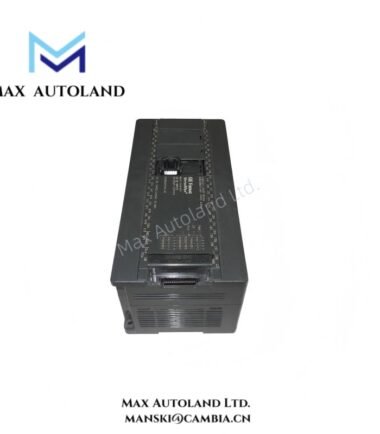

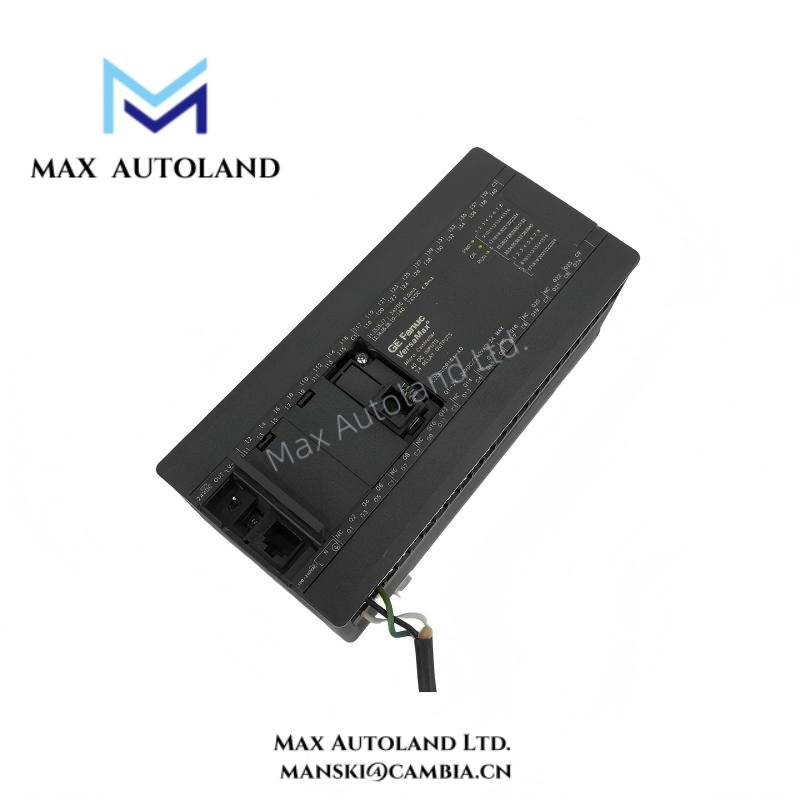

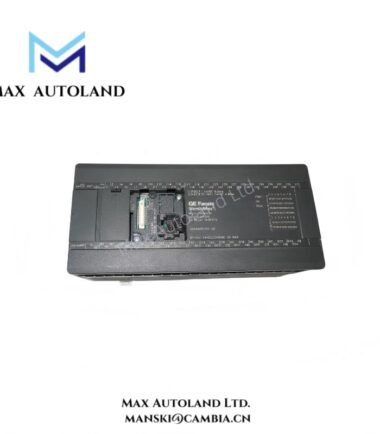

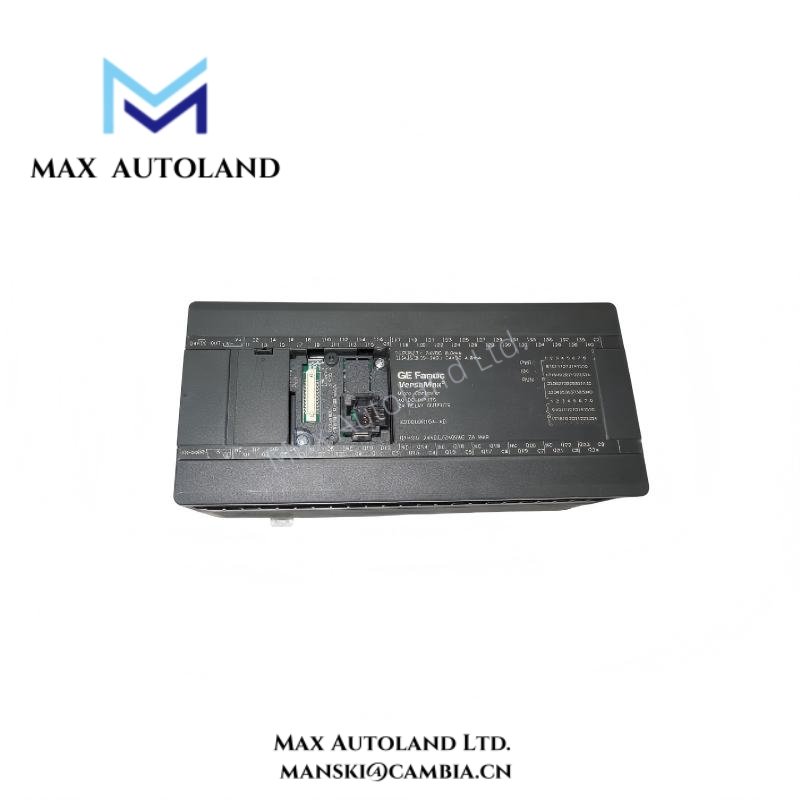

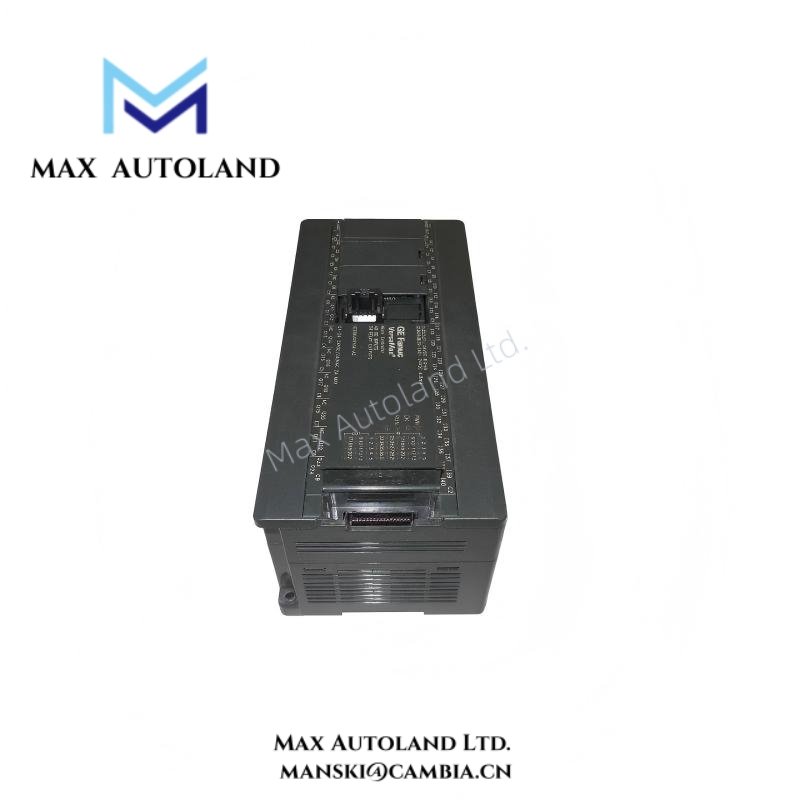

The IC200UDD164 delivers compact and reliable control for small to mid-sized automation systems.
As part of the VersaMax Micro series from GE, it integrates CPU, power supply, and I/O in one housing.
Moreover, it provides 16 built-in discrete I/O points for direct field device connectivity.
Therefore, engineers reduce panel wiring while maintaining flexible system architecture.
The IC200UDD164 operates on 24VDC input power and supports expansion through VersaMax backplane modules.
Additionally, it includes integrated serial communication ports for PLC networking and device configuration.
Consequently, users achieve efficient machine control with minimal hardware footprint.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Product Model | IC200UDD164 |
| Series | VersaMax Micro |
| Product Type | Micro Controller |
| Built-in I/O Points | 16 total discrete points |
| Digital Inputs | 8 points, 24VDC nominal |
| Digital Outputs | 8 points, 24VDC, 0.5A per channel |
| Input Voltage Range | 20.4–28.8 VDC |
| Power Consumption | Approx. 10 W typical |
| Processor Type | Embedded industrial microprocessor |
| User Program Memory | 12 KB ladder logic memory |
| Data Memory | 10 KB configurable registers |
| Communication Ports | 2 × Serial ports (RS-232 / RS-485 selectable) |
| Supported Protocols | SNP, Modbus RTU |
| Expansion Capability | Supports VersaMax Micro expansion modules |
| Mounting Method | DIN rail mounting |
| Dimensions | Approx. 120 mm (H) × 90 mm (W) × 70 mm (D) |
| Weight | Approx. 0.4 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| LED Indicators | Power, Run, Fault, I/O status LEDs |
| Energy Storage | Internal capacitor maintains data during short power interruptions |
FAQ
The IC200UDD164 includes 16 discrete I/O points, split between inputs and outputs.
Q2: What communication interfaces does the controller support?
It provides two serial ports supporting RS-232 or RS-485 with Modbus RTU capability.
Q3: Can I expand the I/O capacity?
Yes, the controller supports additional VersaMax Micro expansion modules.
Q4: What power supply does the unit require?
The IC200UDD164 operates with a 24VDC industrial power source.
Q5: Is this unit original and ready for shipment?
Yes, we provide brand-new original units with stock available and fast global shipping.
