Overview

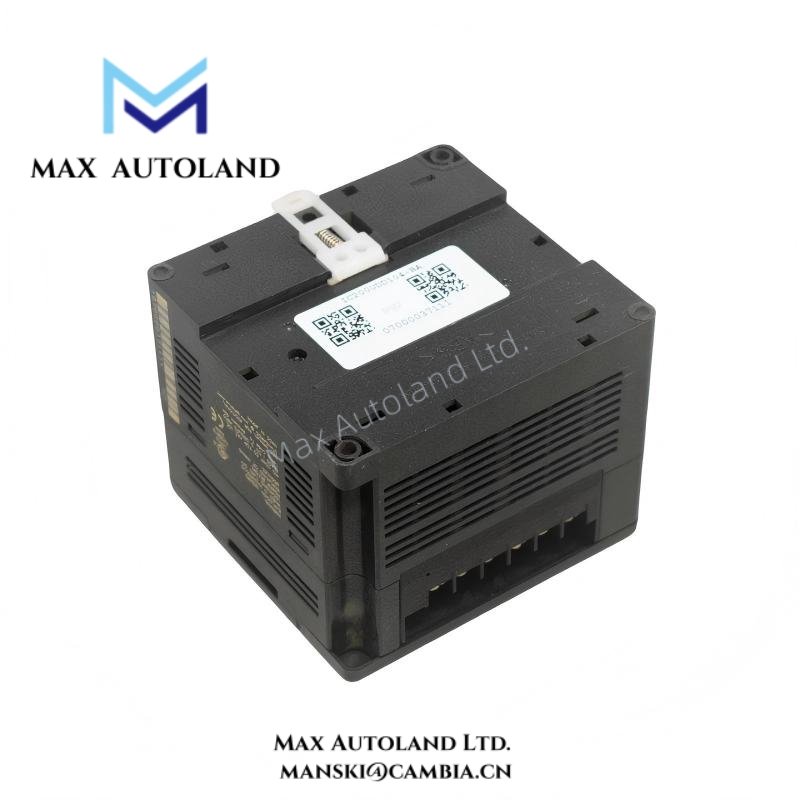

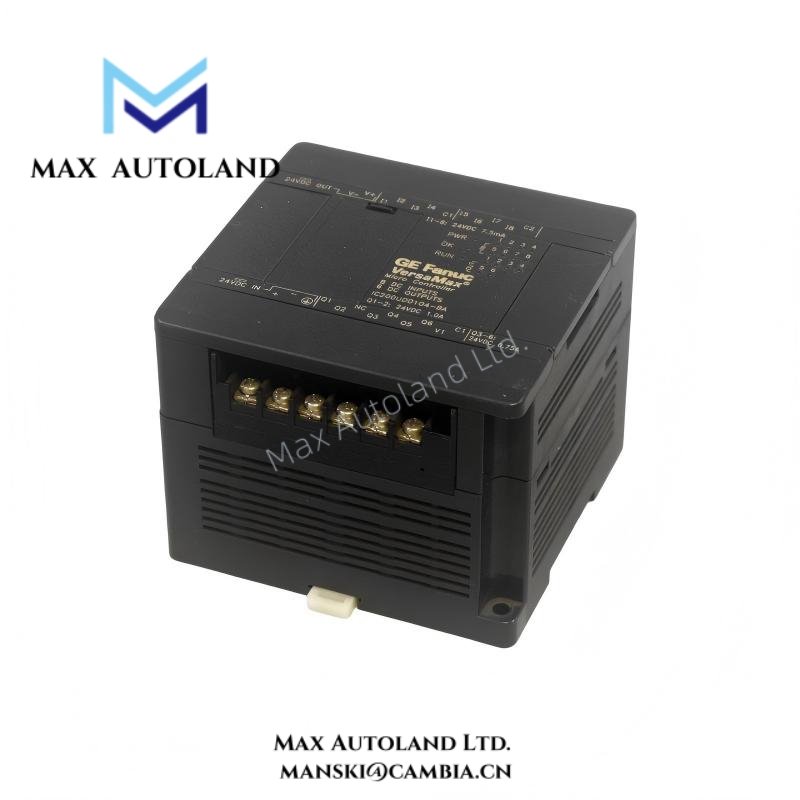

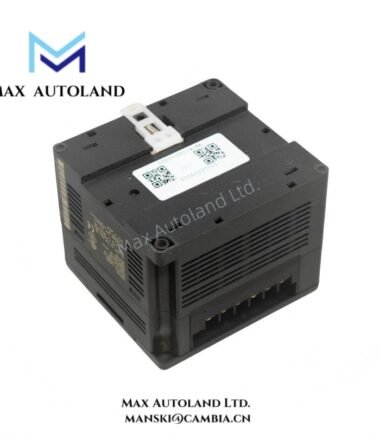

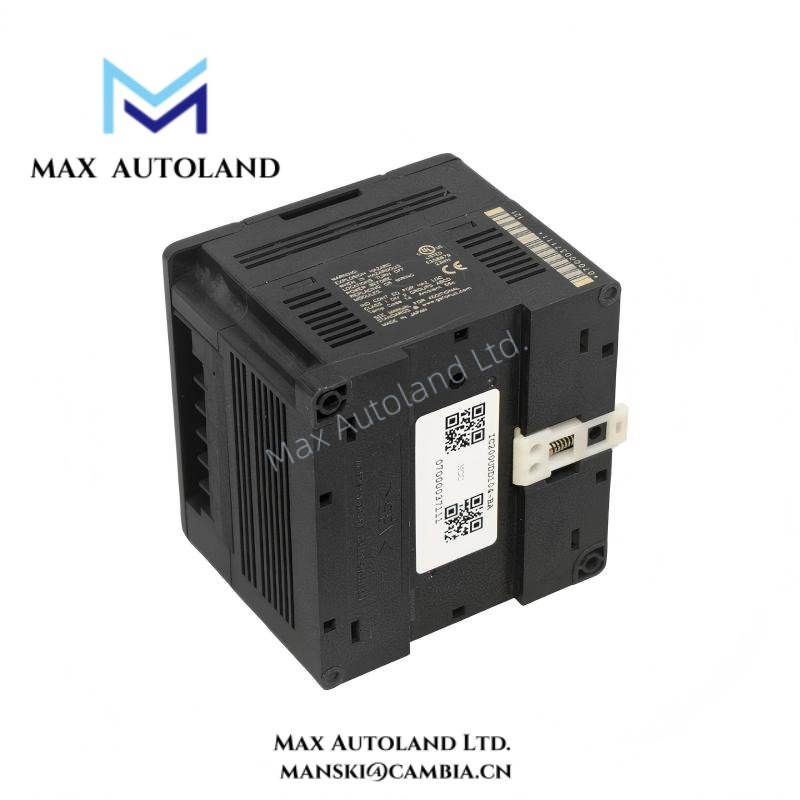

The IC200UDD104 micro controller delivers compact yet powerful control for small automation systems.
It integrates CPU, power supply, and discrete I/O within a single streamlined housing.
Engineers select this model for space-constrained panels requiring reliable PLC functionality.
Moreover, the controller supports flexible expansion through the VersaMax Micro architecture.
General Electric designed the VersaMax Micro series for cost-effective distributed control applications.
The IC200UDD104 combines processing capability with built-in digital I/O resources.
Therefore, integrators reduce wiring complexity and overall cabinet footprint.
Specification
| Parameter Category | Specification Detail |
|---|---|
| Manufacturer | General Electric (GE) |
| Product Model | IC200UDD104 |
| Product Type | VersaMax Micro Controller |
| Integrated I/O | 28 discrete points (16 DI / 12 DO transistor outputs) |
| Input Voltage Rating | 24 VDC digital inputs |
| Output Type | 24 VDC transistor outputs |
| Processor Type | Embedded 32-bit microprocessor |
| Program Memory | 64 KB user program memory |
| Data Memory | 64 KB configurable data memory |
| Non-Volatile Storage | Flash memory for program retention |
| Real-Time Clock | Integrated RTC with battery backup |
| Ethernet Port | 10/100 Mbps RJ45 interface |
| Serial Ports | 2 × RS-232/RS-485 configurable ports |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, SNP |
| Expansion Capability | Supports VersaMax Micro expansion modules |
| Power Supply | 12–24 VDC nominal input |
| Power Consumption | Approx. 15 W maximum |
| Inrush Protection | Internal filtering and transient suppression circuitry |
| Mounting Method | DIN rail mounting |
| Dimensions (Approx.) | 90 mm × 110 mm × 70 mm |
| Weight (Approx.) | 0.5 kg |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Application Areas | OEM machinery, small process control, remote equipment panels |
FAQ
The IC200UDD104 includes 28 integrated discrete I/O points with 16 inputs and 12 outputs.
Q2: Does the IC200UDD104 support Ethernet communication?
Yes, it features a built-in 10/100 Mbps Ethernet interface for Modbus TCP/IP connectivity.
Q3: What power supply range does the IC200UDD104 require?
The controller operates within a 12–24 VDC nominal input range.
Q4: Can I expand the IC200UDD104 with additional modules?
Yes, it supports VersaMax Micro expansion modules for analog and digital I/O scaling.
Q5: Are your units original and in stock?
Yes, we provide brand-new original factory products with available inventory and fast global shipping.
