Overview

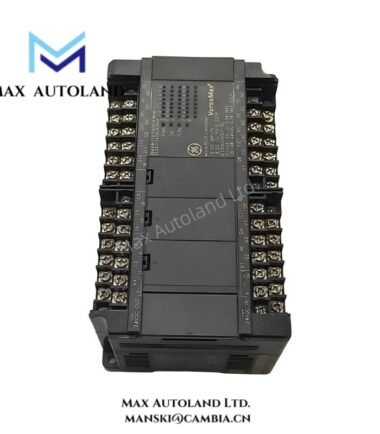

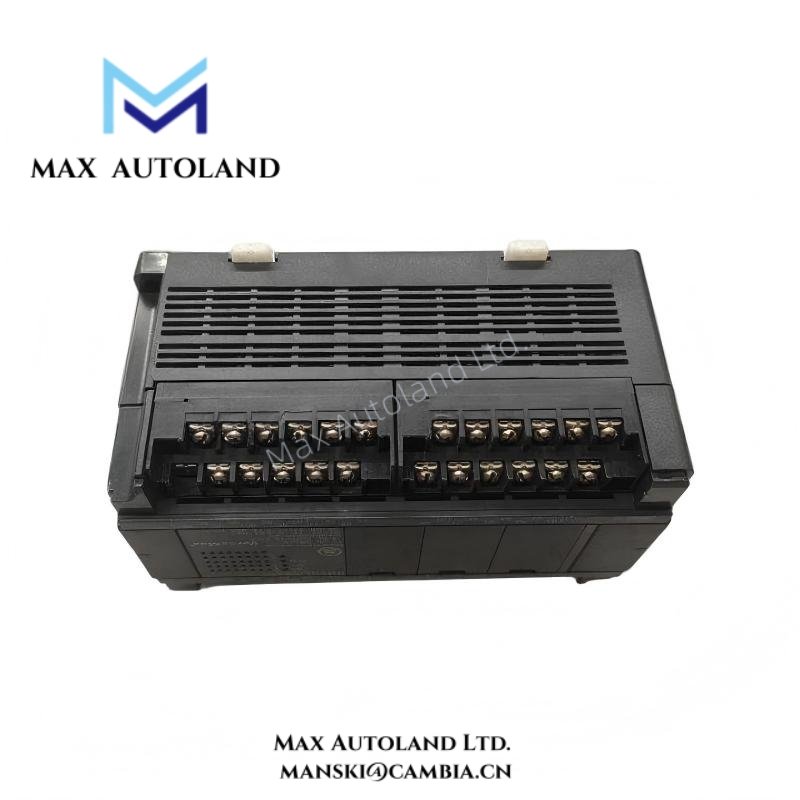

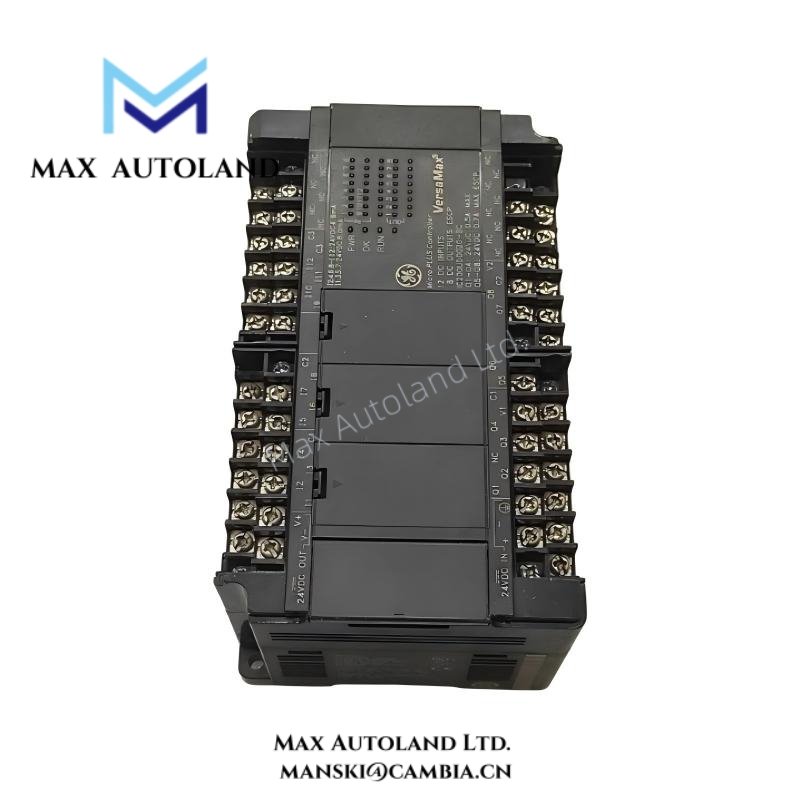

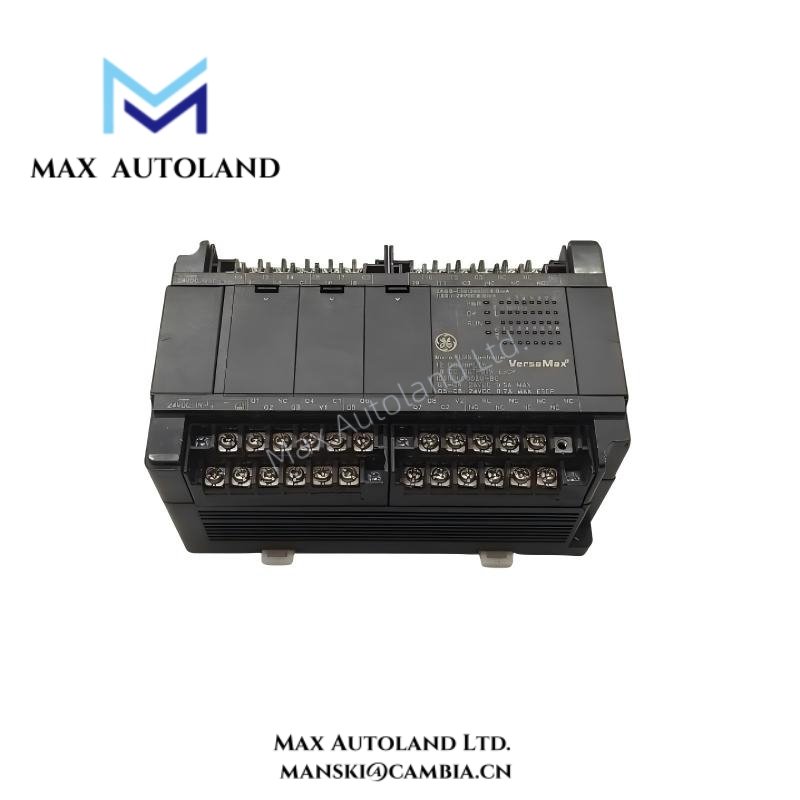

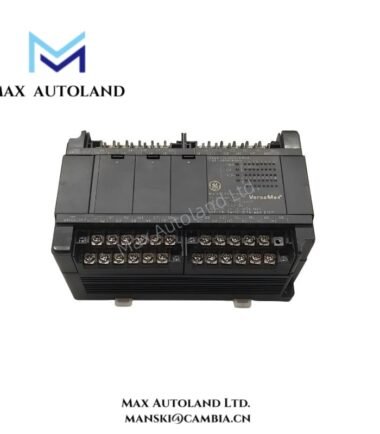

IC200UDD020 from GE delivers compact PLC control for small and mid-scale automation systems.
This controller belongs to the VersaMax Micro family and integrates CPU, power supply, and I/O in one housing.
Engineers select IC200UDD020 for reliable logic execution and fast signal processing in distributed control panels.
Moreover, the integrated design reduces wiring complexity and accelerates commissioning in industrial cabinets.
The controller supports expansion modules, therefore users can scale I/O capacity according to project demands.
Additionally, onboard serial communication ports simplify connection to HMIs and supervisory systems.
Specification
| Category | Parameter | Specification | Details |
|---|---|---|---|
| Controller | Model | IC200UDD020 | Integrated micro PLC controller |
| Manufacturer | GE | Industrial automation division | |
| Series | VersaMax Micro | Compatible with VersaMax expansion modules | |
| CPU Type | 16-bit | High-performance microprocessor | |
| User Program Memory | 12 KB | Stores ladder logic or functional programs | |
| Data Memory | 8 KB | For variable and I/O data storage | |
| Scan Time | ~0.5 µs per instruction | Fast execution for small to mid-scale systems | |
| Real-Time Clock | Integrated | Backup with capacitor for temporary power loss | |
| Integrated I/O | Total Built-in Points | 20 | 12 digital inputs, 8 digital outputs |
| Digital Inputs | 12 points | 24 VDC, sourcing type, positive logic | |
| Input Voltage Range | 0–30 VDC | Operating range for DC sensors and switches | |
| Digital Outputs | 8 points | 24 VDC transistor outputs | |
| Maximum Output Current | 0.5 A per point | Suitable for solenoids or relays | |
| Output Type | Sourcing transistor | Fast switching response | |
| Electrical Characteristics | Supply Voltage | 24 VDC nominal | Operating range: 20.4–28.8 VDC |
| Power Consumption | ~8 W | Typical operating power | |
| Inrush Current | < 30 A peak | Short-term startup surge | |
| Isolation | 1500 VAC | Field to logic isolation for protection | |
| Short-Circuit Protection | Integrated on outputs | Protects outputs from faults | |
| Communication Interfaces | Serial Port 1 | RS-232 | Programming and HMI connection |
| Serial Port 2 | RS-485 | Multi-drop network communication | |
| Protocol Support | SNP, Modbus RTU | Standard industrial communication protocols | |
| Programming Port | 9-pin D-sub | Direct connection for configuration | |
| Mechanical & Environmental | Dimensions | 90 × 70 × 75 mm | Compact DIN-rail mounting |
| Weight | ~0.45 kg | Lightweight industrial design | |
| Mounting | DIN-rail | Quick and secure installation | |
| Operating Temperature | 0°C to 55°C | Safe for standard industrial environments | |
| Storage Temperature | -40°C to 85°C | Ensures durability in warehouse or transport | |
| Relative Humidity | 5%–95% non-condensing | Suitable for humid environments |
FAQ
Q1: Is this controller brand new and original?
Yes, IC200UDD020 remains brand new and factory original.
Q2: Do you have this model in stock?
Yes, we keep IC200UDD020 in stock for immediate allocation.
Q3: How long does shipping take?
We ship within 3 days to 2 weeks depending on order quantity.
We commonly use DHL and other international logistics services.
Q4: What supply voltage does this controller require?
IC200UDD020 operates on nominal 24 VDC within a 20.4–28.8 VDC range.
Q5: Does the controller support communication protocols?
Yes, IC200UDD020 supports SNP and Modbus RTU via RS-232 and RS-485 ports.
Q6: What if I encounter a quality issue?
We support returns within 30 days if verified quality problems occur.
