Overview

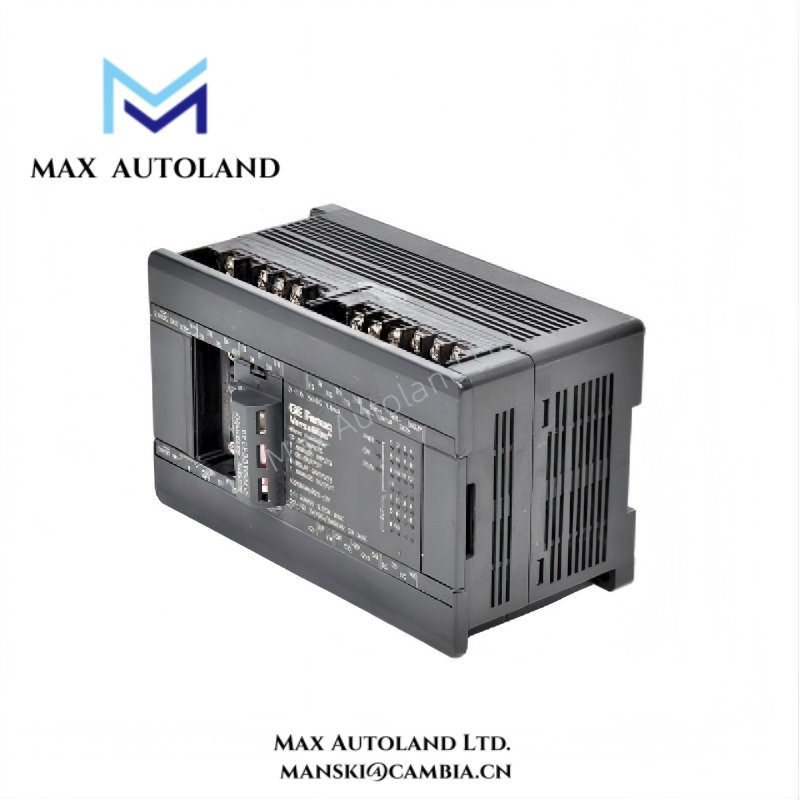

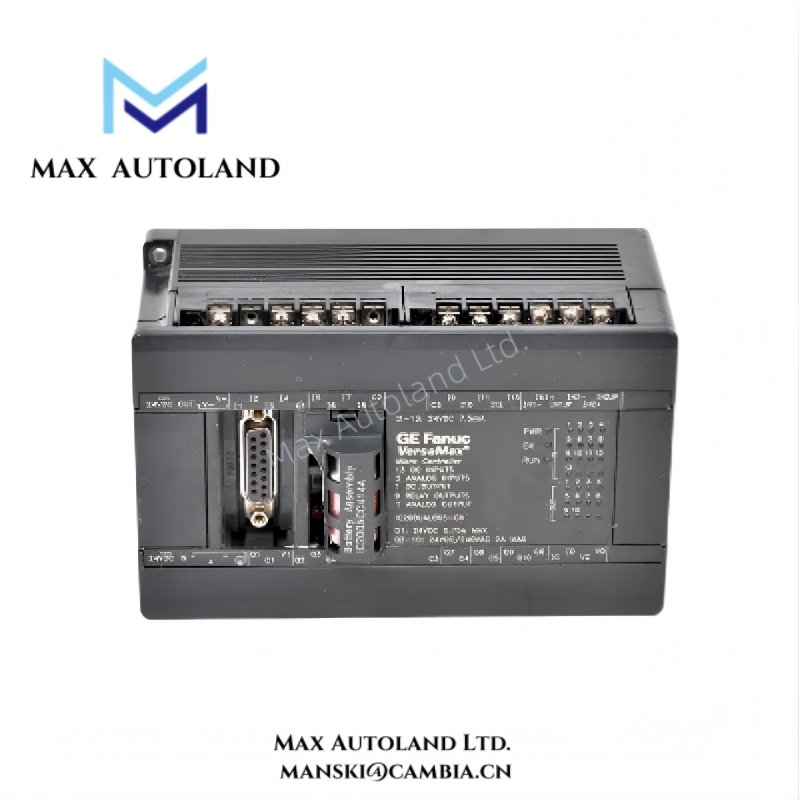

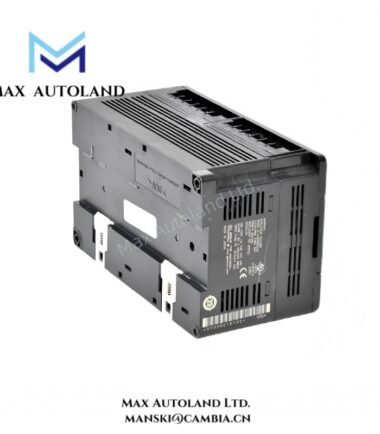

IC200UAL005 from GE provides a compact and reliable microcontroller solution for industrial automation.
It belongs to the VersaMax Micro family, integrating CPU, power, and I/O for small-to-medium control applications.
Engineers choose IC200UAL005 for real-time logic execution and fast response in distributed control environments.
Its compact DIN-rail design reduces cabinet footprint while supporting scalable expansion through additional VersaMax modules.
The module’s LED indicators allow instant visualization of I/O and system status.
Furthermore, integrated serial ports simplify connectivity with HMIs, SCADA, and other industrial devices.
Specification
| Category | Parameter | Specification | Details |
|---|---|---|---|
| Controller | Model | IC200UAL005 | Integrated micro PLC controller with I/O and serial ports |
| Manufacturer | GE | Industrial automation division | |
| Series | VersaMax Micro | Compatible with VersaMax expansion modules | |
| CPU Type | 16-bit microcontroller | Handles real-time processing and I/O scanning | |
| User Program Memory | 12 KB | Stores ladder logic or functional block programs | |
| Data Memory | 8 KB | For variables and I/O data storage | |
| Scan Time | ~0.5 µs per instruction | Fast execution for small-to-medium automation systems | |
| Real-Time Clock | Integrated | Maintains timestamps during operation and power interruptions | |
| Integrated I/O | Total Built-in Points | 16 points | 8 digital inputs, 8 digital outputs |
| Digital Inputs | 8 points | 24 VDC, positive logic, sourcing type | |
| Digital Outputs | 8 points | 24 VDC transistor outputs, 0.5 A max per point | |
| Output Type | Sourcing transistor | Fast switching suitable for relays and solenoids | |
| Electrical | Supply Voltage | 24 VDC nominal | Operating range 20.4–28.8 VDC |
| Power Consumption | Approx. 8 W | Typical operating power | |
| Inrush Current | < 30 A peak | Short-term startup surge | |
| Isolation | 1500 VAC field-to-backplane | Protects logic and field circuits | |
| Short-Circuit Protection | Integrated | On output channels for safety | |
| Communication | Serial Port 1 | RS-232 | For programming or HMI connection |
| Serial Port 2 | RS-485 | Multi-drop network connection | |
| Protocol Support | SNP, Modbus RTU | Standard industrial communication protocols | |
| Programming Port | 9-pin D-sub | Direct interface for configuration and updates | |
| Mechanical & Environmental | Dimensions | 90 × 70 × 75 mm | Compact DIN-rail mountable module |
| Weight | ~0.45 kg | Lightweight and durable industrial design | |
| Mounting | DIN-rail | Secure and quick installation | |
| Operating Temperature | 0°C – 55°C | Standard industrial conditions | |
| Storage Temperature | -40°C – 85°C | Safe for transport and warehouse storage | |
| Relative Humidity | 5%–95% non-condensing | Suitable for typical industrial environments |
FAQ
Q1: Is this controller brand new and original?
Yes, IC200UAL005 is 100% factory original and brand new.
Q2: Is this product in stock?
Yes, we maintain inventory for IC200UAL005 and fulfill orders immediately.
Q3: How long does shipping take?
We ship within 3 days to 2 weeks depending on order size.
Common logistics include DHL and other international carriers.
Q4: What supply voltage does this controller require?
IC200UAL005 operates on nominal 24 VDC, with an operating range of 20.4–28.8 VDC.
Q5: What communication interfaces does it support?
It includes RS-232 and RS-485 ports and supports SNP and Modbus RTU protocols.
