Overview

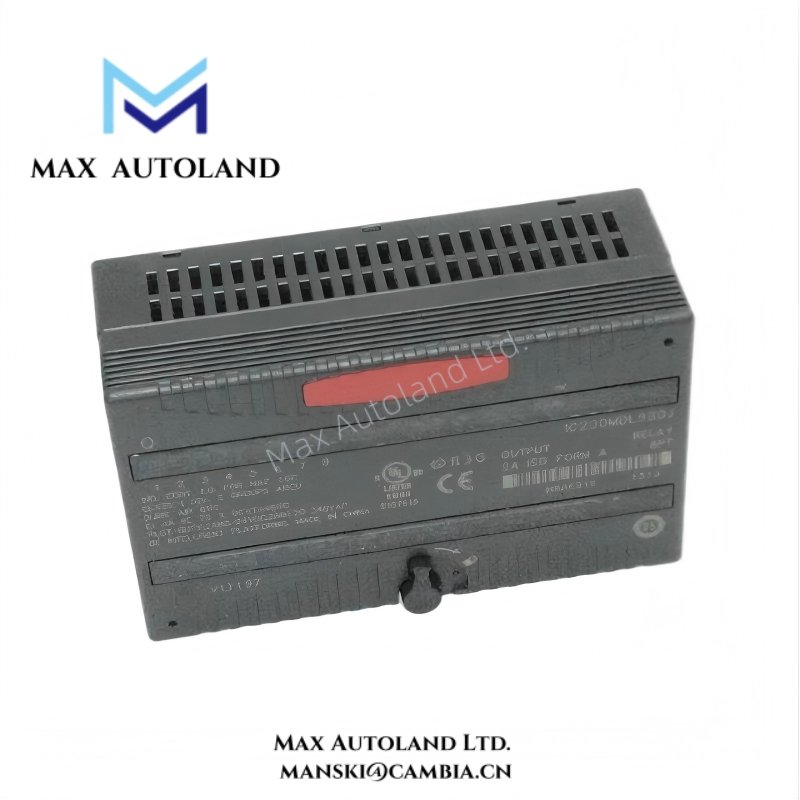

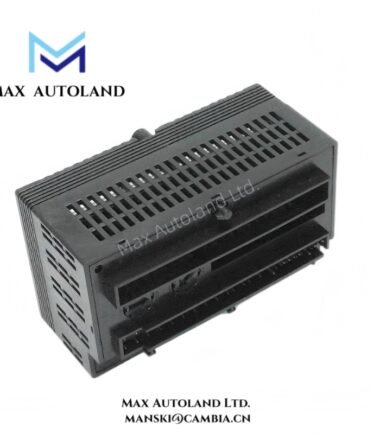

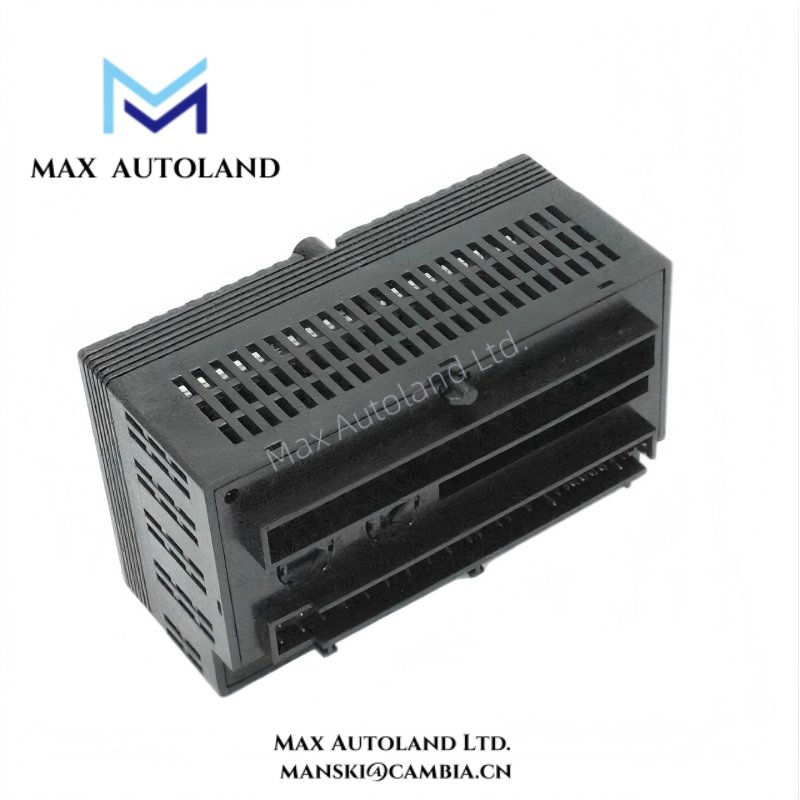

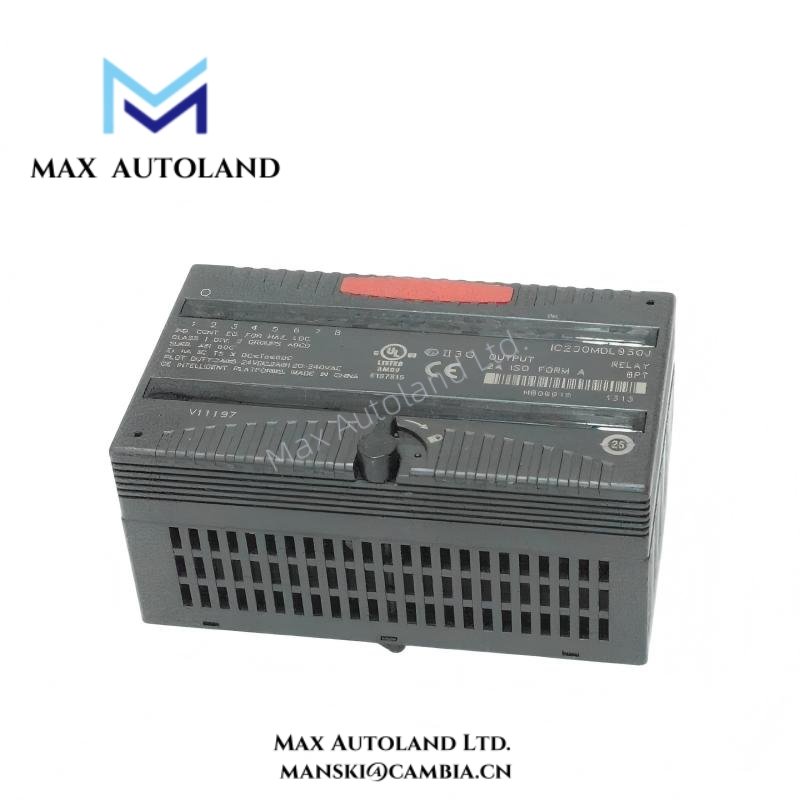

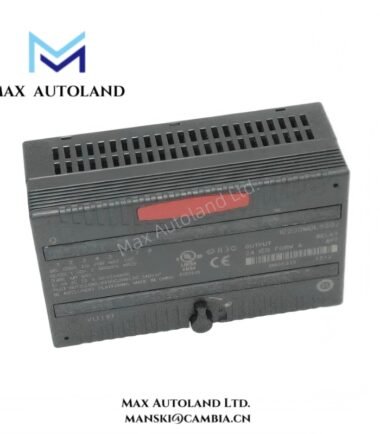

IC200MDL930 from GE provides high-performance isolated relay outputs for industrial automation systems.
This module belongs to the VersaMax family and offers secure switching of AC and DC loads with full electrical isolation.
Engineers choose IC200MDL930 for precise control of solenoids, motors, and indicator devices in demanding industrial environments.
Its compact DIN-rail housing ensures panel space efficiency while maintaining full channel accessibility.
Front-panel LEDs provide immediate visualization of relay status for faster troubleshooting.
Moreover, each channel includes short-circuit protection, enhancing safety and system reliability.
Specification
| Category | Parameter | Specification | Details |
|---|---|---|---|
| Module | Model | IC200MDL930 | Isolated Form A relay output module |
| Manufacturer | GE | Industrial automation division | |
| Series | VersaMax | Compatible with VersaMax PLC backplanes | |
| Outputs | Number of Channels | 8 relays | Individually isolated Form A relays |
| Output Type | Relay, SPST (Form A) | Provides electrical isolation between load and logic | |
| Maximum Load Current | 2.0 A per channel | Suitable for DC and AC loads | |
| Maximum Switching Voltage | 250 VAC / 30 VDC | Safe operation across standard industrial voltages | |
| Response Time | 10 ms typical | Fast relay actuation for control applications | |
| Short-Circuit Protection | Built-in per relay | Protects module and connected devices | |
| Electrical | Supply Voltage | 5 VDC from backplane | Powered directly from VersaMax carrier |
| Power Consumption | Approx. 2 W | Typical operating power | |
| Isolation | 1500 VAC field-to-backplane | Ensures electrical safety and signal integrity | |
| Mechanical | Dimensions | 110 × 50 × 75 mm | Compact DIN-rail mounting |
| Weight | ~0.25 kg | Lightweight industrial design | |
| Mounting | VersaMax backplane DIN-rail | Quick and secure installation | |
| Indicators | 8 green LEDs | Shows per-channel relay status | |
| Environmental | Operating Temperature | 0°C – 55°C | Standard industrial environment |
| Storage Temperature | -40°C – 85°C | Safe for storage and transport | |
| Relative Humidity | 5%–95% non-condensing | Suitable for typical industrial conditions |
FAQ
Q1: Is this module brand new and original?
Yes, IC200MDL930 is 100% factory original and brand new.
Q2: Do you have this product in stock?
Yes, we maintain stock for IC200MDL930 and can process orders immediately.
Q3: How fast does shipping take?
We ship within 3 days to 2 weeks depending on order size.
We commonly use DHL and other international carriers.
Q4: What is the output type and current rating?
IC200MDL930 provides 8 isolated Form A relays with 2.0 A maximum per channel.
Q5: Does the module include protection features?
Yes, each relay has built-in short-circuit protection and field-to-backplane isolation.
