Overview

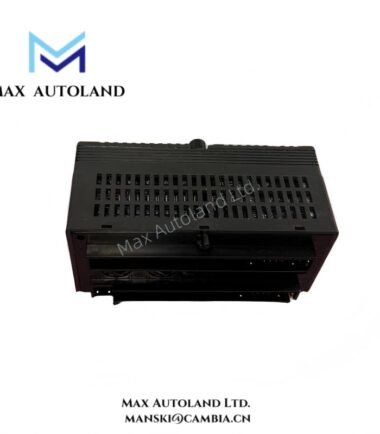

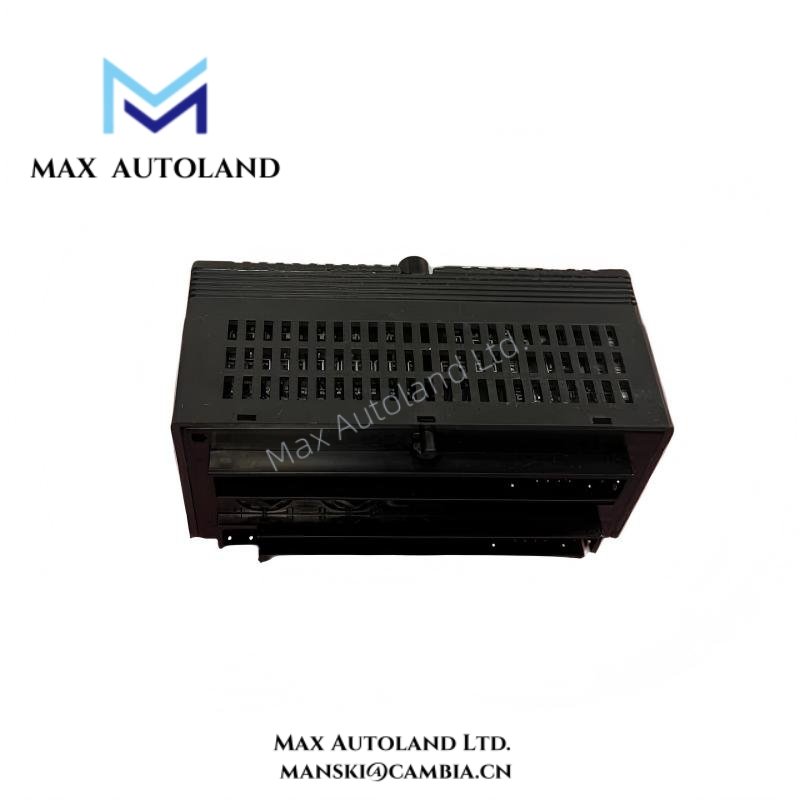

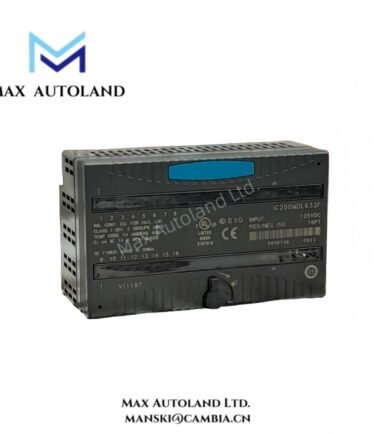

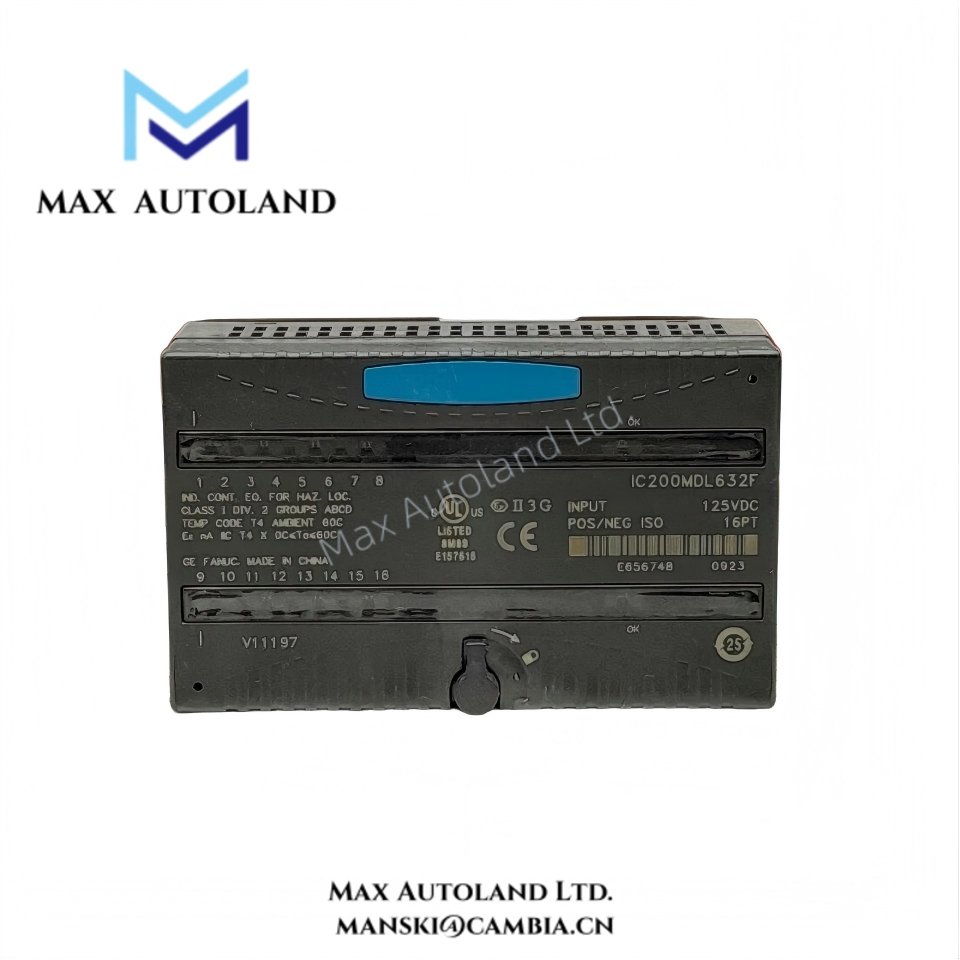

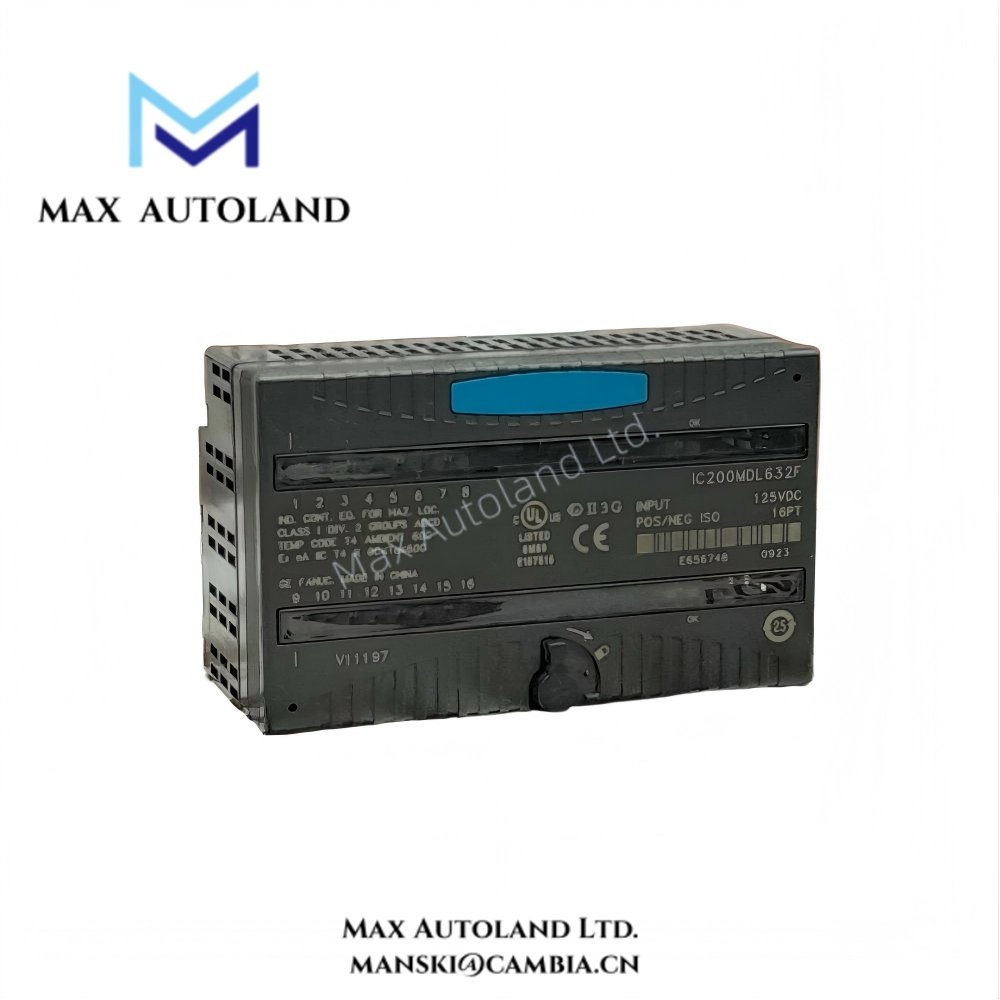

IC200MDL632 from GE delivers high-reliability isolated digital inputs for industrial control systems.
This module belongs to the VersaMax family and supports up to 125 VDC signals for various field devices.
Engineers select IC200MDL632 for applications requiring electrical isolation between high-voltage field signals and PLC logic.
Its compact DIN-rail housing ensures space efficiency while maintaining accessibility for wiring and diagnostics.
Front-panel LED indicators provide instant visualization of input status, improving troubleshooting speed.
Built-in protection circuitry safeguards the module against voltage transients and electrical noise.
Specification
| Category | Parameter | Specification | Details |
|---|---|---|---|
| Module | Model | IC200MDL632 | Isolated DC input module |
| Manufacturer | GE | Industrial automation division | |
| Series | VersaMax | Compatible with VersaMax backplanes | |
| Inputs | Number of Channels | 8 isolated inputs | Each input fully electrically isolated |
| Input Type | DC, Positive Logic | Compatible with 125 VDC field devices | |
| Nominal Input Voltage | 125 VDC | Standard high-voltage industrial signals | |
| Input Voltage Range | 0–125 VDC | Safe operation over full range | |
| Input Current | 4 mA typical | Per channel at nominal voltage | |
| Input Impedance | 30 kΩ typical | Provides proper signal loading | |
| Response Time | ≤ 1 ms typical | Fast input detection and processing | |
| Input Protection | Transient suppression | Protects module and logic circuits | |
| Electrical | Supply Voltage | 5 VDC from backplane | Powered by VersaMax carrier |
| Power Consumption | Approx. 1.5 W | Typical operating power | |
| Isolation | 1500 VAC field-to-backplane | Ensures safety and signal integrity | |
| Mechanical | Dimensions | 110 × 50 × 70 mm | Compact DIN-rail mounting |
| Weight | ~0.22 kg | Lightweight and robust | |
| Mounting | VersaMax backplane DIN-rail | Quick and secure installation | |
| Indicators | 8 green LEDs | Visual confirmation of input status | |
| Environmental | Operating Temperature | 0°C – 55°C | Standard industrial conditions |
| Storage Temperature | -40°C – 85°C | Safe for transport and storage | |
| Relative Humidity | 5%–95% non-condensing | Suitable for typical industrial environments |
FAQ
Q1: Is this module brand new and original?
Yes, IC200MDL632 is 100% factory original and brand new.
Q2: Is this product in stock?
Yes, we maintain inventory for IC200MDL632 for immediate order fulfillment.
Q3: How long does shipping take?
We ship within 3 days to 2 weeks depending on order quantity.
DHL and other international carriers are commonly used.
Q4: What is the input voltage rating?
IC200MDL632 accepts 125 VDC nominal with full isolation per channel.
Q5: Does the module provide protection features?
Yes, each input includes transient suppression and field-to-backplane isolation.
