Overview

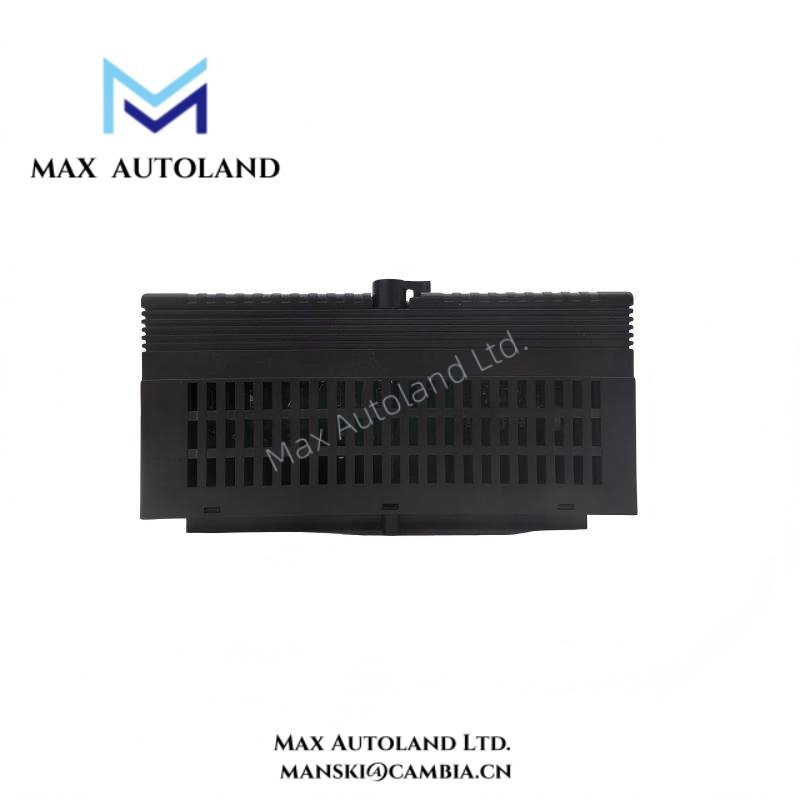

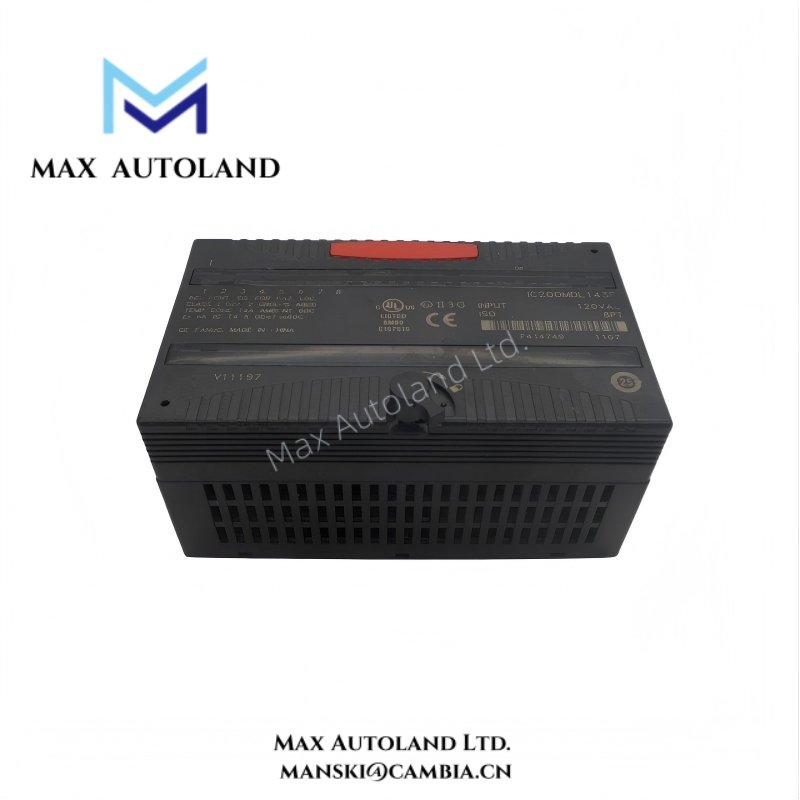

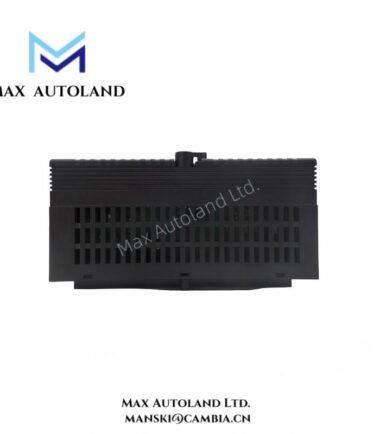

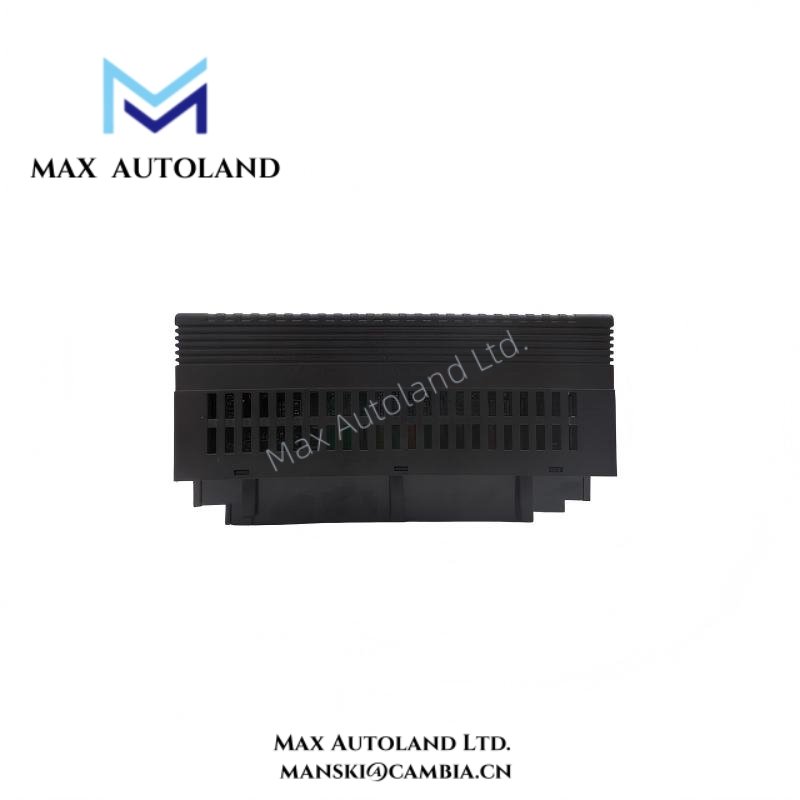

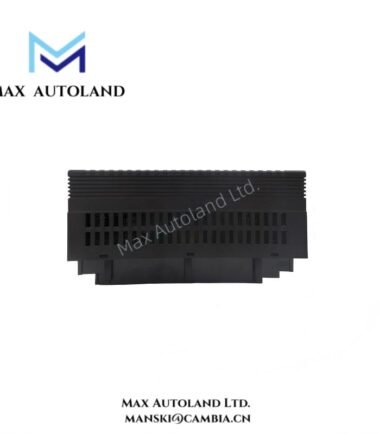

The IC200MDL143 VersaMax module provides isolated 120 VAC input channels for reliable industrial control.
It features 8 optically isolated inputs to protect CPU modules from voltage spikes.
Engineers utilize it for process automation, machinery monitoring, and factory control applications.
Moreover, its compact form factor enables easy DIN rail installation in control panels.
The IC200MDL143 ensures fast response times, typically 3 ms, suitable for high-speed monitoring.
It operates seamlessly with GE VersaMax micro PLC systems, supporting modular expansion.
Consequently, system designers gain accurate and robust input signal acquisition without external relays.
Specification
| Parameter Category | Specification Detail |
|---|---|
| Manufacturer | GE |
| Product Model | IC200MDL143 |
| Product Type | VersaMax 120 VAC Isolated Input Module |
| Number of Input Channels | 8 discrete AC input channels |
| Input Voltage Range | 120 VAC ±10% |
| Input Frequency | 50–60 Hz standard AC |
| Input Isolation | Optical isolation between inputs and backplane |
| Nominal Current per Channel | 2 mA typical |
| Maximum Input Voltage | 150 VAC (transient tolerant) |
| Response Time | Typical 3 ms per channel |
| Input Impedance | >50 kΩ at 60 Hz |
| Mounting | DIN rail (standard industrial profile) |
| Backplane Interface | Proprietary VersaMax communication bus |
| Power Consumption | Approx. 0.5 W per module |
| LED Indicators | Individual channel status and module health |
| Dimensions | 120 mm (H) × 40 mm (W) × 75 mm (D) approx. |
| Weight | 0.22 kg (approx.) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Electrical Noise Immunity | Complies with IEC 61131-2, industrial standards |
| Application Areas | Factory automation, process control, machinery monitoring, industrial I/O expansion |
FAQ
Q1: How many input channels does the IC200MDL143 support?
The IC200MDL143 supports 8 isolated AC input channels.
Q2: What is the input response time?
The module provides a typical 3 ms response time per channel.
Q3: Can it be installed on standard DIN rails?
Yes, the module is designed for standard industrial DIN rail mounting.
Q4: Is it compatible with other VersaMax Micro PLCs?
Yes, it integrates seamlessly with GE VersaMax Micro PLC systems.
Q5: Is the product original and in stock?
Yes, we provide brand-new original factory units with stock ready for shipping.
