Overview

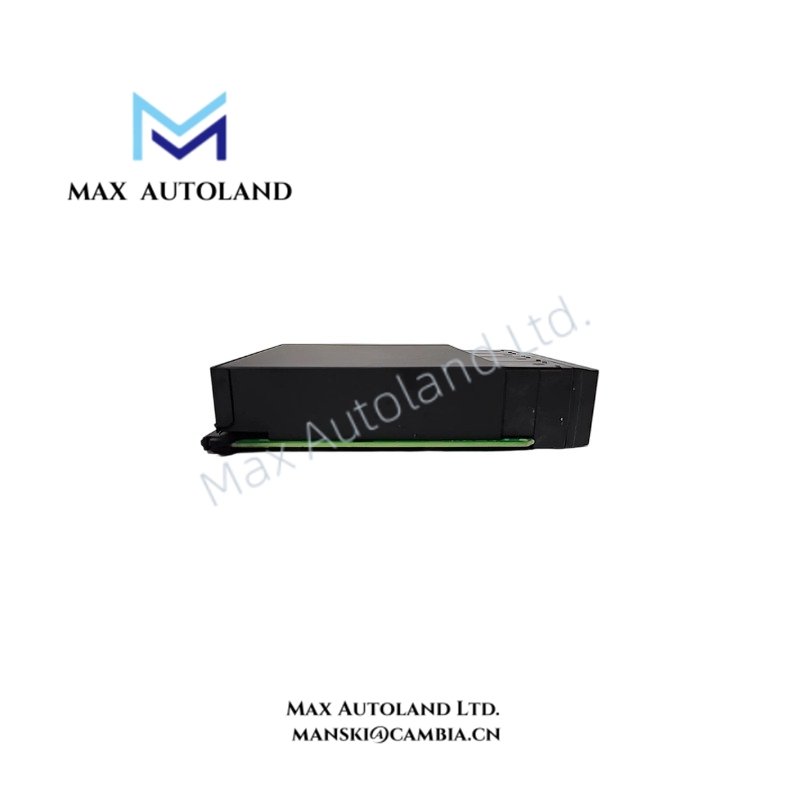

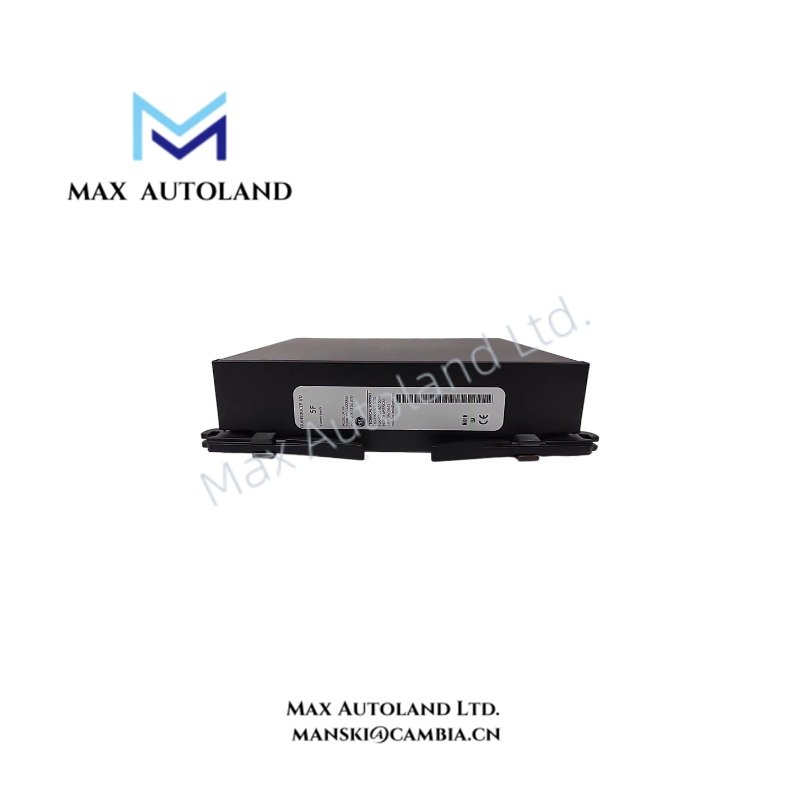

The GE Multilin UR5FH, also cataloged as the UR5FH Transducer I/O Module, operates as a dedicated hardware component for analog signal acquisition and transducer interface functions within GE Multilin Universal Relay platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | UR5FH |
| Brand | GE Multilin |
| Origin | USA |
| Product Type | Transducer Input/Output Module |
| Application Platform | GE Multilin Universal Relay (UR) Series |
| Interface Type | Analog Transducer I/O |
| Signal Compatibility | 4-20 mA, 0-1 mA, voltage input signals depending on ordering configuration |
| Power Supply Voltage | 24 VDC |
| Isolation | Galvanic isolation between channels and power supply domains |
| A/D Conversion | High-resolution analog signal acquisition |
| Communication Interface | Modbus RTU, Modbus TCP, DNP3, IEC 61850 through UR chassis communication system |
| Dimensions | Standard GE Multilin UR plug-in module format; approx. 96 x 96 mm faceplate area |
| Weight | Not specified by manufacturer |
| Operating Temp | -40 deg C to +60 deg C |
| Power Consumption | Supplied through UR chassis backplane; exact consumption depends on configuration |
| Mounting Method | UR chassis slot mounting |
Backplane Bus Communication and I/O Density Scaling
The GE Multilin UR5FH integrates with the UR platform backplane architecture for data exchange between the transducer interface circuitry and the relay processor. Therefore, the module supports centralized measurement mapping for SCADA, HMI, and control system applications.
The UR platform uses modular I/O density scaling, allowing system designers to combine different input and output modules within the same chassis. In addition, firmware flash compatibility maintains configuration consistency between supported UR relay devices and installed hardware modules.
The module processes analog transducer signals through isolated input channels, which reduces electrical interference during measurement acquisition. Furthermore, galvanic separation between signal paths and power circuits helps minimize ground loop effects in industrial installations.
Frequently Asked Questions
Q: Does the GE Multilin UR5FH support direct connection to standard analog transducers?
A: Yes. The UR5FH provides analog transducer interfaces for signals such as 4-20 mA, 0-1 mA, or voltage inputs according to the specific ordering configuration.
Q: Can the UR5FH operate as an independent relay controller module?
A: No. The UR5FH functions as an expansion I/O module and requires installation in a compatible GE Multilin Universal Relay chassis with a main processor module.
Q: Does the UR5FH provide electrical isolation between input channels?
A: Yes. The module design includes galvanic isolation between individual channels and the main power supply domain to support industrial signal measurement requirements.
Field Installation Guidelines
- Install the UR5FH only in compatible GE Multilin Universal Relay chassis slots.
- Verify module configuration against the relay hardware matrix before installation.
- Use shielded cables for analog transducer connections to reduce electromagnetic interference.
- Connect cable shields according to site grounding standards and avoid creating multiple grounding points.
- Separate analog signal wiring from high-voltage power cables and switching circuits.
- Confirm terminal wiring polarity before applying 24 VDC auxiliary power.
- Perform signal verification after installation to confirm correct scaling, channel assignment, and relay measurement values.
