Overview

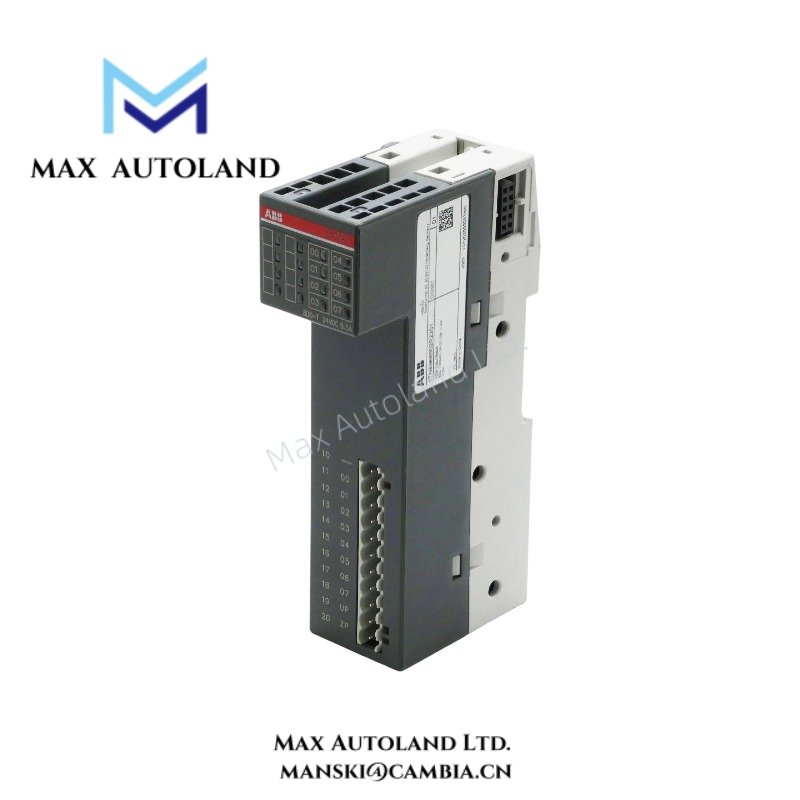

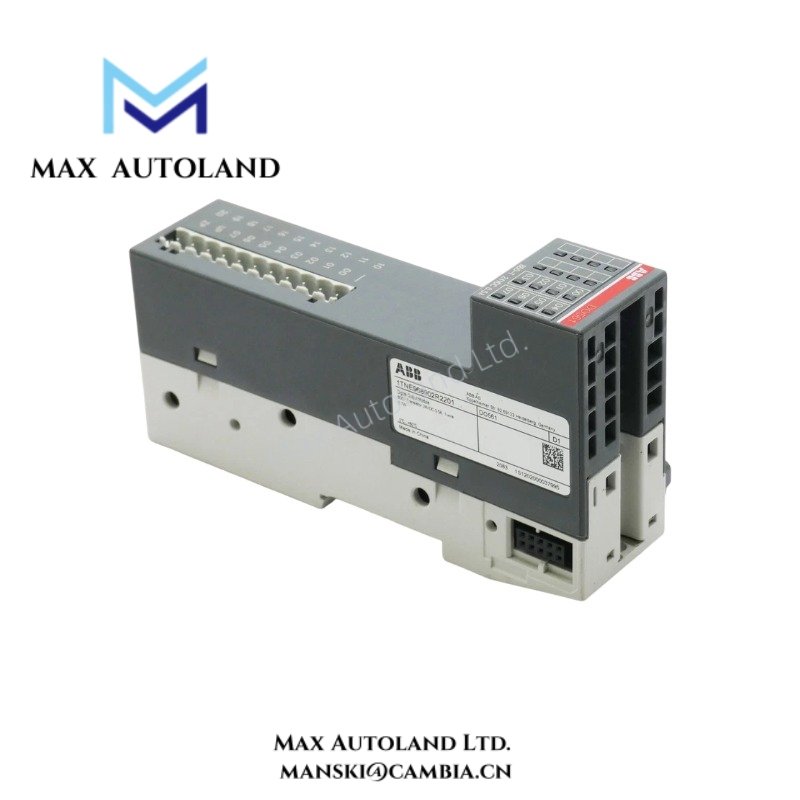

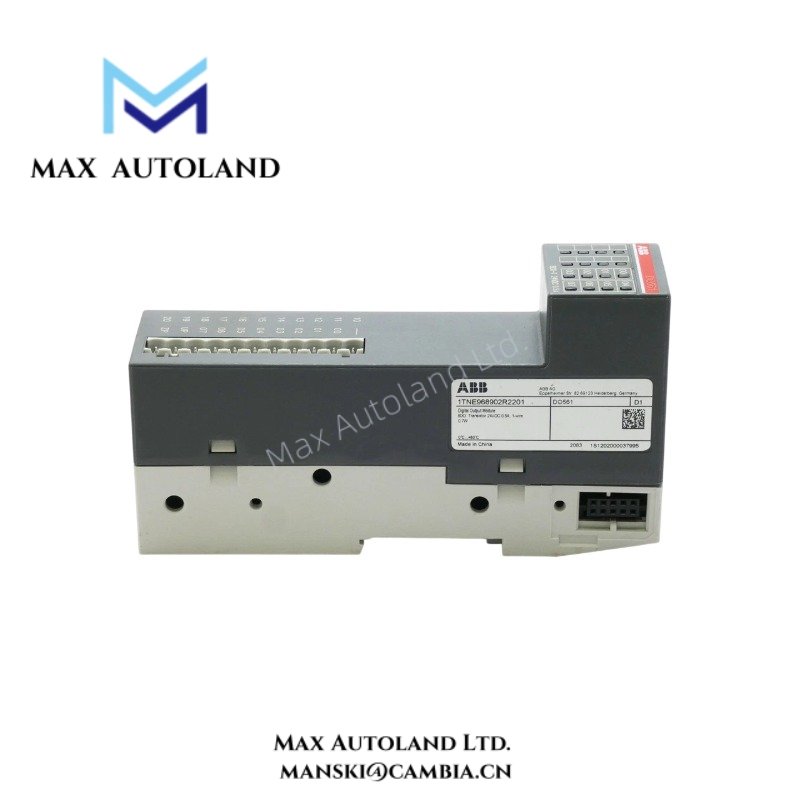

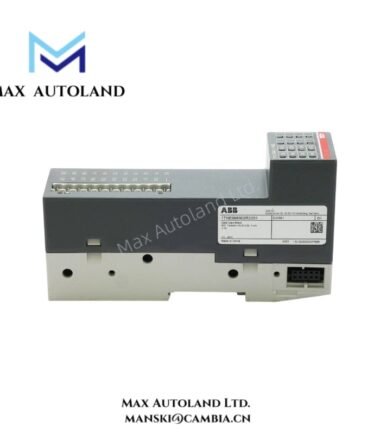

The ABB DO561 1TNE968902R2201 serves as the primary DO561 Digital Output Module utilized to execute discrete output signal switching across ABB Advant OCS and 800xA platforms. The module receives cyclic control commands from the controller through the system backplane and transfers digital output states to connected field devices according to the configured application program and I/O update cycle.
Suffix Breakdown & Model Matrix
The supplied documentation identifies DO561 1TNE968902R2201 as a complete catalog designation. No official suffix matrix or configurable ordering structure is specified in the referenced material.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DO561 1TNE968902R2201 |
| Brand | ABB |
| Product Type | Digital Output Module |
| System Compatibility | ABB Advant OCS, ABB 800xA |
| Signal Type | Digital Outputs |
| Output Function | Discrete Field Device Control |
| Communication | ABB Distributed I/O Backplane |
| Configuration Method | ABB Engineering Tools |
| Diagnostics | Output and Module Status Monitoring |
| Origin | Sweden |
| Weight | Not specified in supplied documentation |
| Dimensions | Not specified in supplied documentation |
| Operating Temp | Not specified in supplied documentation |
| Power Consumption | Not specified in supplied documentation |
Backplane Bus Communication Architecture
The DO561 exchanges process data through the ABB distributed I/O backplane. First, the controller executes application logic and generates output commands. Next, the communication system transfers output states to the module during scheduled scan cycles. The module then updates the corresponding field output channels according to the configured control strategy. Furthermore, ABB engineering tools manage addressing, diagnostics, and hardware configuration through predefined module definitions. As a result, the controller and output channels maintain synchronized operation throughout the control cycle.
Frequently Asked Questions
Q: How does the DO561 communicate with the controller?
A: The module communicates through the ABB distributed I/O backplane. The controller sends output data during cyclic scan execution, and the module updates field outputs accordingly.
Q: Can the DO561 support online replacement?
A: Replacement capability depends on the controller platform, cabinet architecture, and maintenance procedures. Therefore, technicians should follow ABB installation and service documentation before removing or inserting the module.
Q: What inspections should technicians perform before commissioning?
A: Technicians should verify output channel assignments, field wiring continuity, terminal identification, grounding connections, controller diagnostics, and application configuration before enabling outputs.
Field Installation Guidelines
- Install the module in the rack position specified by the project hardware configuration.
- Before energizing the system, verify that the module catalog number matches the engineering database.
- Route output wiring separately from analog instrumentation and communication cables.
- Use conductor markers and terminal labels to maintain channel identification.
- In addition, connect shields and cabinet grounding points according to facility electrical standards.
- Verify terminal assignments before connecting field loads.
- Avoid routing output conductors in parallel with high-current motor feeders or drive output cables.
- During startup, validate output operation through controller diagnostics and functional testing procedures.
- Finally, inspect field terminations periodically for loose conductors, corrosion, or mechanical damage.
