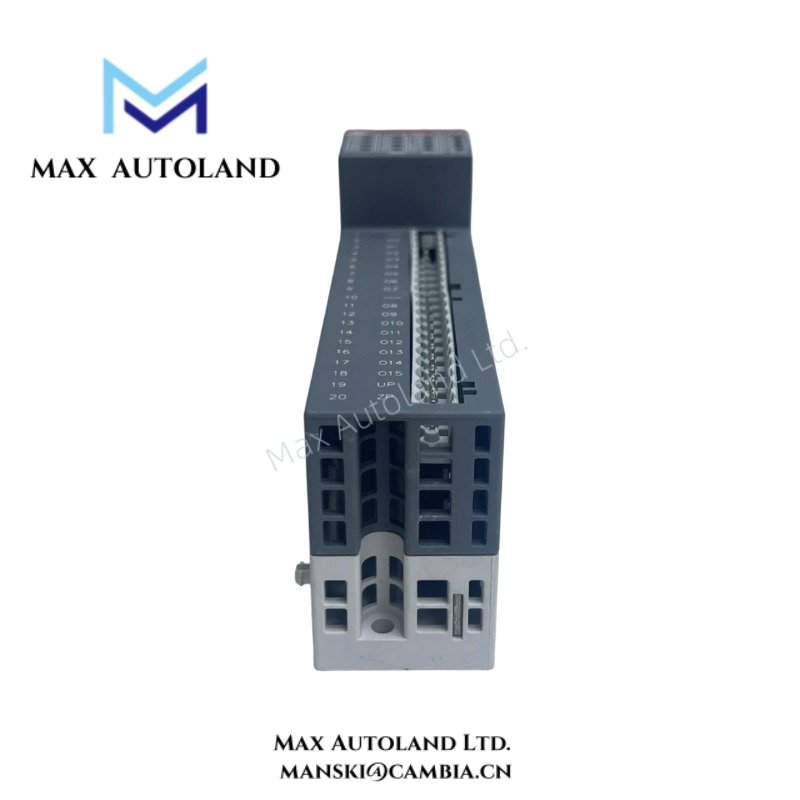

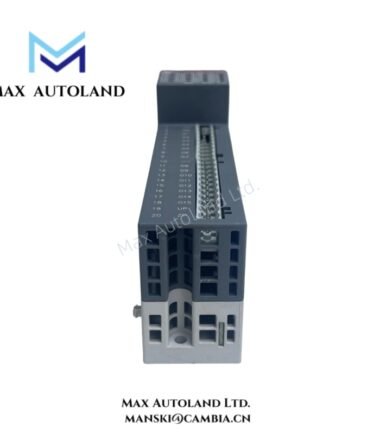

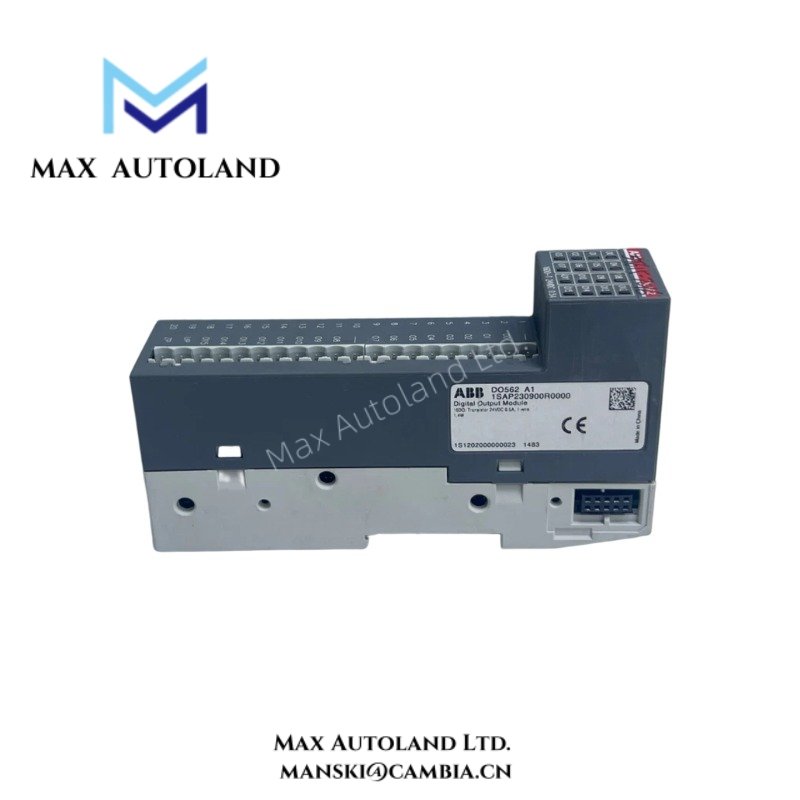

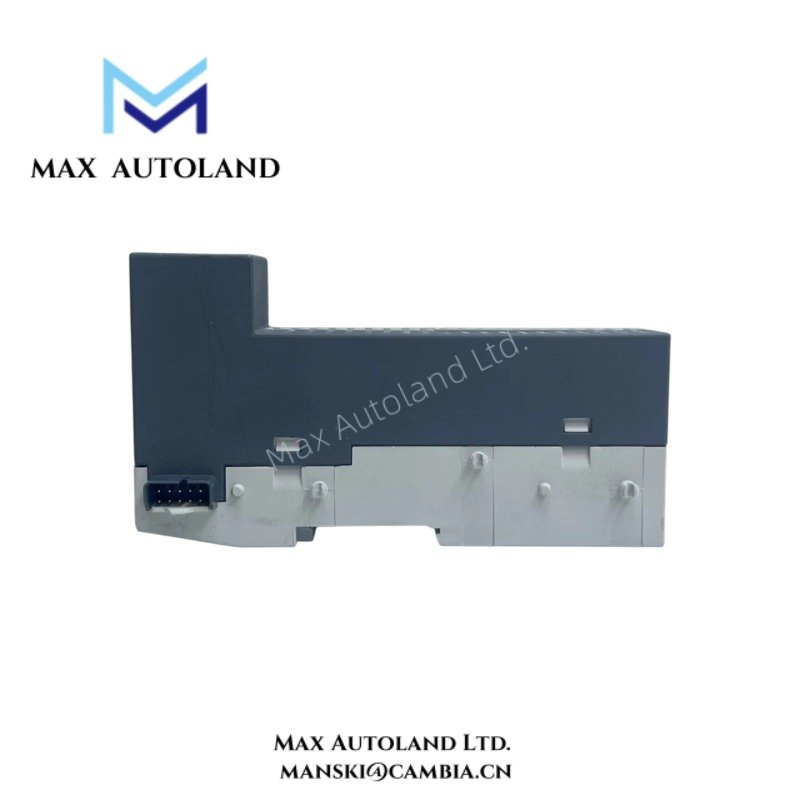

DO562 1SAP230900R0000 ABB Advant OCS/800xA Digital output module

Overview

The ABB DO562 1SAP230900R0000, also cataloged as the DO562 Digital Output Module, operates as a dedicated hardware component for digital signal switching within ABB Advant OCS and 800xA control systems. The module receives output commands from the controller through the distributed I/O infrastructure and transfers discrete control signals to field-connected actuators, relays, and interface circuits according to configured logic execution cycles.

Hardware Specifications

I/O Density Scaling and System Expansion

The DO562 supports modular I/O expansion through the ABB distributed automation architecture. As system requirements increase, engineers can add additional output modules within the supported rack configuration without modifying the fundamental controller structure. Consequently, the control platform maintains consistent output mapping while simplifying channel allocation and maintenance planning. Furthermore, engineering software manages addressing and configuration parameters through predefined hardware objects and project databases.

Frequently Asked Questions

Q: How does the DO562 receive output commands from the controller?
A: The controller executes application logic and then transfers output data through the ABB backplane communication system. The module subsequently updates the assigned output channels according to the configured scan cycle.

Q: Can technicians replace the DO562 while the control system remains energized?
A: Replacement procedures depend on the specific controller platform, cabinet design, and maintenance procedures. Therefore, follow ABB service documentation and site safety requirements before inserting or removing the module.

Q: What should engineers verify during commissioning?
A: Engineers should verify channel assignments, terminal wiring, output load characteristics, grounding practices, controller diagnostics, and application configuration before enabling field outputs.

Field Installation Guidelines

• Install the module in the designated slot defined by the project hardware configuration.
• First verify that the rack, backplane connector, and module identification correspond to the engineering database.
• Route digital output wiring separately from analog measurement circuits whenever possible.
• Use properly identified conductors to simplify commissioning and maintenance activities.
• Connect cable shields according to facility grounding standards and cabinet bonding requirements.
• Moreover, verify terminal numbers before connecting field devices to prevent channel mapping errors.
• Avoid parallel routing near variable frequency drive output cables and other high-energy conductors.
• During startup, confirm output operation using approved diagnostic tools and functional testing procedures.
• Finally, inspect terminal connections periodically for loosening, corrosion, or conductor damage.
