Overview

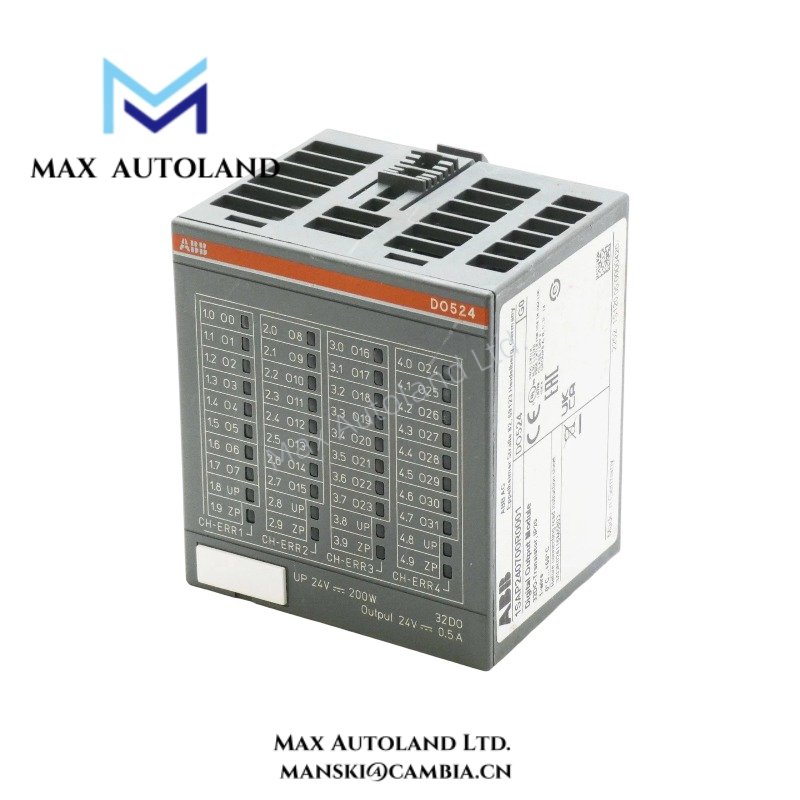

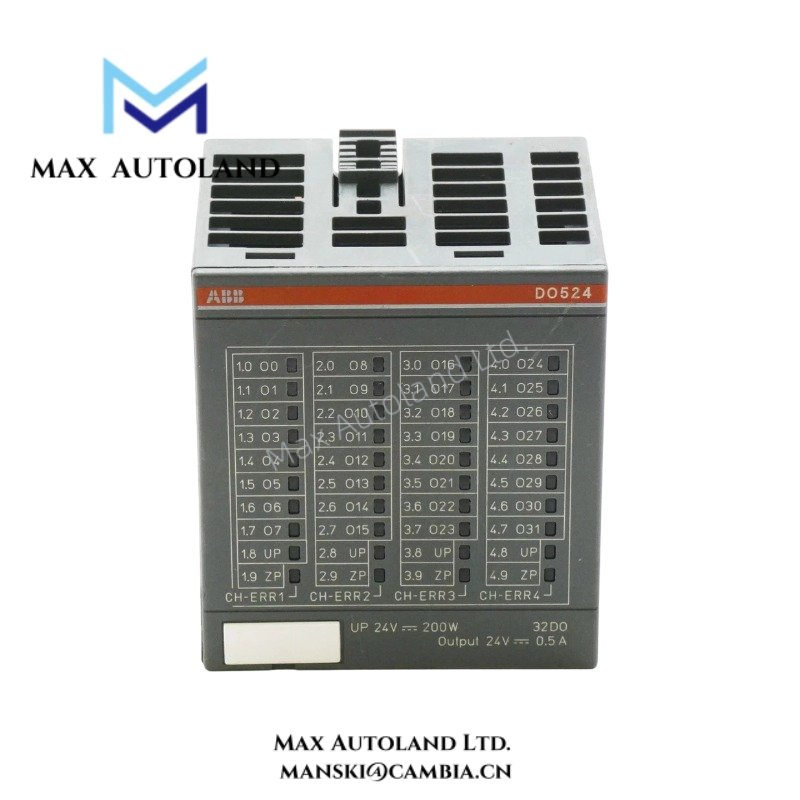

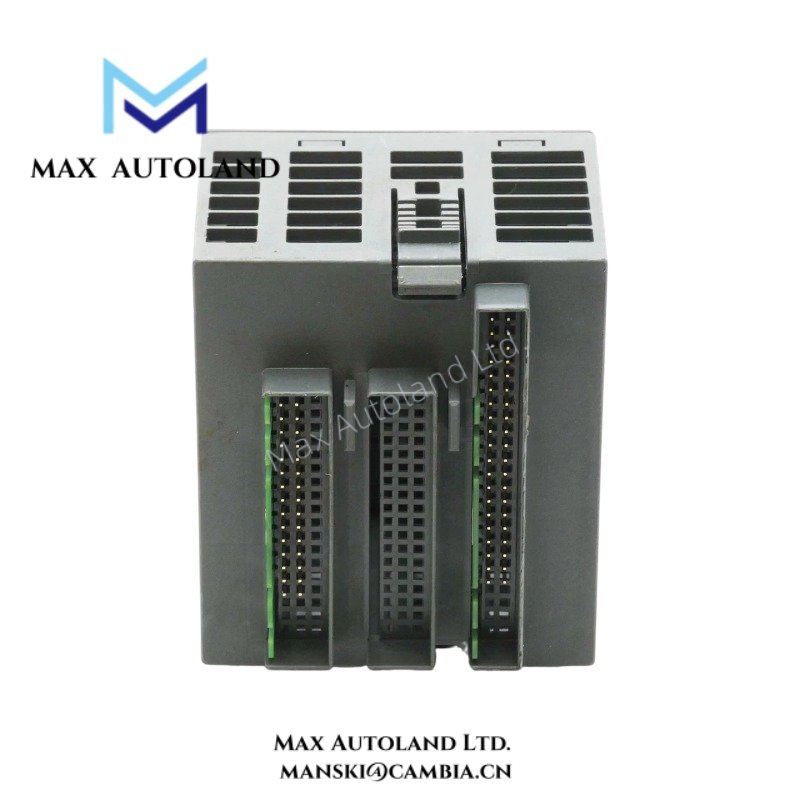

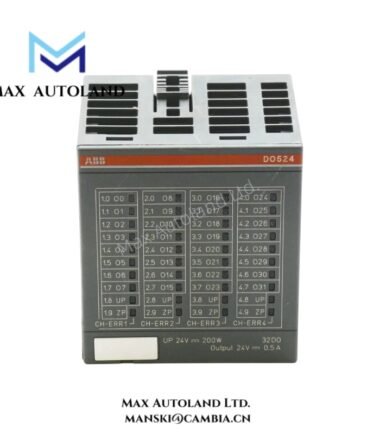

Configured for digital signal switching and field actuator control in ABB Advant OCS and 800xA systems, the ABB DO524 1SAP240700R0001 (DO524 Digital Output Module) provides direct electrical execution. The module transfers controller output commands through the distributed I/O architecture and drives discrete field devices via isolated output channels. It interfaces with the controller backplane for cyclic process data exchange and output status supervision.
Suffix Breakdown & Model Matrix
The designation DO524 1SAP240700R0001 identifies a fixed ABB catalog number. The available source material does not define additional suffix variants or configurable ordering matrices; therefore, no further breakdown applies.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DO524 1SAP240700R0001 |
| Brand | ABB |
| Origin | ABB Automation Products |
| Product Type | Digital Output Module |
| System Compatibility | ABB Advant OCS, ABB 800xA |
| Output Function | Discrete digital output processing |
| I/O Interface | Distributed I/O backplane communication |
| Mounting Method | DIN rail installation |
| Weight | Not specified in source documentation |
| Dimensions | Not specified in source documentation |
| Operating Temp | Refer to ABB product documentation |
| Power Consumption | Refer to ABB product documentation |
| Signal Execution | Controller-to-field output switching |
| Configuration | ABB engineering and commissioning tools |
I/O Density Scaling and System Integration
The DO524 supports distributed output expansion within ABB Advant OCS and 800xA architectures. As system requirements increase, engineers can add additional output modules to extend the available channel count while maintaining centralized controller management. Furthermore, the backplane exchanges cyclic output data between the controller and installed I/O modules, allowing consistent output execution across configured process tasks. Consequently, the control application scales without changing the basic communication structure.
Frequently Asked Questions
Q: Does the DO524 support hot replacement during operation?
A: Hot-swap capability depends on the controller configuration, power architecture, and site maintenance procedures. Follow ABB installation and service instructions before inserting or removing the module.
Q: How does the module receive output commands?
A: The controller transmits cyclic process data through the distributed I/O backplane. The module then converts command data into corresponding digital output states.
Q: What checks should technicians perform during commissioning?
A: Verify terminal assignments, output channel mapping, field wiring continuity, supply voltage availability, and controller diagnostics before enabling output channels.
Field Installation Guidelines
- First, mount the module securely on the designated DIN rail assembly.
- Next, separate output wiring from analog instrumentation circuits to reduce electrical interference.
- Route field conductors according to local electrical installation standards.
- In addition, identify every output channel before connecting loads or interposing relays.
- Ground cable shields according to the plant grounding specification where shielded wiring is required.
- Avoid parallel routing alongside variable frequency drive output cables whenever possible.
- Then, verify output channel assignments against the controller configuration database.
- Finally, validate output operation and signal integrity using appropriate test equipment before commissioning.
