Overview
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |

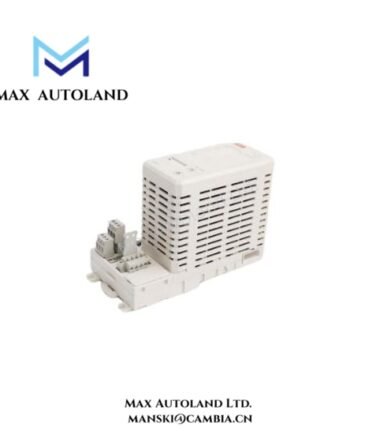

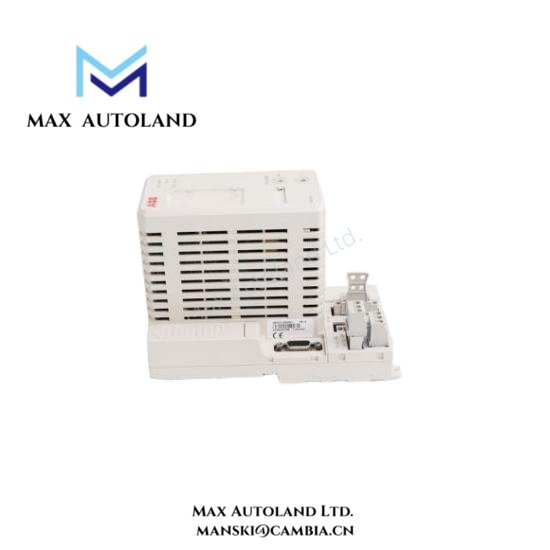

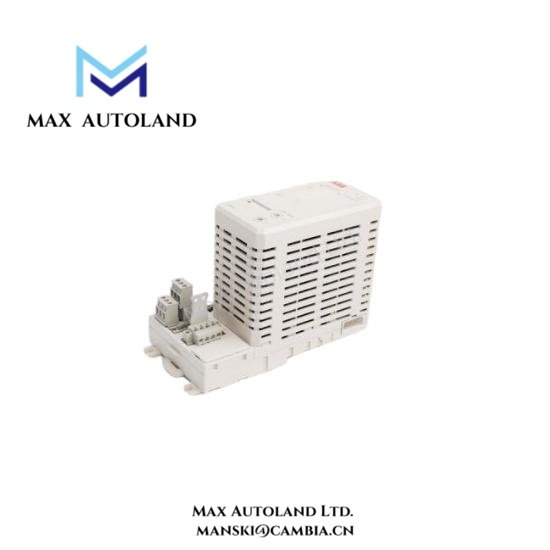

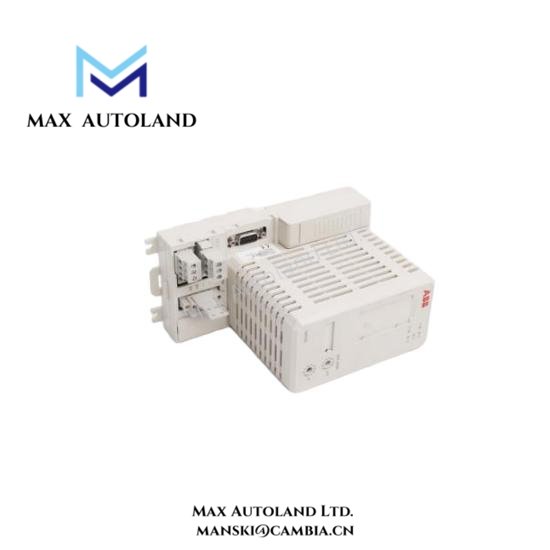

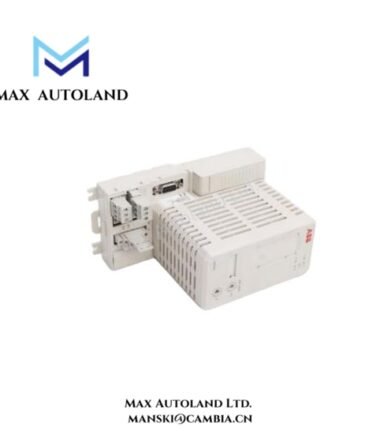

| Model / Part Number | CI820V1 / 3BSE025255R1 |
| Module Type | AF100 Redundant Fieldbus Communication Interface |
| System Compatibility | ABB S800 I/O, 800xA, Advant OCS |
| Function | Provides redundant AF100 fieldbus communication between controllers and field devices |
| Mounting Type | Rack-mounted in standard S800 I/O rack |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –40°C to +70°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Dimensions (W×H×D) | 122 mm × 170 mm × 54 mm |
| Weight | 0.6 kg |
| Environmental Rating | IP20 indoor use |
| Redundancy | Supports dual-channel AF100 communication for high availability |
| Diagnostics | Status LEDs and system interface for monitoring |
| Compliance | RoHS 2011/65/EU, WEEE Category 5 |
| Mechanical Robustness | Designed for vibration and industrial shock resistance |
| Scalability | Supports expansion of distributed control networks |
FAQ
Q1: Which systems are compatible with CI820V1?
The module integrates with ABB S800 I/O, 800xA, and Advant OCS for redundant AF100 fieldbus communication.
Q2: How does the redundancy function work?
CI820V1 provides dual AF100 channels, ensuring continuous communication even if one link fails.
Q3: What environmental conditions can this module operate under?
It operates from 0°C to +55°C with 5–95% non-condensing relative humidity.
Q4: How is the module mounted?
The interface is rack-mounted in standard ABB S800 I/O cabinets.
Q5: Does the CI820V1 support network expansion?
Yes, it allows scalable integration of additional field devices while maintaining high availability.
