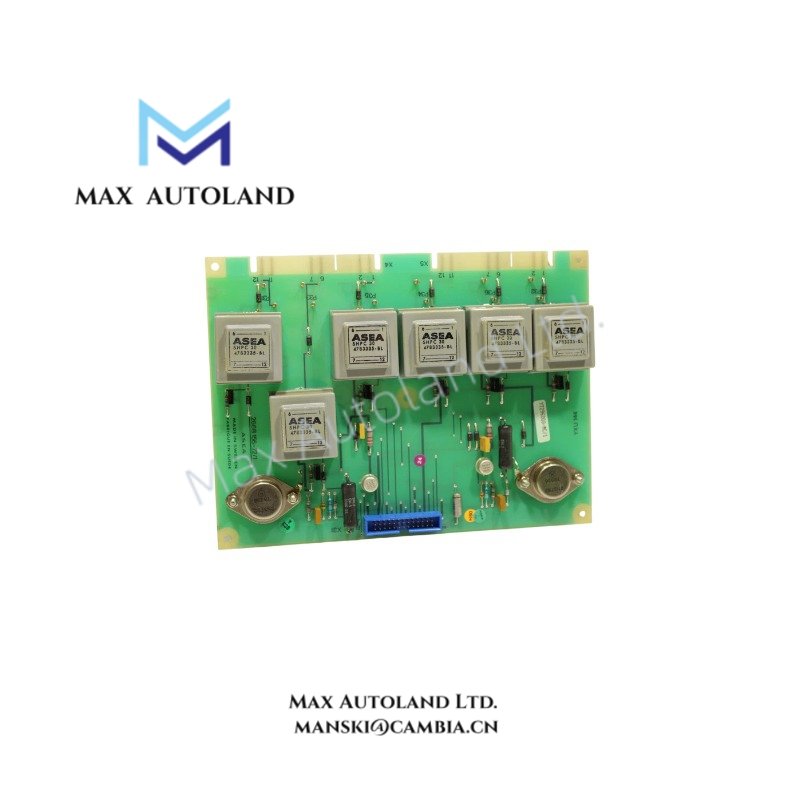

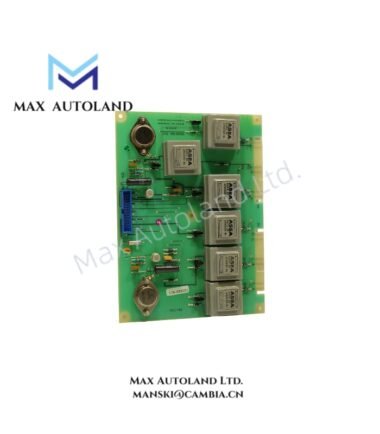

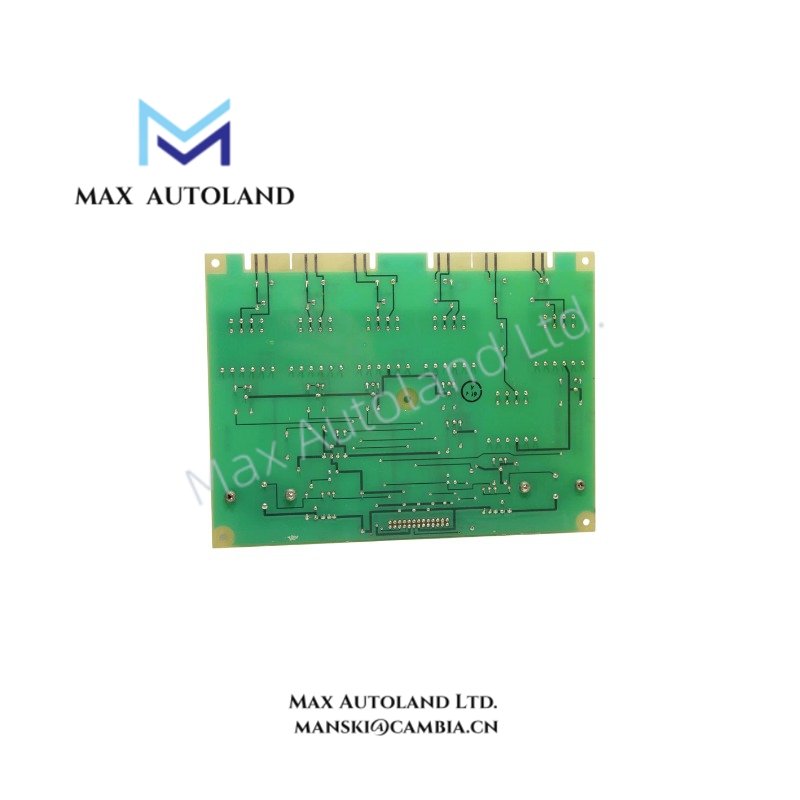

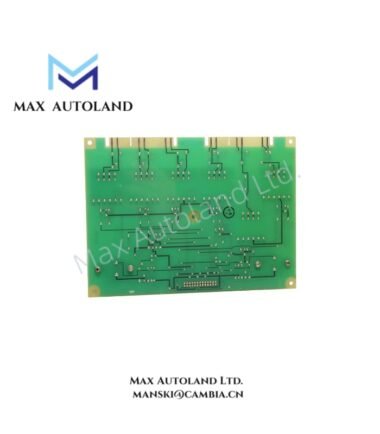

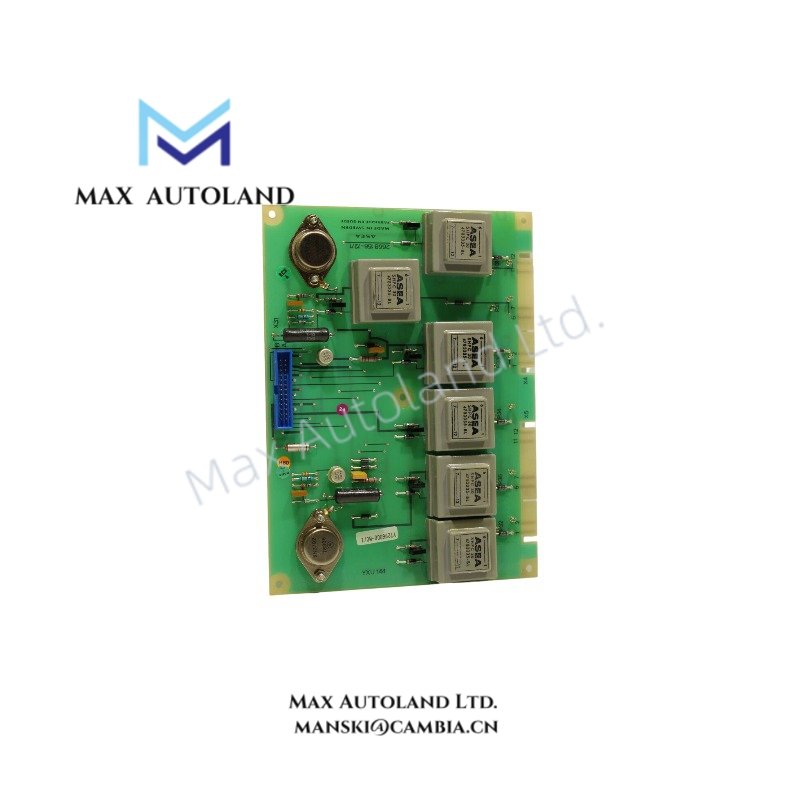

ABB YXU144 YT296000-MC Pulse Transformer Unit

Overview

Configured for pulse isolation and signal transfer in industrial control networks, the ABB YXU144​ (YT296000-MC/1​ Pulse Transformer Unit) provides direct electrical execution between control logic and power switching stages.

Hardware Specifications

Backplane Bus Communication Velocity Licensing

The YXU144 interfaces via ABB’s deterministic backplane bus architecture, enforcing licensed firmware profiles for signal timing compliance. Execution latency is fixed at sub-microsecond levels to maintain synchronization with higher-level controller scan cycles. The module requires matching firmware revision keys for integration into specific ABB AC/DC drive platforms.

Frequently Asked Questions

Q:​ Does the YXU144 support hot-swap replacement without system shutdown?

A:​ No. The unit must be installed or removed only during a confirmed power-down state to prevent transient coupling into the pulse transformer windings.

Q:​ What is the maximum allowable cable length between the YXU144 and the driven load interface?

A:​ Cabling should not exceed 30 m to maintain pulse integrity and minimize reflected wave interference on the isolated side.

Q:​ Is firmware cross-compatibility supported with other ABB pulse units?

A:​ Firmware compatibility is restricted to the designated YT296000-MC/1 series; loading incorrect firmware will disable pulse output functions.

Field Installation Guidelines

Mount the YXU144 on a flat, grounded DIN rail or panel section with adequate clearance for ventilation. Ensure shield termination at the entry point to the enclosure using a single-point ground method. Separate pulse transformer wiring from high-current AC feeders by at least 200 mm to reduce inductive coupling. Verify insulation resistance (> 20 MΩ at 500 VDC) before energizing the circuit.
