Overview

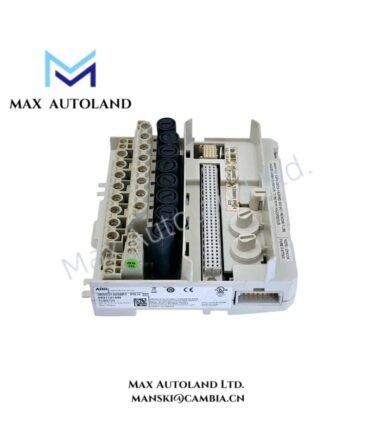

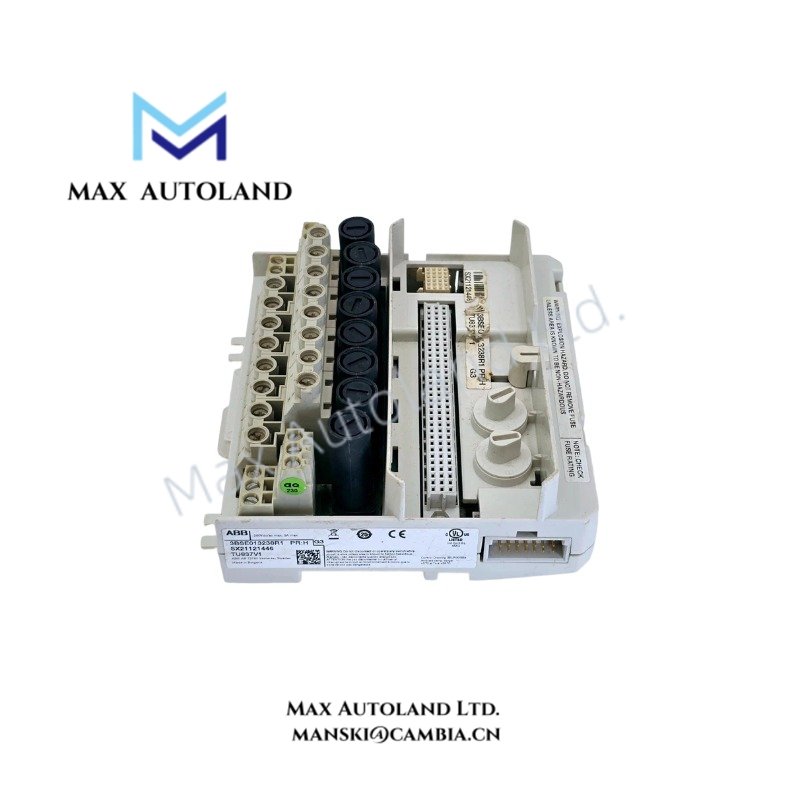

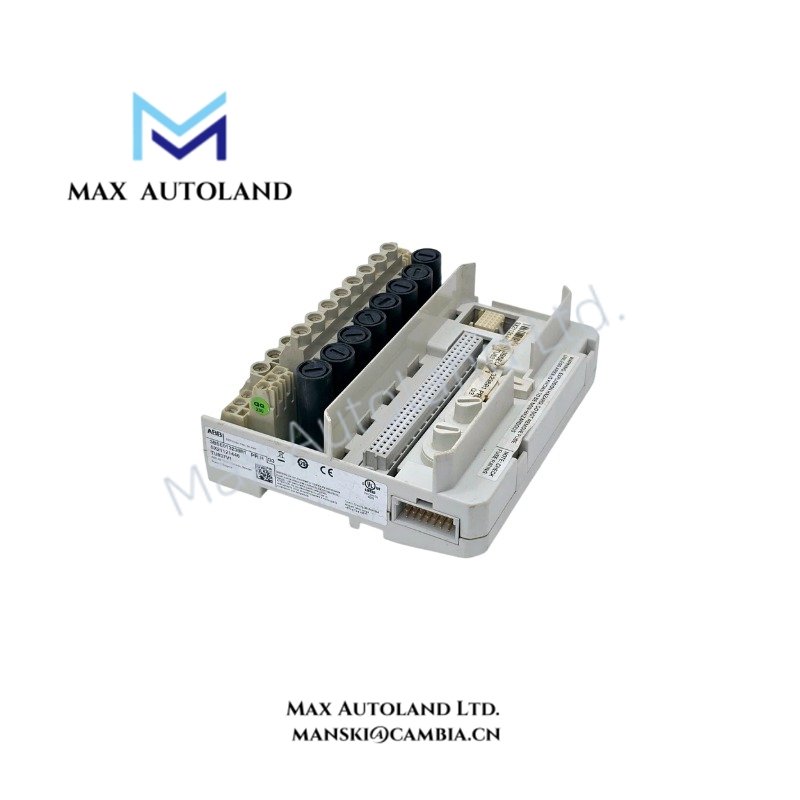

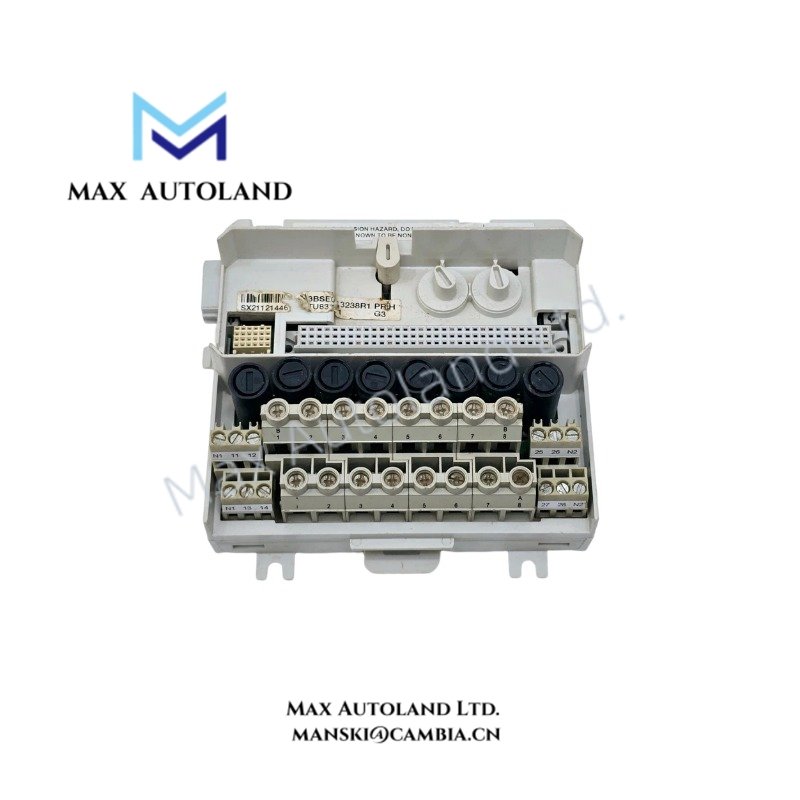

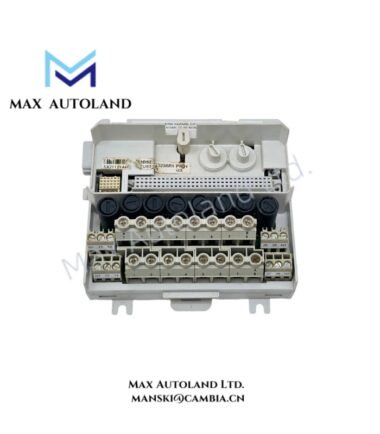

The ABB TU837V1, also cataloged as the TU837 Extended Module Termination Unit, operates as a dedicated hardware component for field signal termination and power distribution within the ABB S800 I/O System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ABB TU837 / TU837V1 |
| Brand | ABB |
| Origin | Sweden |
| Product Type | Module Termination Unit |
| System Compatibility | ABB S800 I/O System, System 800xA |
| Channel Configuration | 8 isolated channels |
| Maximum Rated Voltage | 250 V AC/DC |
| Maximum Rated Current | 3 A per channel |
| Fuse Type | Fast-acting glass tube fuse, 3.15 A, 5 x 20 mm |
| Signal Return Current | 10 A maximum per return group |
| ModuleBus Current Distribution | 1.5 A at 5 V, 1.5 A at 24 V |
| Dielectric Test Voltage | 2000 V AC |
| Protection Rating | IP20 according to IEC 60529 |
| Protection Class | Class I, earth protected |
| Signal Wire Size | Solid: 0.2 – 6 mm2; Stranded: 0.2 – 4 mm2 |
| Return Wire Size | Solid: 0.2 – 4 mm2; Stranded: 0.2 – 2.5 mm2 |
| Tightening Torque | 0.5 – 0.6 Nm |
| Weight | Approx. 0.26 kg – 0.37 kg |
| Dimensions | 126 mm x 64 mm x 110 mm |
| Operating Temp | Not specified in supplied data |
| Power Consumption | Passive MTU; no external power consumption |
Industrial Control Backplane and I/O Density Scaling
The TU837 provides a passive interface between field wiring and ABB S800 I/O modules. It distributes ModuleBus connections while maintaining the required mechanical alignment between the termination unit and the connected I/O module.
Furthermore, the unit supports I/O density scaling through eight isolated signal channels. Each channel contains individual fuse protection, which limits fault propagation between field circuits. The mechanical keying system provides 36 configuration combinations to prevent incorrect module installation.
The TU837 operates as a field termination component rather than an active processing device. Therefore, it does not execute control logic, firmware functions, or network communication tasks.
Frequently Asked Questions
Q: Does the ABB TU837 support hot-swapping of S800 I/O modules?
A: The TU837 allows I/O module replacement while field wiring remains connected. The installation procedure must follow ABB S800 system operating instructions and applicable safety requirements.
Q: Does the TU837 provide electrical isolation between channels?
A: Yes. The TU837 provides 8 individually isolated channels with separate fuse protection for field signal circuits.
Q: What protection function does the channel fuse provide?
A: Each channel uses a 3.15 A fast-acting fuse to protect the connected field circuit from excessive current conditions.
Field Installation Guidelines
- Install the TU837 on a compatible DIN rail position within the ABB S800 I/O assembly.
- Verify that the mechanical key configuration matches the intended I/O module before installation.
- Connect field wiring according to the terminal identification and approved ABB system documentation.
- Keep signal wiring separated from high-current power conductors to reduce electrical interference.
- Apply the specified terminal tightening torque to maintain stable electrical connections.
- Connect protective earth according to the system grounding design and applicable installation standards.
- Inspect fuse ratings before commissioning to ensure compatibility with the connected field devices.
